Chapter 3—JavaScript Components

The Component Store contains over 40 ready-made components for use in Remote Forms and the JavaScript Client. The components are arranged in functional groups in the Component Store, including a group for Buttons, Containers, Entry Fields, and so on. The JavaScript components are listed in this chapter in alphabetical order, starting with the Activity Control, and are listed in the table below in their respective groups.

You can create your own JavaScript components using JavaScript and C++: see the JavaScript Component SDK online doc which has a tutorial and component reference. Alternatively, you can create your own custom JavaScript components, defined using JSON, which will appear in the JSON Components group in the Component Store: these are described in the JSON Components chapter.

Example Apps and Code

There is an example app for most of the JavaScript components under the Samples option in the Hub in the Studio Browser. Open these apps to examine the remote forms and look at the code behind each component: you can double-click on a JavaScript component in design mode to see its code methods in the method editor.

In addition, the Applets option in the Hub in the Studio Browser has several sample web apps that use many of the JavaScript components, including a Contacts app, a Holidays app, and a Webshop app which has a product catalog and a prototype shopping cart.

The same example apps are featured in the JavaScript Apps Gallery on the Omnis website, available here: www.omnis.net/platform/#jsgallery

or you can use the following shortcut to open the Omnis Components gallery: tinyurl.com/jsgallery11

JavaScript Components

The following components are available in the Component Store, arranged here in their respective groups.

Group	Icon	Name	Description
Favorites		See Favorites	Contains any controls marked as Favorite
Buttons		Button Control	Standard pushbutton which reacts to clicks
		Check Box Control	Check box for on/off values
		Floating Action Button	A round button that pops up a list of actions when tapped or hovered over
		Radio Button Group	Displays a group of radio buttons for exclusive selection

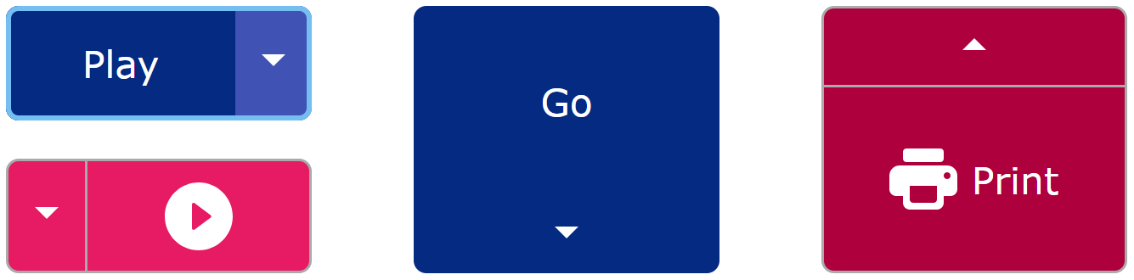

		Split Button	A button with a droplist of alternative options
		Switch Control	Allows on/off selection; you can specify an icon for on/off state
		Trans Button Control	Interactive button with alternate hover image
Containers		Paged Pane	Can contain fields & other objects on multiple panes
		Scroll Box	Allows you to group other controls with the option to display a scroll bar if the content does not fit
		Tab Pane	A compound object containing a Tab bar and Paged pane
Entry Fields		Entry Field	Standard edit field for data entry or display
		Rich Text Editor	Rich text editor allowing end users to edit and format text
Labels		Label Object	Basic label object
Lists		Combo Box Control	Field combining entry box and droplist
		Complex Grid	Grid which can display all types of data and formatting
		Data Grid Control	Simple grid for text and numerical data display

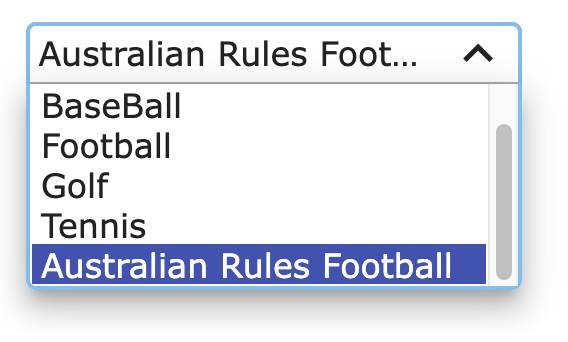

		Droplist Control	List that drops down when clicked
		List Control	Standard list field for displaying list variable data
		Tile Grid	Displays a scrollable grid of tiles which can be configured to show images, text and buttons
		Tree List Control	List for displaying hierarchical data or list of options
Media		Camera Control	Allows the end user to capture images, scan QR codes or barcodes
		File Control	Allows end users to upload or download files
		Html Object	Object to display HTML content
		Markdown Object	Object to display Markdown content
		Picture Control	Standard field for displaying images
		Video Player	Plays a YouTube or other hosted video
Menus		Popup Menu Control	A menu that pops up when clicked
Native		Native List	List control with platform dependent appearance
		Native Slider	Slider control with platform dependent appearance
		Native Switch	Switch control with platform dependent appearance
Navigation		Html Link	Control opens an external link or jumps to another control
Navigation		Hyperlink Control	List containing hyperlink style options
		Hyperlink Control	List containing hyperlink style options
		Navigation Bar Control	Navigation bar with page selection

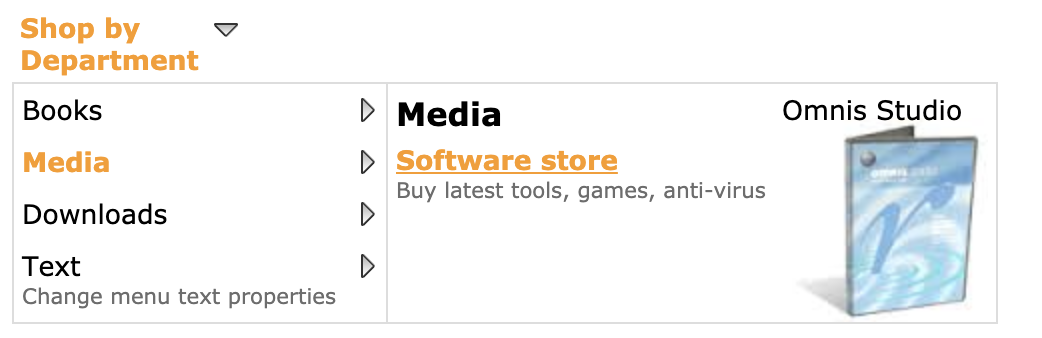

		Navigation Menu Object	Dropdown menu with hierarchical options
		Page Selector	Allows selection of page pane using touch
		Segmented Bar	Navigation control with different buttons or “segments”
		Tab Bar Control	Multiple tabs to control selection of page pane

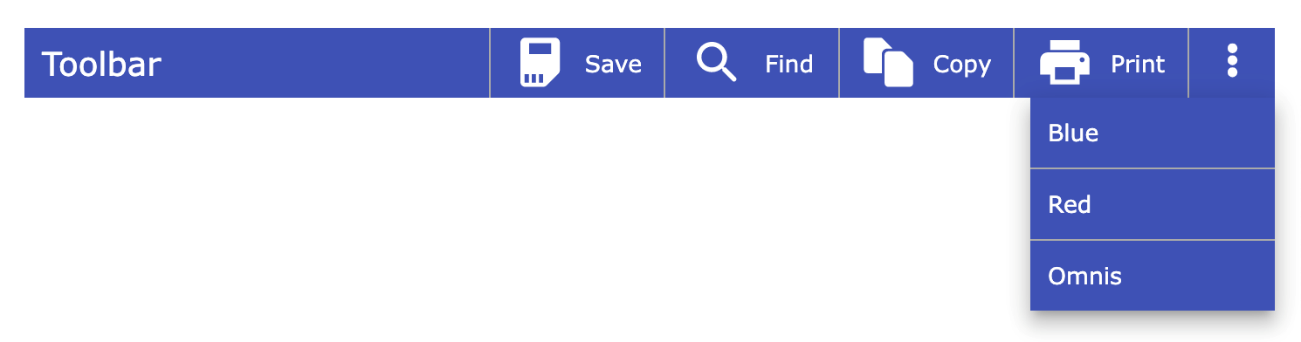

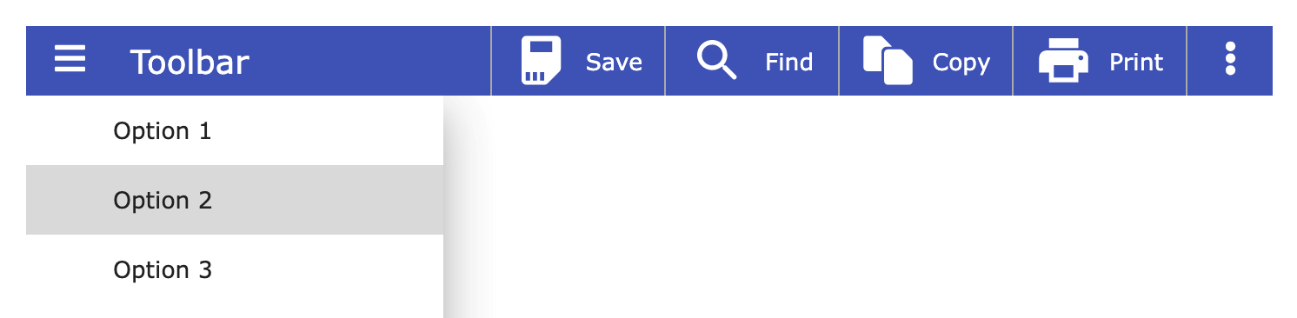

		Toolbar Control	Toolbar with custom buttons (icons and text), auto overflow and optional side menu
Other		Activity Control	Animated image to display during a long process or Omnis Server activity
		Color Picker	Allows the end user to select a color from a color palette, or RGB, HSL, or HEX number
		Date Picker Control	Date picker with touch selection
		Device Control	Allows access to hardware and services on a mobile device using the JS wrapper
		Map Control	Displays a Google map for specified location(s)
		Progress Bar Control	Shows progress of server process or calculation
		Slider Control	Slider component for setting values
		Timer Control	Timer object triggers an event at a specified interval
Shapes		Background Shape	Object you can set to Rectangle, Line, Triangle, or Image
Subforms		Subform Control	Allows you to display another remote form class as a subform in the main form (or you can create a subform set)
		Subformset Panel	Displays a number of exapandable subforms in a vertical panel
Visualization		Bar Chart Control	Displays a bar chart based on a list of values
		Chart Control	Displays different chart types including Line, Bar, Radar, Pie, Doughnut, Polar Area, Scatter and Bubble

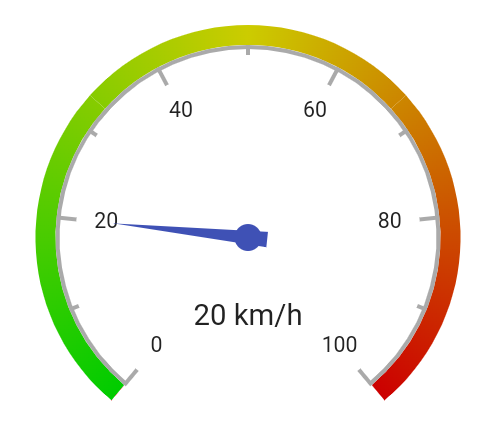

		Gauge Control	Displays numerical values on a circular or linear scale
		Pie Chart Control	Displays a pie chart based on a list of values

Favorites

The Favorites group contains any components that you have marked as ‘Favorite’; it is shown initially with a Star icon and grayed out. To add a favorite, Right-click on the icon for the component in a sub-menu and select the Favorite option. Adding components to the Favorites group makes it easier or quicker for you to select any controls that you use constantly. To remove a component from the Favorites group, right-click on the component in its original group and deselect the Favorite option.

Creating JavaScript Components

To create or add a JavaScript Component to a remote form, you need to open the Remote form in design mode. The Component Store will open automatically docked to the left side of the Remote form editor. If for some reason the Component Store is hidden (maybe it is undocked and behind another window), you can bring it to the top, by pressing the CStore button on the main Omnis toolbar, or by pressing the F3 key on Windows or Cmnd-3 on macOS. The following screenshot shows a Remote form in design mode, and the Entry fields group in the Component Store.

You can configure the appearance of the Component Store by Right-clicking on it and selecting various text options from the context menu. You can show or hide the text for the group or components, and you can select 1 or 2 column mode. You can also set the Docking mode, either Auto, Left, Right, or No docking.

Layout breakpoints

Before adding any JavaScript components to your remote form, you may want to change the current Layout Breakpoint or add a new one. A new remote form has two breakpoints 320 and 768 pixels, and you are advised to add components to the larger breakpoint first and then rearrange or resize the components on the smaller breakpoint (the 768 breakpoint is selected by default). You can Right-click on the background of a remote form and choose Copy Layout From Breakpoint to copy the position and size of components from one breakpoint to the current breakpoint.

Adding a new JavaScript component

To select a component, and add it to your Remote Form, you can do one of the following:

• Click on the main group icon to open the sub-menu popup, then click and drag a component icon from the sub-menu, and drop it onto the form or window; as you drag the component out of the Component Store, the outline of the component is shown allowing you to place it precisely in the form or window.

• Click and drag the icon shown in the main group to create a component of that type; for example, you can drag the Button icon from the Buttons group to create a button, which is initially the default icon in that group (note the group icon/default component will change as you select different components).

• Double-click an icon in the main group or any sub-menu popup to add a component of that type; in this case, the component is added to the center of the form or window (double-clicking is not supported for report classes).

• Press Return to add the currently selected component to the design window (not supported for report classes).

Alternatively, you can use the keyboard to select a component:

• To use the keyboard, press F3 to put the focus on the Component Store, use the Up or Down arrow keys to select a main group, press the Space key to open the sub-menu popup for the group, then use the Arrow keys to select a component, and press the Return key to add the component to the center of the form or window; you can use the Esc key to deselect/close a sub-menu popup.

The most recently selected group is highlighted in a color, while the icon for the most recently chosen component from any sub-menu popup is shown as the initial/default icon for the group; therefore, as you select different components from different groups, the initial or default icons will change. For example, if you previously chose a Combo box from the Lists group, the Combo box icon is shown in the main Lists group, and you can then drag or double-click the Combo box icon from the Lists group without opening the sub-menu to create a Combo box in your form.

Remote Form Object Limit

You cannot place an unlimited number of objects on a Remote form class. The object limit is 8191 for a Remote form, including objects on subforms, although in practice the limit is likely to be less due to platform limitations.

Copying Components

In design mode, you can use the standard Copy/Paste menu options in the Edit menu, or Ctrl-C and Ctrl-V keyboard options, to copy and paste a component on the same form. Alternatively, you can hold down the Ctrl key on Windows or the Alt/Option key on macOS, then click and drag a component to a new position on the form to make a copy of the component.

You can also drag a component from one remote form and drop it onto another remote form to make a copy of a component (for forms with the old kLayoutTypeScreen layout type, the forms must be set to the same value of $screensize to copy objects in this way).

Component Properties

You can set the properties for the component using the Property Manager; if the Property Manager is hidden, press F6 on Windows or Cmnd-6 on macOS to open it or bring it to the top. The following screen shot shows the Pie Chart example app (available in the Hub under Samples), with the JavaScript Pie Chart component selected; the Property Manager on the right shows the properties of the currently selected object.

Dataname for JavaScript Controls

The variable specified in the Dataname ($dataname) property of a JavaScript component must be an instance variable, or in some cases a column in a row instance variable in the form VarName.ColumnName. The Property Manager will display an error message if you try to assign an invalid $dataname property. (This applies to $dataname as well as other similar properties such as $listname which require a variable.)

You can create variables in the Variable panel of the Method Editor (click on Methods in the Design bar at the top of a remote form to open the Method editor), or you can type the name of a variable into the Dataname field in the Property Manager, press the Return key and define the variable in the 'Create Variable' dialog. See Variables for more information about declaring and naming variables (i.e. variables cannot have the same name as internal method names or function names).

Naming JavaScript Controls

When you create a component in your remote form, a name is generated automatically and assigned to the $name property of the component (shown at the top of the Property Manager). This is usually in the format <remoteformname>_<component-type>_<number>, such as ‘rftest_edit_1001’ for an edit control on a remote form called rftest. However, you can enter your own name for a component which may better describe the object within the context of your form; for example, an edit field to allow the end user to enter their first name could be named Firstname. You can change the Name ($name) of a component by clicking on the Pencil icon next to the Name at the top of the Property Manager, or by editing the name in the $name property under the General tab in the Property Manager.

The name you assign to an object does not have to conform to any convention other than any conventions you may like to use in your forms or the application to identify different objects. However, the name of a component (the value of $name) is used in the Omnis notation and throughout your library to refer to the object. Therefore, you should not use spaces and try to use alphanumeric characters only for object names to avoid any possible conflicts in your code. For example, an object name should not include the dollar sign ($) since this would cause a conflict when you reference the object using the Omnis notation which prefixes property and method names with the dollar sign.

Numeric Object Names

The Property Manager does not allow all numeric names to be assigned to $name. The Property Manager validates the value assigned to $name for remote form objects (as well as remote menu, report, schema, menu, toolbar and window class objects). The validation is applied when the name starts with a digit, and the remaining characters cannot all be a digit or the following characters "+-.".

This is controlled by the allowNumericObjectNames item in the ‘ide’ section of config.json. You are not recommended to allow numeric object names, as there can be clashes between names and idents, and notation strings of the form ...$objs.[lName] (where lName is a variable containing the name of an object) will fail to locate the object if lName is an integer, since Omnis will treat lName as an ident rather than a name.

Using $edgefloat and Component Resizing

The “floating edge” ($edgefloat) capabilities for JavaScript components allow the components to be resized automatically when the end user resizes their web browser window or when the layout changes on a breakpoint. The $edgefloat property can be set to one of the kEF… constants which determines which edges of the component, if any, will “float” or reposition automatically when the browser window is resized. The possible values for $edgefloat are:

• kEFall and kEFnone
  All or no edges float

• kEFbottom
  Bottom edge only floats

• kEFleftRight
  Left and right edges float; in effect, the component floats to the right or left and does not resize

• kEFleftRightBottom
  Left, right and bottom edges float

• kEFright and kEFrightBottom
  Right edge only floats, or Right and bottom edges float

• kEFtopBottom
  Top and bottom edges float; in effect, the component floats up or down and does not resize

• kEFrightTopBottom
  Right, top and bottom edges float

• kEFcenterLeftRight, kEFcenterTopBottom, kEFcenterAll
  means the Left & Right edges float, or the Top & Bottom edges float, or All edges will float, and the control will also be centered horizontally and/or vertically within its parent

• kEFbottomAndCenterLeftRight
  the bottom edge of the object will float or move up or down, while the object stays centered horizontally in the form (a combination of kEFbottom and kEFcenterLeftRight)

• kEFrightAndCenterTopBottom
  the right edge of the object will float or move to the right or left, while the object stays centered vertically in the form (a combination of kEFright and kEFcenterTopBottom)

• kEFleftRightAndCenterTopBottom
  the control floats with the right edge of its container, and remains centered vertically (a combination of kEFleftRight and kEFcenterTopBottom)

• kEFtopBottomAndCenterLeftRight
  the control floats with the container's bottom edge, and remains centered horizontally (a combination of kEFtopBottom and kEFcenterLeftRight)

• kEFposn… positioning constants
  all edgefloat constants prefixed with kEFposn… will reposition the control in the specified region of the screen; as you select one of these constants in design mode the control will snap to the chosen region, and when the form is resized at runtime the control will “stick” to this region; the kEFposnClient constant stretches the control to fit the available area within its parent or subform

You can store a different setting of the $edgefloat property for each component, for each different layout breakpoint. When setting $edgefloat in the Property Manager in design mode, you can set the value of $edgefloat for a component on all breakpoints by holding the Control key when selecting the $edgefloat value.

The setting of $edgefloat for a component is used to resize the component (or not if set to kEFnone) when the form or container field is resized at runtime, and when one or more of the following occurs:

• When the component is in a subform and the subform is resized (that is, its size at runtime is different to the size of the subform class)

• When applying a different mobile device size while running in a mobile device custom wrapper

• When the component is in a resizable subform in a subform set and the subform is resized

Centering Objects

There are some kEF… contstants to control how objects are centered relative to the remote form or parent: kEFruntimeLeftRightCenter, kEFruntimeTopBottomCenter and kEFruntimeAllCenter. They are only applied at runtime, and in this case, their behavior is identical to kEFleftRight, kEFtopBottom or kEFall respectively, except that the offset is divided by two, to keep an object or a number of objects centered within the parent.

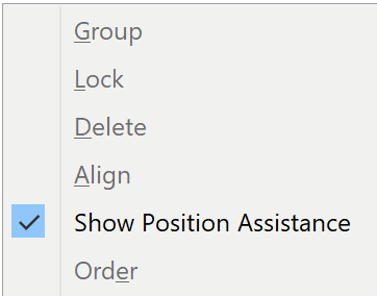

In addition, the Align context menu for the remote form editor contains options to allow you to center objects vertically, horizontally (or both) in their parent.

Responsive Forms and $edgefloat

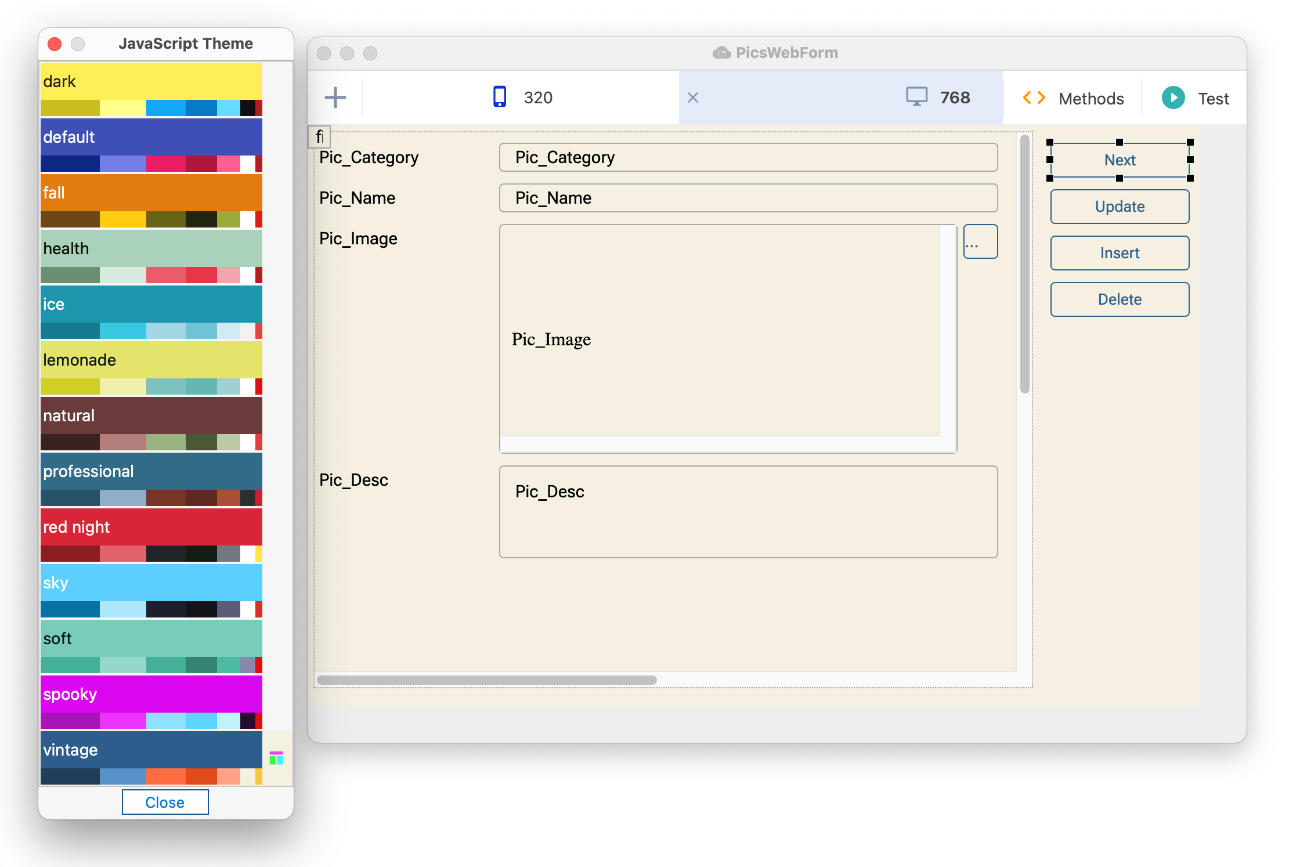

To understand what kind of edgefloat properties you can use, you can look at the PicsWebForm in the Pics2.lbs available in the tutorial download (or in the ‘welcome/tutorial/final’ folder); or you could create your own remote form using the form wizard. The PicsWebForm remote form was created using the SQL Remote Form wizard and uses edgefloat properties to control the floating edge behavior of the controls. The form has two layout breakpoints, 768 and 320, and the edgefloat properties is set differently for some of the controls on each breakpoint. The following image shows the layout for the 768 breakpoint, and the $edgefloat setting (a kEF.. constant) for each control is shown in red.

The PicsWebForm uses a Page pane containing all the data controls, e.g. Pic_Category, Pic_Name, etc; the $edgefloat property of the Page pane is set to kEFrightBottom to ensure it stretches across to the right and down as the form is resized in a browser window or is displayed on different sized tablet screens.

The $edgefloat property for most of the controls inside the page pane is set to kEFright, so the right edge “floats” or stretches to the right, but the bottom edge is not resized; the ID field has no floating edges so it keeps its size. The $edgefloat property for the push buttons on the right of the form is set to kEFleftRight (i.e. both left and right edges), which means the buttons will “float” from right to left horizontally, but they will not resize or move vertically. The combination of all these edgefloat settings on all of the controls, means that the push buttons keep to the right-hand edge of the browser window or device screen, while the data controls will resize to accommodate any screen or device size. Now examine the layout for the 320 breakpoint:

The push buttons on the 320 layout breakpoint are positioned at the top of the form and their $edgefloat property is set to kEFnone, so they will not move or resize as the form is resized. The $edgefloat property for the data controls is set to kEFright so their right edges will stretch to accommodate different phone sizes (widths), from 320 pixels upwards.

As the form is resized, on a web browser window or is displayed on a larger device screen, the controls will resize to fill the screen, until the next breakpoint is reached, which in this case is a screen or device width of 768 pixels, and the layout for that breakpoint is loaded.

Draggable Component Borders

End users can resize some JavaScript components dynamically at runtime in their web browser by dragging the border of the component. When the end user’s mouse is over the edge of a component that can be resized, the cursor changes to indicate that the border can be dragged and resized.

To allow this functionality, JavaScript components have the $dragborder property, which only applies when a component has its $edgefloat property set to one of the kEFposn… constants (other than kEFposnClient or kEFposnJoinHeaders). If $dragborder is set to true, and you have set $edgefloat as above, the end user will be able to resize the component in the browser by dragging the border of the component with the mouse.

You can store a different setting of the $dragborder property for each component, for each different layout breakpoint, therefore components on the same form could be resizable for web desktop browsers and not for mobile devices. When setting $dragborder in the Property Manager in design mode, you can set the value of $dragborder for all layout breakpoint values by holding the Control key when selecting the $dragborder value.

The appearance of the drag border area is defined by the styles div.omnis-db-vert and div.omnis-db-horz in core.css, which can be modified by overriding them in user.css.

Date and Time Formatting

You can set the formatting for Date and Time type data for some of the JavaScript components including Edit controls, Combo boxes, Data grids, Droplists, Hyperlink lists and standard Lists. These components have the properties:

• $dateformatcustom
  a date-time format string using the characters described below (e.g. D m y, the default); alternative formats can be provided separated by |. If $dateformat is kFormatCustom, and the data is of type 'Date Time', this property is used to format the data. If empty, it defaults to the format set using the client command 'setcustomformat'

• $dateformat
  the format used to display 'Date Time' data, a kJSFormat... constant as follows:

Date formatting characters

The following standard date formatting characters are supported for $dateformatcustom:

Some additional characters are supported for Date/Time formatting for the JavaScript Client components only, as follows:

The date codes are listed on the Constants tab in the Catalog (F9) under “Date codes” (some are not JS client) and "Date codes (JavaScript Client only)".

Date formatting and Locale

When the client connects, the server sends it the date formats, day names and month names for the client locale (the server reads these from ICU). If you assign $ctask.$stringtablelocale in $construct of your remote task, the server sends the client the formats and so on for the assigned $stringtablelocale locale.

Date Initialization

Local Date variables in client methods with no initial value set are initialized to an empty string, i.e. representing an empty date (from Studio 10.22 onwards), whereas previously they were initialized to 'undefined'. Setting a Date variable to 0 on the client now sets the date to 31 Dec 1900, whereas previously it was set to today's date. To set a date to today's date, you should use #D.

Number Formatting

All JavaScript controls that can display number data have the property $numberformat, which specifies how Number and Integer data is formatted or displayed in the control. The JavaScript controls affected include the Edit Control, Combo box, Data grid, Droplist, Hyperlink list and standard List control. The formatting is used when the control displaying the data does not have the focus, that is, the formatting is only applied when the end user tabs or clicks away from the number field.

The $numberformat property uses a single % format tag for the number followed by one or more elements, for example, the number format %.2F displays a number with 2 decimal places with a thousand separator. The following elements are available (in this order):

• An optional "+" sign that forces to precede the result with a plus or minus sign on numeric values. By default, only the "-" sign is used on negative numbers.

• An optional padding specifier used for padding (if padding is required). Possible values are 0 or any other character preceded by a '. The default is to pad with spaces.

• An optional "-" sign, that causes the string to left-align the result of this placeholder. The default is to right-align the result.

• An optional number that says how many characters the result should have. If the value to be returned is shorter than this number, the result will be padded.

• An optional precision modifier consisting of a "." (dot) followed by a number, specifies how many digits should be displayed for floating point numbers. When used on a string, it causes the result to be truncated.

A type specifier that can be any of the following:

Example $numberformat strings

Decimal and Thousand Separators

Numbers will be displayed using the default decimal and thousand separators specified by the language set in the client’s browser, so you do not need to do anything to display the correct decimal and thousand separators for a client. However, you can override the default separators by changing the thouChar and dpChar items in the jOmnis client object: you can do this using JavaScript in the $init method for a JavaScript form, for example:

# $init method, which must be client executed
JavaScript: jOmnis.thouChar = ".";
JavaScript: jOmnis.dpChar = ",";

Autoscrolling

You can enable automatic scrolling for Edit controls, Lists, Tree lists, Hyperlink controls, Pictures and Html controls by enabling the $autoscroll property. If this property is kTrue for the control, and the client is not a mobile device, the client automatically displays scrollbar(s) when not all of the content in a field is visible.

Setting $autoscroll to kTrue changes $horzscroll and $vertscroll to kFalse, and in doing so means you cannot set $horzscroll and $vertscroll. By default, $autoscroll is enabled for Edit controls, Lists and Tree lists, while for Hyperlink controls, Pictures and HTML controls $autoscroll is set to kFalse.

Note that in addition to controlling scroll bars, Data Grids and Lists have the $vscroll and $hscroll properties which allow you to scroll a grid or list vertically or horizontally at runtime in the client browser: the numeric value of these properties is either column or row offset for grids, or the row number for lists.

Component Borders

The borders of JavaScript components are drawn within the bounds of the control, for both Windows and macOS, and have the same dimensions for both platforms. The color is controlled using $bordercolor.

Most JavaScript components can have rounded borders by specifying the corner radius in pixels in the $borderradius property; for buttons this is $buttonborderradius (single value only). To set all the corners of the object to the same radius you can enter a single value, or to specify the radius for different corners you can use the syntax "n-n-n-n" which follows the same rules as CSS 3 rounded border syntax. The order for the radius parameters is top-left, top-right, bottom-right, bottom-left. If bottom-left is omitted the top-right value is used, if bottom-right is omitted the top-left value is used, if top-right is omitted the top-left value is used.

Control Classnames

All JavaScript controls have a base class name to allow you to control the appearance of controls using CSS, to allow you to apply a consistent appearance for each type of JavaScript control. (Note that from Studio 10.2 onwards you can use JS Themes to manage the colors for controls on a remote form.)

The classnames listed below can be added to the ‘user.css’ and CSS properties applied to the classname to control the appearance of each type of control. Note these classnames are contained in the JavaScript controls by default and if they are added to the user.css are applied to the control automatically, that is, these classnames do not need to be included in the $cssclassname property of a control to be applied (this property is used to apply your own custom style names, see below).

For example, to add CSS styling to all the Edit controls in your remote forms you could add the following CSS to the user.css file in the ‘html/css’ folder in the main Omnis folder: in this case, the base classname .omnis-input is used with the properties 2px solid grey border and a 6px radius.

.omnis-input {
  border: 2px solid grey;
  border-radius: 6px;
}

Custom CSS Styles

You can create your own CSS classes or styles (in addition to the base class names listed above) and apply them to the objects in your web and mobile apps, allowing you to have more control of the styling, coloring, and overall design of your apps.

CSS classes for Controls

All the JavaScript components have a property called $cssclassname which allows you to apply your own CSS class to the component. You can add the CSS classes to a file called ‘user.css’ which is located in the ‘html/css’ folder in the main Omnis Studio folder. A style can be applied to a control by setting its $cssclassname property to the name of a style. The properties you define for each style in user.css must be flagged as !important to override the JavaScript Client inline styles.

When you deploy your application on the Omnis App Server, you must put your custom ‘user.css’ file in the ‘html/css’ folder on the server.

Component Transparency

The majority of the JavaScript components have the $alpha and $backalpha properties which allow you to set the transparency of the foreground and background colors of the component.

Form Errors

It is possible to display form errors either to the right or under controls in a remote form. This makes it easier for end users to fill out forms in your web and mobile applications by providing them with helpful tips if they make a mistake in the form. The errors appear on the form as a text field either under a control, or to the right of a control, so you need to design your remote forms to allow space for the error text. The style of the error text and the outer HTML of the control containing the error are controlled in CSS which you can change if required.

$errortext

All JavaScript Client controls have the $errortext property which contains the text to be displayed when there is an error in the field or control. The initial value of $errortext when a form is constructed is empty.

The $errortext property is only supported for subform controls when they are not scrollable, i.e. when $vertscroll & $horzscroll are both kFalse and the subform class is not responsive.

$errortextpos

The $errortextpos property specifies the position of the error text set using $errortext. The value can be one of:

• kJSErrorTextPosUnder
  The error text is positioned under the control, the default.

• kJSErrorTextPosRight
  The error text is positioned to the right of the control.

• kJSErrorTextPosHidden
  hides the error text, so just the control outline indicates that there is an error (default is a red border). This might be useful where there is limited space to display the error text in the remote form, but you still want to show the end user that there was an error

Note that Omnis stores a separate value of $errortextpos for each screen size. As a shortcut when designing a form, you can hold the control key down when assigning $errortextpos, in order to assign the value to all screen sizes.

$errorline

$errorline is a runtime property of the JavaScript Complex Grid control, used when assigning $errortext to an object in the row section of a complex grid. The line number to which $errortext will apply.

Clearing form errors

The client command “clearerrors” allows you to clear all error text messages for the form:

  Do $cinst.$clientcommand("clearerrors")

equivalent to assigning $errortext to empty for all controls on the form which have error text.

Changing the appearance of error text

The following CSS classes control the appearance of the error text and border. These classes are stored in the core.css, which can be modified by overriding them in user.css.

• div.om-error-text
  This class styles the error text.

• div.om-error-border
  This class styles the outer div of a control which has error text.

Field List

The Field List provides a list of all the components on a remote form, including all those controls in container fields, and is often useful if you need to select a specific component which is partly obscured or hidden in the form, or is hidden deep inside the object hierarchy. To open the Field list, select the Field List option from the form or component context menu (Right-click to open), or press the F7 key.

The currently selected component is checked in the Field list, expanding the tree nodes and scrolling the list if necessary. Conversely, you can open the Field List and check a component name in the list to select it in the form. For example, in the following screenshot, the Order Now button has been checked in the Field List and the corresponding control is selected in the remote form, scolling the design screen if required to locate the control.

When the focus is on the Field List, you can use the arrow keys to navigate up and down the list and use Space bar to select a control, as required. The Shift-Space keypress allows you to select (or deselect) multiple, discontinuous controls in the list.

The Field list can be useful if you need to select the background of a form, for example to set its properties in the Property Manager, but the form is completely filled with components and no form background is available to click on, as can be the case for mobile forms. To select the form in this case, you can open the Field List and check the form name at the top of the list (which will deselect any components), or if you click on any individual component, then shift-click it to deselect it, the focus will be returned to the form background and its properties will be shown in the Property Manager.

Searching the Field List

The Search at the top-left of the Field List is useful if your remote form contains many nested objects, or you want to search for objects with a specific prefix. The search looks for items containing the search string. The following shows all objects in the Field list containing the string ‘prod’.

Renaming Objects in the Field List

You can rename a component or background object directly in the Field List, either using the Rename option in the Context menu, or by clicking into the selected line, or by selecting the line and pressing Return to select the existing name. The $name property for the object in the form is updated automatically.

When you rename an object on a remote form (using the Property Manager or Field List), Omnis searches for any properties using the old name, and replaces them with the new name, including properties such as $arialabelledby and $linkedobject.

Component Events

Most of the JavaScript components report events which you can handle in a special method called an “event method” which is inserted behind the component. The event method for a component must be named $event. For example, when the end user clicks a button, an evClick is generated which you can trap in the $event method for the button; this method could contain code to display a message, call another method or determine some other action depending on the code in the event method itself. Most of the components contain a template $event method with a code stub for you to use as a starting point to handle the event.

Enabling Events

To report an event, the event must be enabled for the component. Many of the components have their events enabled by default, but for some you may need to enable specific events in the $events property for the component.

To enable an event

• Select the component and open the Property Manager (press F6)

• Click on the $events property in the Property Manager to drop down the list of events for that component (the property will show “No Events” when no events are selected)

• Check (enable) the events you wish to trigger for this component

You can select multiple objects of the same type and specify the events for all of the objects at the same time. For example, you can select a number of check boxes and enable the evClick event under the $events property to enable the event for all the selected check boxes.

Editing Event Methods

If you double-click a component in design mode, the Method Editor will open displaying the method for that individual component. For components with events, the $event method will be shown automatically. For example, if you double-click on a button, the Method Editor will open displaying the $event method containing the code On evClick; you can add more code after this line to be run when the end user clicks the button. See the example code for each component for example $event methods.

For some components, the $event method may not contain any template code including the On event command, but you can add you own. You will need to enter the On command and select the appropriate event code (a constant beginning ev) from the Helper window in the Code Editor.

Event Method Validation

Omnis validates the event codes you have entered when adding or editing On event commands in the Code Editor. Therefore, Omnis will check to see if the event code is valid for the current object, and if not, it will flag it as an error.

If the event is not specified in the $events property, Omnis will add it to $events automatically when editing a method named $event in a non-inherited object (Omnis displays a temporary status bar message when it does this).

You can turn off this validation using the validateEventsForOnCommand entry in the methodEditor group of config.json; set it to false to turn off event method validation.

Standard Field Events

Most JavaScript fields or controls report the evBefore and evAfter events, which are triggered when the focus is about to enter or leave the control, respectively. Note that for edit controls, if the data does not change then an evAfter is not triggered as the focus leaves the control.

You can use the On event command to detect events in your event handling methods, and for most controls the $event method will contain a template event handling method into which you can add your own code. For example, in the $event method for an Edit control you could use the following commands to detect the evBefore or evAfter event.

On evBefore
  # do something..

On evAfter
  # do something else..

Buttons and Lists

Buttons and all the list type JavaScript controls report the evClick event, as well as evBefore and evAfter; and some list types also report the evDoubleClick event. For example, the Data Grid control reports evDoubleClick which you could detect and initiate a search based on the content of the grid line clicked on.

evAfter event queue

When an event is being executed in the JavaScript client, such as a click on a button, a transparent overlay is applied to the whole remote form, to prevent user interaction anywhere else in the form and to maintain the Omnis event ordering. If the user clicks on this overlay, the click will be prevented, although most events happen almost instantaneously so in this case the overlay is not displayed.

For evAfter events that show the overlay, Omnis shows a feedback effect at the point of the click when the overlay prevents the click, to make it clear to the user that their click was not registered. The feedback effect is a No Entry icon, with “bubble” animation, that appears and disappears directly after the user click. In this case, the click will be queued and will fire once the overlay is removed.

Unfortunately, Firefox does not treat the active state of elements in the same way as other browsers. As such, it was not possible to implement these changes for that browser.

Drag Border Event

All JavaScript controls report the evDragBorder which is triggered when the border is dragged – the event is reported to the control containin the border being dragged and any that share the border area being dragged. When it is triggered it could mean that the end user has resized the field (and therefore other fields in the same parent have resized) using the drag border.

Component Icons

Some of the JavaScript Controls, such as the Button control, allow you to add an icon to create a better appearance and UX for your apps. Such controls that support icons have the $iconid property which allows you to specify an icon image file to be used for the control.

You can use SVG image files for JavaScript component icons, as well as PNG image files (supported in versions prior to Studio 10.2). You can use SVG image files in an icon set, alongside an existing icon set containing PNG files, and these will appear in the Select Icon dialog when you assign an icon to a JS component.

In addition to single component icons, you can add notification or ‘Icon Badges’ to JS component icons to provide additional information, such as a number count: see Icon Badges.

Selecting an icon

You can assign an icon to a JavaScript Component by setting its $iconid property in the Property Manager under the Appearance tab: when you click on the dropdown menu for the $iconid property the Select Icon dialog opens, allowing you to select an icon image from those available in Omnis.

When you first open the Select Icon dialog you should see the ‘material’ icon set from which you can select an icon; the 48x48 icon size may be selected under the Size list, but you can select a different icon size, including 16x16 or 32x32, or you can set a custom size. When specifying $iconid in the Property Manager, the id edit field allows you to enter the size of an SVG icon by entering iconid+wxh, e.g. to set an alarm icon with a width of 22 and height of 33, you can enter alarm+22x33.

You can scroll the list of material icons to find an icon you need, or you can enter a search string into the Search box to filter the list. For example, the following screenshot shows the 48x48 material icons and the search ‘add’.

You can add your own icons to the Select Icon dialog by adding your own icon set; see below. You should use scalable SVG icons for your web and mobile applications, which will be displayed correctly in high definition on phones, tablets and HD monitors. In most cases, you should add your own icon set, tailored to the unique functionality or style of your application, and for all new applications you are advised to use SVG images for icons.

You can use the icons in the ‘studio’ icon set but these are PNG image files and may not lend themselves to your application, so you are advised to source your own SVG icons.

IMPORTANT: You should not use any icons listed under ‘Omnispic’, ‘Userpic’, ‘#ICONS’, or ‘IPHONECONTROLS’ since these only contain low definition or non-alpha image files and are only present for backwards compatibility for older applications.

Icon sets

SVG icon image files must be stored in an icon set, which is a sub-folder of the ‘iconsets’ folder in the main Omnis tree (do not use the ‘icons’ folder which contains the legacy icon datafiles, such as Omnispic). Note that an icon set cannot be named ‘datafile’, ‘lib’, ‘studio’, or ‘studioide’ since those names are already in use and would cause a conflict.

In order to use any icons in an icon set, you need to add the icon set name to the $iconsets library preference, which is a list of icon sets for the library. Once you have added an icon set to $iconsets for a library, the icons will appear in the Select Icon dialog, prefixed SET. (Note this library preference was called $iconset in versions prior to Studio 10.2 and only allowed a single icon set to be used.)

Icon Search Order

Icons can potentially be stored in various locations in Omnis including the ‘studio’ icon set, as well as any icon sets you have added, plus the various icon data files used in older versions of Omnis: this may become an issue where duplicate icon names or IDs exist across the different locations, so Omnis employs a specific ‘icon search order’ that determines how icons are located and displayed. If an icon with the same name or ID is included in another folder, after an icon has been found, it is ignored in subsequent folders and an error is written to iconsetlog.txt. You should therefore avoid having the same icon names, IDs, or icon set names in multiple folders to avoid any potential confusion. Omnis looks in the following icon sets or datafiles in this order:

1. The icon set(s) specified in the $iconsets library preference, in the order listed in the property

2. #ICONS for the library, if used (would only be the case for older applications not using SVG or HD PNGs)

3. User icon datafiles (other than Omnispic and Userpic), if used; this is for legacy apps only

4. The ‘studio’ icon set, under the ‘iconsets’ folder

5. Omnispic or Userpic (.df1 files located in ‘icons’ folder), if used

When using a web server for deploying your web or mobile application, any icon sets used in your library must be placed in the ‘html/icons’ folder in the web server tree, even if they are in one of the other folders in the Omnis Server tree.

During SCAF generation (for the serverless client), the Omnis Server now passes all the files for all icon sets in $iconsets to the serverless client library.

SVG Icons

SVG images are vector based and are inherently scalable, therefore a single SVG file can provide multiple sizes for icons: in practice, an SVG icon will scale to fit the icon area available in a control, such as a button (unless you fix its size, see below). By contrast, PNG images have a fixed size and therefore you have to create a separate image file for each icon size or resolution you wish to support and place all the separate files in an icon set in the Omnis tree. In addition, a single SVG image will have a much smaller file size than mulitple PNG files, giving your app a smaller footprint on the client.

On macOS, SVG icons only render in the thick client when using macOS 10.13 or later.

On Windows, SVG icons only render when using the Windows 10 Creators Update or later. In general, support for SVG in Windows is more limited than on macOS, for example, Windows does not support classes in SVG files – read here about Windows SVG support:

https://docs.microsoft.com/en-us/windows/win32/direct2d/svg-support

Material SVG icon set

Google provides a large set of SVG icons in its Material design scheme, which are issued under the Apache License Version 2.0:

(https://fonts.google.com/icons?icon.set=Material+Icons)

You are free to use these in your Omnis applications with the proper attribution in your product licensing.

We have selected over 100 of the Material icons (from the “black rounded” style) and placed them in an icon set folder called ‘material’ under the ‘iconsets’ folder in the Omnis tree. The material icon set will appear in the Select Icon dialog by default, and you are free to use these in your applications; the following screenshot shows some of the material icons, with the 16x16 size selected.

These material icons have been ‘themed’ using the Omnis SVG Themer tool and therefore support JS Themes. You could download other icons from the Material website and add them to this folder, if required, or create your own new iconset, and use the SVG Themer tool if you want them to support themes (in the Tools>>Add Ons menu). See the Themed Icons section about how to theme icons.

Using SVG Icons

If a JavaScript component can support SVG icons (and most do), then the icon names of any SVG icons will appear in the Select Icon dialog when you assign the icon via the Property Manager and the Select Icon dialog (if a component does not support SVG icons, then they are not shown in the Select Icon dialog).

In general, SVG icons are supported by any controls that previously required an icon, including the following classes or features:

• Remote Form class components (JavaScript Client controls), including buttons, menus, toolbars, lists, tabs, check boxes

• Styled text, including styled text on reports sent to the Omnis PDF report destination

• The background icon for the main Omnis window on the Windows platform ($root.$prefs.$backgroundiconid)

• The $componenticon class property

You should note the following for JS controls only:

• Some JS controls use background-image CSS, so when using an SVG image, it will not always scale as expected if the aspect ratio in the SVG is fixed, and the desired dimensions of the background-image do not have the same aspect ratio.

• JS Popup menu and JS Navmenu controls have hot iconid properties – in this case, the hot and equivalent non-hot iconid properties must either both use SVG or both use PNG

Creating SVG Icons

You can create your own SVG icons, or you may be able to acquire a set of icons from a third-party, either paid-for or for free (subject to the appropriate licensing). SVG image files must be saved with the .svg file extension (see naming below) and should be placed in an icon set in the ‘iconsets’ folder in the Omnis tree, and the icon set name needs to be added to the list of icon sets in the $iconsets preference in your library.

From our testing, we found that Adobe® Illustrator® allows you to export vector images in SVG format, and on the export to SVG options dialog you can select the ‘Inline Style’ option to ensure classes are not used in the output SVG. There are many other image editors that can output SVG.

SVG icon file names

The base icon ID of an SVG icon is the name of the SVG file, without the file extension, and converted to lower case, up to a maximum of 32 characters. The naming restrictions for SVG icons are as follows:

• The base icon ID must not represent an integer (the icon ID had to be an integer for PNGs, but does not have to be for SVG image files)

• The base icon ID must not contain the characters + # , ; = ? (plus, hash, comma, semicolon, equals, or question mark); note + is used to add a size restriction, see below

An icon ID or name can now be either an integer or a string, and integer icon IDs work exactly as they did before (the naming of PNG icon images remains the same).

You cannot use the same file name with different case in an icon set folder, plus it’s always good practice to make icon IDs or names unique across different icon sets, since the icon with the first instance of a specific icon ID or name is used.

Any errors related to the naming requirements are written to the icon set log file, which is in the folder logs/iconsets, in the data part of the Omnis tree.

Multi-state SVG Icons

If you want to include icons for different states of a control (for example, checked, highlighted, and checked highlighted for a check box control), you can include separate SVG files with a suffix in their name:

• _c for checked

• _h for highlighted

• _ch for checked and highlighted

For example, SVG files for a check box could include the files: checkbox.svg (for the unchecked icon), checkbox_c.svg, checkbox_h.svg and checkbox_ch.svg (for the different states). These 4 files all result in a single icon with id ‘checkbox’, and Omnis will select the correct SVG file according to the state of the checkbox.

Fixed and Custom Icon Sizes

An SVG icon will always expand to fit the available space within a control, but it is possible to fix or restrict the size of an icon by adding size information to the end of the icon ID name. The size information has the syntax +<w>x<h> where <w> is the integer width and <h> is the integer height. For example, an SVG icon ID could be any of the following:

• testsvg (unrestricted size)

• testsvg+16x16 (restricted to 16x16, for example, for a menu)

• testsvg+32x48 (restricted to 32 wide x 48 high)

When selecting an SVG icon, the size list includes the configured sizes from config.json, and the current size of the icon, in addition to the standard sizes and kDefSize. There is a + button in the heading of the size list that allows you add a new size. There is an option on the dialog to add the new size to config.json.

The ‘customSizes’ item in the ‘svg’ section of config.json allows you to add other sizes. The size list in the Select Icon dialog will show any other sizes specified in the config.json file:

  "svg": {
  "customSizes": \[
    "256x256",
    "64x64",
    "128x128"
  ]
}

When a custom size is selected in the size list for a full page SVG icon, in addition to the + button, there is a - button which you can use to remove the size from the list, and optionally remove it from config.json.

Omnis uses the default width and height specified in an SVG file to determine the aspect ratio of the icon image. To obtain this, Omnis looks for the width and height attributes of the svg element in the SVG file and uses these if present. If width and height are not present, Omnis uses the viewBox attribute of the svg element to determine the aspect ratio. In this case, you can add a size using the + button in the Select Icon dialog, and use the Keep Aspect Ratio option, to fix the aspect ratio.

Icons for Lists

Certain controls, such as the Icon Array, use a list column to contain an icon ID. To make use of SVG icons, this column needs to be defined as Character. Where you use a mixture of SVG icons and existing PNG icons, the icon IDs can be specified as strings or integers as appropriate.

Icon Caching

You can control the cache size for all icon sets (using PNG and SVG icons) in config.json using the maxCachedIconSetBitmaps entry. This is an integer, which defaults to 1000 bitmaps. If Omnis needs to create a new bitmap for an icon from an icon set, and the current number of cached bitmaps is at this limit, Omnis will free up the least recently used bitmap.

Assigning a URL for images

When you set the $iconid of a JavaScript control you can also assign a URL. In server methods, if the value being assigned is a character value that contains a “/” character then Omnis treats it as a URL generated by the iconurl function (meaning that it can contain alternative icon files for the different client resolutions, and also that the server will pick the correct icon for the client resolution).

In client methods, if the value being assigned is not an Icon ID (a literal integer or integer + icon size constant) then Omnis treats the value as a URL generated by the iconurl function on the server, and the client picks the correct icon for its resolution.

You could generate the required URLs with iconurl() (see below) in the $construct() method of your remote form, and store them in an instance variable list which could then be used in client executed code to assign the correct image to each object.

Image handling for tree lists

For the JavaScript Tree control, the iconid column is an iconurl column, and the $iconurlprefix property is redundant although existing libraries that use $iconurlprefix will continue to work. Instead, the iconurl column should be defined to be of type character, and it should be populated using a server-only function, iconurl(iconid), which returns a URL string containing the name of the image file or a semi-colon separated list of file names if an icon exists in more than one resolution. This enables the client to pick the correct icon for its resolution.

Exporting Icons from an Icon Datafile

You may want to use some existing icons located in an Icon Datafile and either add to or replace some of them with higher resolution versions. To enable you to export existing icons as separate files, there is a tool in the Tools>>Add Ons menu, called the ‘JS Icon Export’ tool, which is available in the ‘Web Client Tools’ dialog (scroll to the bottom of the list of Web Client tools). The ‘JS Icon Export’ tool will export all the icons in a selected Icon Datafile and place them in a folder in the ‘iconsets’ folder, applying the correct image file names. The $iconid property of a control will now reference the external image file in the icon set and not the icon datafile image, since Omnis looks in the iconset folder for the library before any icon datafiles. The Icon Export tool will only export icon images that support Alpha, i.e. the icon page containing the existing icon(s) must be set to Alpha.

Icons Folder Name

Apache often redirects a URL with "/icons/" to the /usr/share/apache2/icons folder, and you would then need to place all the icons for your app in that folder. Therefore, if you deploy your web or mobile app to an Apache server, you may want to rename the ‘icons’ folder in Omnis by editing (adding) an entry in the Omnis configuration file (config.json). The "iconsFolder":"omnis_icons" configuration item in the server group of config.json defaults to "icons" if omitted or is empty, so you can change the name by adding your own value. You are recommended to use the same value for development and runtime, since the folder name is stored in the HTML for each remote form class.

PNG Icons

From Studio 10.2 onwards, you are advised to use SVG images for component icons, although you can still use PNG images. In this case, you should create PNG image files that are 16x16, 32x32, or 48x48 pixels either at a standard pixel density suitable for displaying on standard monitors, or image files that are 1.5 and 2 times the size, suitable for displaying on phones and other HD devices. When your app is displayed on different devices and screen resolutions, Omnis will display the correct icon size and resolution.

PNG Image File names

Each PNG image file within an icon set must conform to the following naming convention:


• <text> is a string, i.e. the name of image, which must not contain underscore. This string is used in the icon picker dialog when you set an object’s $iconid in the Property Manager so it should describe the icon. Icon files that are the same image, but different resolutions should have exactly the same <text> name.

• <id> is the positive integer id to be used as the icon id. It can be in the range 1 to 10000000. Icon files that are the same image, but different resolutions should have exactly the same <id>.

• <size> is the CSS pixel size of the image, i.e. the resolution independent size of the image, meaning that for all resolutions of the same image this has the same value.

The value of <size> has the form <width>x<height>, where the values 16x16, 32x32 and 48x48 are special values since they correspond to the standard icon sizes supported by Omnis.

• <resolution> is the factor by which the pixel density is greater than a standard monitor and is one of the following:
  “_2x” for HD devices such as the Retina display
  “_15x” for some devices e.g. certain Android phones that have a 1.5x pixel density.
  an empty string is the default and is for standard resolution devices, equivalent to _1x

Any files (or folder names) that do not conform to the naming conventions are ignored.

Note that the image file names are case insensitive and they must be unique across all platforms and file systems (that is the case of file names is ignored).

If you are unsure about the file naming for PNG icons, you can examine the icons in the ‘iconsets/studioide’ folder.

PNG Check Boxes Icons

You can use PNG images for check box and radio button icons, using the following naming:

• <state> is the checked, highlighted, or normal state of the icon for multi-state icons and can be one of the following:
  an empty string for the normal state of the icon
  "c" is the checked state of the icon
  "h" is the highlighted state of the icon
  "x" is the checked highlighted state of the icon

PNG Image Scaling

You do not have to create an icon PNG image for all resolutions, although it would be advisable to do this for the best appearance. Omnis will use an icon image closest to the resolution being referenced, scaling as appropriate, and as with all image scaling it is better to force Omnis to scale an image down rather than scale it up. In this case, you may like to provide the highest possible resolution image for your icons and allow Omnis to scale the images down to display an icon for lower resolutions, but the scaling may produce unexpected results.

When the JavaScript Client connects, it sends its resolution to the Omnis App Server. This allows the server to use the appropriate icon when setting iconid properties in server methods.

Non-standard PNG image sizes

You can create PNG images with a size other than the standard sizes (16x16, 32x32, 48x48) by creating the image at a non-standard size and including the image size in the file name when the file is saved. For example, you can create an image 100x200 pixels and name it something like “mygraphic_1688_100x200.png”, and you can create a high resolution version at 200x400 pixels and name it “mygraphic_1688_100x200_2x.png”. (This is the equivalent of an ‘Icon Page’ in older versions of Omnins.)

Icon Data files and #ICONS

NOTE TO EXISTING USERS: The method of storing icons in #ICONS or an Icon data file (such as Omnispic) and assigning the numeric Icon ID ($iconid) to controls will continue to work, but this is only useful for icon images that are 16x16 pixel (or 32x32 for high def). In this case, if you run your application on an HD display and your library uses an icon data file or #ICONS, Omnis will try to use a 32x32 icon (if it exists and the icon page is marked as containing 32x32 icons), in place of the corresponding 16x16 icon. If a 32x32 image does not exist in your icon data file or #ICONS, the existing 16x16 image will be used which may have a very poor visual appearance on newer screens and devices. In order to support high definition 16x16 icons you will need to create a new version of each image at 32x32 pixels and import each one into the icon data file or #ICONS into the 32x32 section on the same icon page using the same icon IDs.

If you have used 32x32 or 48x48 pixel icons in your libraries (in #ICONS or an Icon data file), and you wish to display them on HD displays, then you will need to adopt the use of icon sets, which support icon images up to 96x96 pixels, that is, 2x the largest 48x48 icon size. Note that icons in an icon set will take precedence over icons in #ICONS, Omnispic or Userpic in the icon search order.

Icon Badges

You can add notification badges or ‘Icon Badges’ to JavaScript component icons to provide additional information, such as a number count, or to alert the end user, in order to enhance the UI in your applications. (Note you can also apply icon badges to Window class component icons.)

Icon badges are additional icons or notifications that can be added to any JavaScript component icon, that is, a badge can be added to any control that supports icons, such as Push buttons, Toolbar buttons, Menu items, or Tab bar tabs. The following screenshot shows some examples, including button icons, toolbar icons, and tabbar icons.

When assigning to $iconid for a JavaScript component, you can use the iconidwithbadge() function to assign an icon badge or number count notification and its properties. Therefore, when an icon ID uses an SVG icon name, iconidwithbadge() allows you to append additional values to the SVG name to define a badge to be added to the main icon. The syntax is:

 iconidwithbadge(svgIcn, count_or_secondary_icon [ , badge_options, backcolor, icontextcolor ] )

The parameters are:

• svgIcn
  the ID of the primary icon for the object / toolbar object

• count_or_secondary_icon
  the count to be displayed on the badge, or the ID of a smaller secondary icon

• badge_option
  kIconBadgeAlignTop, kIconBadgeAlignBottom, or the default is the position set by the OS, also kIconBadgeBackgroundHide, see below.

• backcolor
  the color of the badge, the default is kJSThemeColorSecondary

• icontextcolor
  the color of the count, or secondary icon, the default is kJSThemeColorSecondaryText

For example, the following lines of code set up icon badges for buttons:

Do $cinst.$objs.button.$iconid.$assign(iconidwithbadge( 'tablet_mac', 9 ))
Do $cinst.$objs.button.$iconid.$assign(iconidwithbadge( 'tablet_mac+32x32', 9 ))
Do $cinst.$objs.button.$iconid.$assign(iconidwithbadge( 'tablet_mac', 99, 0, kDarkGreen, kWhite ))

Some Omnis objects used fixed icon sizes, such as menu items or tabbar tabs, therefore when applying a badge to these objects you cannot supply an icon size for the primary icon as the size will be fixed by the object, for example:

Do $imenus.NewMenu.$objs.Item.$iconid.$assign(iconidwithbadge( 'tablet\_mac', 9 ))

When using iconidwithbadge() in a client-executed method, the SVG parameters must be URLs, which can be generated with iconurl() in server-executed code.

The default icon badge background colour is kJSThemeColorSecondary, while the count or secondary icon is kJSThemeColorSecondaryText (for window class controls the colors are the standard OS colors).

Badge Options

The constants kIconBadgeAlignTop and kIconBadgeAlignBottom can be used in the badge_option parameter in iconidwithbadge() to specify the position of the badge. Omitting this or passing 0, Omnis will use the default position for the OS – by default, macOS will draw a badge at the top right of an icon, and Windows at the bottom right.

The constant kIconBadgeBackgroundHide allows you to hide the default colored circle badge when used with a secondary icon. If the badge has a count and not an icon, the badge background is always drawn and this option ignored. For example:

 $iconid.$assign(iconidwithbadge( 'tablet\_mac', 'star', kBadgeIconHideBackground, kDefault, kRed ))

Tab panes and Tab strips

To set an icon badge on a tab pane or tab strip, you can use a new method $settabinfo() – this allows you to alter a tab name or icon at runtime without first changing the current tab. The syntax is:

$settabinfo(** *tabnumber*, *cap*, *icon* )

The parameters are:

• tabnumber
  a valid tab from 1 to $tabcount

• caption
  the new tab caption or empty to leave caption untouched

• icon
  the icon for the tab; you can use iconidwithbadge()

The new iconidwithbadge() function can be used to specify the icon badge. For example:

Do $cinst.$objs.tabpaneorstrip.$settabinfo( 1, '', iconidwithbadge( 'tablet\_mac', 1 ) )

Component Fonts

The font for all JS controls is set using the $font property. The Roboto Flex font is the default font for all JS components (in new libraries), including Entry fields and labels. Roboto is a Google font and included in the folder html/fonts; its use is subject to the Apache License Version 2.0: https://www.apache.org/licenses/LICENSE-2.0

The "system-ui" font is also available for most controls and uses the Operating System's default font, so changes between platforms. This may be useful if you are designing a mobile app to run in the wrappers, giving your app a more native look.

The $fontstyle and $fontsize properties sets the font style or weight, and font size, respectively. This includes semi-bold (kSemiBold) if the font supports it (Roboto does). Using both kBold and kSemiBold causes an extra bold font style to be used.

Drag and Drop Data

Drag and drop for the JavaScript Client provides the ability for end users to drag data from one JavaScript control in a remote form, and drop that data onto another JavaScript control. In addition, end users can drag files from their desktop and drop them onto a JavaScript control within a remote form displayed in their web browser.

IMPORTANT NOTE: Support for drag and drop in JavaScript remote forms is limited to desktop browsers only, including Chrome, Edge, Firefox, and Safari – drag and drop is not supported in mobile browsers. Also note drag and drop only applies from one control to another control, or a file onto a control – you cannot drag data to or from a remote form.

To drag and drop some data, the end user can click and hold down the pointer over a JavaScript control on a remote form, then drag the highlighted control onto another control and release the pointer when the target control is highlighted. To enable drag and drop, you have to set various properties in the source and target JavaScript controls, and handle various events in each control as the drag and drop events occur.

Existing users should note that the event constants and their parameters work in a very similar manner to those for the drag and drop mechanism in the thick client, with the addition of the pDropId parameter which identifies the area of a control over which the drop is to occur (see under Events).

Example Library

There is an example library demonstrating how you can drag and drop images between JavaScript controls, and the library allows image files to be dropped onto a control from the desktop. The example library is called Drag and Drop and is available in the Samples section in the Hub in the Studio Browser, in the JavaScript Component Gallery.

Dragging Data

Dragging data is limited to certain data-bound JavaScript controls and is not possible for all types of JavaScript controls. JavaScript client controls that support dragging data will have the $dragmode property. This can be set to either kNoDragging or kDragData.

Note that the $dragiconid property used in the thick client is not supported for drag and drop in the JavaScript client, for a number of technical limitations in various browsers. The dragged image is typically an image of the dragged element created by the browser, using the content of the element when the drag starts – the client performs various temporary adjustments to the element to make the dragged image correspond to the dragged data as appropriate.

Dropping Data

A drop can occur on any JavaScript control, but remotes forms do not accept drops. You can specify that a control can accept dropped data by setting its $dropmode property. When a control can accept some data, the JavaScript client highlights the destination control. For JavaScript client controls, $dropmode can be one of the following constants:

• kAcceptControl
  Data from a JavaScript client control can be dropped onto this control.

• kAcceptFiles
  Files dragged from the system (desktop) can be dropped onto this control; this would allow you to upload the file, for example, which is described in Dragging and Dropping Files

In addition, the list, tree list and data grid controls have the $hiliteline property, indicating that data can be dropped on a specific list line or tree node rather than the entire control. This also means that rather than highlighting the entire control, the client highlights the current destination line or node when a drop can occur.

Scrolling

When the end user is dragging data, they can scroll a destination control vertically by placing and holding the pointer near the bottom or top of the control. This is useful with long lists, grids or tree controls, when the $hiliteline property is enabled.

Events

In order to process a drag and drop procedure, you have to handle some events in the $event method in the source and target controls. The drag and drop events must be enabled as required in the $events property for a control.

evDrag

The client sends evDrag when the user attempts to start a drag. evDrag must be executed in a client-executed $event method, and it has the following event parameters:

If you use Quit event handler (discard event) during evDrag, you prevent the drag from starting.

Since it is not always convenient to mark $event for a control as client-executed, the client provides an alternative mechanism. You can implement a client-executed method named $drag for the object, with two parameters (type Var): pDragType and pDragValue. $drag returns true if the drag is allowed, false if not.

The client first attempts to call $drag. If $drag exists and returns true or false, then the drag starts or is not allowed to start respectively. If $drag does not exist, or does not return a value, Omnis sends evDrag if it is selected to execute in $events, and if $event is client-executed.

The drag will only fail to start if $drag executed and returned false, or if evDrag was sent and discarded by Quit event handler.

Data grids, lists and tree controls may select a line or node when the drag starts. This will result in a click event being sent just before $drag is called or evDrag is sent. If the click is sent to the server, it will execute in parallel with evDrag or $drag.

evDragFinished

The client sends evDragFinished when the user has finished a drag (released the pointer). It has no event-specific parameters. evDragFinished can be server or client executed.

evCanDrop

The client sends evCanDrop when the pointer is over a control that can accept a drop of the current drag type (kDragData or kDragFiles). evCanDrop must be executed in a client-executed $event method, and it has the following event parameters:

If you use Quit event handler (discard event) during evCanDrop, you prevent a drop on to the current control and pDropId combination.

Since it is not always convenient to mark $event as client-executed, the client provides an alternative mechanism. You can implement a client-executed method named $candrop for the object, with four parameters (type Var): pDragType, pDragValue, pDragField and pDropId. $candrop returns true if the drop is allowed, false if not.

If pDragField=$cobj.$name
  Quit method kFalse
End If

The client first attempts to call $candrop. If $candrop exists and returns true or false, then the drop is allowed or not allowed respectively. If $candrop does not exist, or does not return a value, Omnis sends evCanDrop if it is selected to execute in $events, and if $event is client-executed.

The drop will only be denied if $candrop executed and returned false, or if evCanDrop was sent and discarded by Quit event handler.

evWillDrop

The client sends evWillDrop when a drop occurs over a control and drop id combination for which which a drop is allowed according to the can drop processing. The client sends evWillDrop to the control being dragged - therefore, evWillDrop is not sent when dragging files from the system. evWillDrop can be server or client executed. It has the following event parameters:

Quit event handler with discard event has no effect on evWillDrop.

evDrop

The client sends evDrop when a drop occurs over a control and drop id combination for which a drop is allowed according to the can drop processing. evDrop can be server or client executed. It has the following event parameters:

Quit event handler with discard event has no effect on evDrop.

The following $event method is behind an image control and processes the dropped data (this is available in the example library).

On evDrop
  If pDragType=kDragData
    If pDragField='LeftImage'
    Calculate iLeftImage as iRightImage
    # pDragValue is base64, convert to binary for consistancy
    Calculate lBase64 as mid(pDragValue,pos(',',pDragValue)+1)
    Calculate iRightImage as binfrombase64(lBase64)
  End If
Else
  Calculate lLine as 1
  # pDragValue can contain many lines use first file only
  Calculate iRightImageIdent as pDragValue.[lLine].4
  Do $cinst.$clientcommand(
    'readfile',row(iRightImageIdent,'iReadFileBin',kTrue))
  # readfile is a client command - see below
End If

Drag Values

This section describes both the controls for which data can be dragged, and the drag values generated for each drag.

Combo box

pDragValue is the selected text dragged from the current selection in the entry field component of the combo box. To drag text, you must click and hold the pointer somewhere in the selection before dragging.

Data grid

pDragValue is a list. For a single select data grid, the list has one line, containing the list line being dragged. For a multiple select data grid, the list contains the selected lines being dragged.

Entry field

pDragValue is the selected text dragged from the current selection in the entry field. To drag text, you must click and hold the pointer somewhere in the selection before dragging.

List

pDragValue is a list containing the list line being dragged.


pDragValue is a character string containing the URL of the picture being dragged. If the picture is populated using a variable and $mediatype, the URL is a data URL.

Rich text

pDragValue is the selected text dragged from the current selection in the entry field component of the rich text control; note that this is the plain text without any formatting. To drag text, you must click and hold the pointer somewhere in the selection before dragging.

Tree list

The tree only supports dragging when it is in dynamic mode (i.e. when $datamode has the value kKSTreeDynamicLoad). pDragValue is a row containing information about the node being dragged. The row has 3 columns:

If the $hiliteline property is kTrue for a tree control, and the dropmode indicates that the tree is a potential drop target, the client will expand a node when the pointer enters it while dragging.

Tab control

The tab control contains some special logic that allows you to switch tabs while dragging, if this is the functionality you require. For can drop, it sets pDropId to the tab number of the tab under the pointer (or it sets pDropId to the current tab number if the pointer is over an area of the control which is not a tab). To switch tabs, implement a client-executed $candrop method for the tab control which executes:

 Calculate $cobj.$currenttab as pDropId
 Quit method kFalse

Dragging and Dropping Files

In addition to dragging and dropping data from one control to another, end users can drag files from their desktop and drop them onto a JavaScript control in a remote form in their browser. There are two client commands that allow you to process dropped files, using the $clientcommand method.

closefile

The client records file idents (and their JavaScript File objects) in a table. Use closefile to remove the table entry and release resources. You should really do this for every ident passed in the drag value to evDrop, unless you use readfile which removes the table entry after reading the file.

The row passed to the “closefile” $clientcommand has a single column, which is the ident of the file to remove from the table. If you pass a row where the ident is zero, the client removes all entries from the table.

readfile

The readfile client command allows you to read the contents of a file identified by its ident. After attempting to read the file, the client removes the ident from the table, so a call to closefile is not required.

The row passed to readfile has the following structure:

 row(ident,instance variable name,base64)

The columns are as follows:

The JavaScript FileReader which the client uses to read the file operates asynchronously, so a call to readfile starts the file reading process. When the file read is complete, the client calls the client-executed method $filereadcomplete in the form used to call $clientcommand. $filereadcomplete has two parameters:

Files dragged from system

For file dragging, pDragValue is only populated for evDrop. It is a list of the files dragged from the system, with columns defined as follows:

Drag and Drop for Thick Client

evCanDrop, evWillDrop and evDrop for the thick client have the pDropId parameter. This is significant when $hiliteline for the control is true, and contains the id of the location in the control where the drop would occur or is occurring, e.g. the list line for a list.

Copying data

The end user can copy data in any control and the content can be returned via a client executed method called "$clipboardcopy". For example, the end user can copy selected rows in a data grid and the content can be returned as tab-separated values. In this case, you can add a $clipboardcopy client method to the grid control to handle the clipboard content. The method can return character data or a list. If it is a list, column 1 must be the MIME type and column 2 must be the content. For example:

# $clipboardcopy client method
Do lList.$define(lMime,lContent)
Do lList.$add("text/plain","Copy this as plain text")
Do lList.$add("text/html","Copy this as <b><u>HTML</u></b> instead")
Quit method lList

Side Panels

A Side Panel is a vertical panel that can be displayed down the left or right side of a remote form (like a sidebar), containing clickable options, such as a menu of options or other content. Side panels are a common UI element in dashboard style designs and allow you to create a more interactive UI for your web & mobile apps. Note that there is not a separate side panel component, instead many existing JavaScript controls can be marked as a side panel by setting the $sidepanel property of the control to kTrue.

A Side Panel will pop out on the left or right side of a form automatically, when the end user hovers their pointer over the left or right edge of the form. Alternatively, a side panel can be opened and closed manually using a button. When a side panel is opened it is animated, so when activated, it will slide in or out.

In practice, it would normally make sense to use a container object, such as a Paged pane, Subform, or Scroll Box as a side panel since you can then add other controls to the container which the end user can interact with. Alternatively, a Tree list could be switched to a side panel which would function as a Navigation bar for your web app.

There is an example app called JS Side Panels under the Samples option in the Hub in the Studio Browser, that demonstrates the basic behavior of side panels.

Panel Mode Property

The $sidepanelmode property determines the panel mode, that is, how or when the panel is popped out; the mode is set using a kSidePanelMode… constant, as follows:

• kSidePanelModeNone
  the default mode meaning the side panel will not pop out automatically when the end user hovers over the edge of the form, but the $showpanel method can be used to show the side panel (e.g. executed behind a button)

• kSidePanelModePush
  the side panel pops out automatically when the end user hovers over the edge of the form and “pushes” or moves the other controls and content on the remote form either to the right or left

• kSidePanelModeCover
  the side panel pops out automatically when the end user hovers over the edge of the form and “covers” the other form content, i.e. the panel is placed over the top of the other controls and content on the remote form

Panel Mode Method

You can use the $showpanel() method to show or hide a side panel, when $sidepanelmode = kSidePanelModeNone; the method must be executed on the client.

• $showpanel(iAction, [iMode=kSidePanelModeAuto] )
  Performs an action (iAction) on a side panel object, one of the following:
  kSidePanelActionHide hides the side panel.
  kSidePanelActionShow shows the side panel.
  kSidePanelActionToggle either hides or shows the side panel depending on its current state.
  The panel mode (iMode) is optional and only applies when iAction is kSidePanelActionShow; if omitted, the default is kSidePanelModeAuto which uses the setting in the $sidepanelmode property, either kSidePanelModePush or kSidePanelModeCover

For example, you could set the $sidepanelmode property to kSidePanelModeNone (i.e. the panel will not pop out automatically), and use the $showpanel() method behind a button to pop it out, as follows:

 On evClick      ## set to execute on client
   Do $cinst.$objs.panel.$showpanel(kSidePanelActionToggle,kSidePanelModePush)

Events

The following events are reported by a component when it is enabled as a side panel.

evWillShow and evWillHide can only be executed on the client. This is so the events can be discarded, if required, which will prevent the panel from being shown or hidden.

Tab Order

The $order component property determines the Tab Order for the controls within a remote form, that is, the order in which remote form controls receive the focus as you press the Tab key. The value of $order for each control is assigned automatically as you add controls to a form in design mode, starting at 1 and increasing by 1 for each control (note the $order values do not change if you move or rearrange the controls on the form). You can change the $order value of a control to change its tab order: when you change the value of one control, the $order value of other controls on the form will be adjusted in sequence automatically.

When you tab into a container, such as a page pane, the tab order takes you through all of the fields in the container, before tabbing out of the container.

The $startfield remote form property specifies which field in a remote form will get the focus when the form is opened, overriding the control with its $order property set to 1; $startfield takes the field number as specified in the $order property of the control. Note this property may have an impact on accessibility, insofar as the field specified in $startfield may not be the first field on the form, thereby going against most accessibility practice.

Remove from Tab Order

The $removefromtaborder property allows you to remove a control from the tab order. If $removefromtaborder is true, the control is not included in the tab order for the remote form, except for Complex grids which cannot be removed from the tab order. If a control does not have this property, it is always excluded from the tab order, i.e. it cannot be tabbed to.

Design tab order

All JS components have a $taborder read-only property in design mode which shows the resolved tab order within the form, taking into account container fields, such as paged panes or complex grids. The context menu on a remote form has a "Show $taborder" option, so that you can see the value of $taborder for all controls on the form. You can still alter the tab order of the controls in a form by modifying $order for each control.

Next Tab Object

All JS components have the $nexttabobject property which allows you to override the default tab order, set by the $order property for all the controls in a remote form. The $nexttabobject property allows you to specify the name ($name) of the control you want the focus to jump to after the current object, overriding the tab order set by $order. You can specify the row when setting the $nexttabobject property to a complex grid child.

You should not overuse this property, as it does incur some overhead by setting up additional event listeners.

Accessibility

Omnis Studio supports the Web Content Accessibility Guidelines (WCAG 2.0) which will help to make your applications more accessible, primarily for people with disabilities. These guidelines have been adopted by many government agencies and guarantee an acceptable level of access to information and services via websites and applications for people with disabilities. You can read the following pages to gain a basic understanding of the WCAG requirements:

https://www.w3.org/WAI/standards-guidelines/

The WCAG implementation in Omnis Studio calls on the ARIA specification, which according to W3.org is “Accessible Rich Internet Applications (ARIA) defines a way to make Web content and Web applications more accessible to people with disabilities. It especially helps with dynamic content and advanced user interface controls developed with [various web technologies],” which includes technologies such as the JavaScript Client in Omnis Studio.

In practice, most JavaScript components have ARIA compliant properties which you can use in your web and mobile apps to support end users with disabilities. These properties will be read automatically when the screen reader capabilities are enabled in the end user’s browser or mobile device.

ARIA Properties

Most JavaScript controls have a set of basic ARIA and other accessibility properties which are interpreted by the screen reader in the browser. The ARIA properties in Omnis map closely to their equivalent ARIA attributes in HTML.

Several of the JavaScript controls have the following ARIA properties, while some other controls have additional properties (listed below). These properties are designed to work in a similar way as their equivalent ARIA attributes in HTML.

• $arialabel
  the text for the aria label, which is used when a text label is not visible on the form. If there is a label for the control, use the $arialabelledby property instead

• $arialabelledby
  the name of a control to act as a label for this control; for example, you could enter the name of a label object to link it to the control. A value in $arialabelledby will override the value in $arialabel; you can use a comma separated list of controls to assign multiple controls as labels for the component

• $ariadescribedby
  the name of a control used to describe this control: similar to $arialabelledby, but could be used to provide more information or a longer description about the control; you can use a comma separated list of controls to assign multiple controls as labels

In versions prior to Studio 11, $arialabelledby and $ariadescribedby took a space separated list of controls. When converting libraries from 10.2 or earlier, or importing a library from JSON, spaces in $arialabelledby and $ariadescribedby will be replaced with commas.

You should note that JavaScript controls now have an $active property which works alongside $enabled allowing you to make controls active, inactive, enabled, or disabled, which helps you control accessibility and tab order in your remote forms.

Image Based Controls

You can assign an Alt text value to image-based controls, such as Picture and Activity, using the $alttext property:

• $alttext
  a short text to describe the appearance or function of an image, and equivalent to the “alt” attribute in HTML; this property is relevant for controls that contain an image or have a significant visual appearance, such as the Picture and Activity controls.

Page Panes and Landmarks

So-called “Landmark Roles” in standard accessibility guidelines allow you to identify different areas of a form to allow screen readers to describe the structure of the page to end users. You can define Landmarks in your JS remote forms using Page panes and by assigning the appropriate value to the $landmark property for each pane: the options for $landmark correspond to the same keywords used for landmarks in the accessibility guidelines (Main, Navigation, Banner).

• $landmark
  specifies a role to make the page pane an ARIA landmark region, a kLandmark… constant with kLandmarkNone as the default.

The Landmark options are:

Label controls

You can link a Label control to a specific Edit control, or you can tag a label as one of the HTML header types, using the following properties:

• $labelfor
  links a label to a control. If you use this with some controls such as the Edit control, the linked control will get the focus if the label is clicked. It can be used in addition to $arialabelledby.

• $tagtype
  can be used to set a label’s HTML tag type to one of the header types (<h1> etc.) which would allow the end user to navigate to different sections of a form: the default value is kJSLabelTypeLabel, which is a standard untagged label, and the other values include H1 to H6 for the header types.

Control text

If a control has some text assigned (e.g. a button), the screen reader will read out the text by default, therefore it is not always necessary to assign the ARIA properties to describe such controls. For example, the text for a Button control will be read by the screen reader, if no ARIA properties are specified, however the value in $text will be overridden if you specify $arialabel or $arialabelledby.

Content tips

The Edit control has the $::contenttip property which is a text string which is displayed in the edit field when it is empty and before the end user has entered any text. This can be used in addition to the ARIA label properties, to help label the edit controls on your forms: note it is good practice to add labels to all the edit controls on your form to help with accessibility, so do not rely solely on content tips to describe edit controls.

Keyboard Accessibility

As well as the ARIA properties, the behavior when using various keys to navigate a remote form, or inside more complex controls, has been improved. For example, when the end user presses the Tab key, the focus will jump from one control to another in a remote (web) form, or for complex items such as a Tab bar, the Tab key will put the focus inside the control and the arrow keys can be used to move from one element to another. In addition, the Arrow keys can be used to interact with controls, such as dropdown menus, while Enter and Spacebar can be used to select options or items. The Page Up/Down keys can be used to scroll a form or long list which has the focus.

The following table summarizes what keys end users can use in which JS remote form controls:

Accessibility and tabbing order

For increased accessibility in your applications, you should carefully consider the tab order of the controls in your forms. In general, it is good practice to make the tab order run consecutively, that is, from one control to the next in a logical order: this could be from left to right starting at the top of the form, but the exact order may depend on the specific functions of your app. The tabbing order of the controls in the form is also used by the screen reader to “read out” or describe the contents of the form, so it’s important how you specify the tabbing order of the fields in your form.

Form Example

With the ARIA labels specified and the correct tabbing order defined, the end user can navigate the controls on a form from the keyboard, and, in addition, the screen reader can describe each control or area of the form page in turn.

Consider the following JavaScript remote form. In the first image, as the end user tabs to the First Name edit field, the field border will highlight, the screen reader will say aloud: “First name, Edit text”, and if there is a value in the field, as in this case, it will read that as well: “First name, Peter, Edit text”.

Using the Tab key, the end user can move from one control or area of the form to another. Successive tab presses will enter the Tab bar at the top of the form, then the Right and Left Arrow keys can be used to move along the Tab bar, and the Return key can be used to select a tab. Once the tab is selected, the screen reader will describe the item selected: “Careers / Education Experience, Tab selected, 2 of 4”.

JS Themes

You can apply a consistent set of colors to JavaScript components on a remote form by selecting colors defined in a theme – underlying a theme is a set of CSS styles which are applied to controls at runtime on the client. Omnis has a number themes which you can use to style your JS client applications: a default theme, which provides an effective and pleasing UI across all JS controls and devices, and a range of different color themes, such as the dark theme, which provides an alternative set of darker colors.

When designing a remote form, you can change the current theme in the JS Theme Select dialog by pressing Ctrl-J/Cmnd-J, or select the JavaScript Theme option from the View menu (you can edit a theme from here by Right-clicking on a theme or background of the dialog and selecting the Open JavaScript Theme Editor option). To select a theme, click on the theme preview and close the dialog. The selected theme is applied to the current remote form and to all the remote forms in your library since the theme is an Omnis-wide preference. The following screenshot shows a Remote form with the ‘vintage’ theme selected.

The current theme is stored in the Omnis root preference, $javascripttheme (in $root.$prefs), which is set to the default theme initially, and controls which theme is used to render themed colors for all remote forms in design mode (but you can set or change the theme on the client using the ‘settheme’ client command; see later).

Selecting Colors

When you select the color for a JS control, you can choose a theme color from the color palette in the Property Manager, under the Theme color button (the default, on the left) in the color picker toolbar. For example, select a button, click on the Text tab in the Property Manager and click on the color palette for $textcolor.

The color setting for most properties, such as $textcolor, is set to kColorDefault, which means the appropriate color from the current theme is used. If a text color property is set to kColorDefault, and it sits on an element with a background color which comes from a themed color constant, the text will be rendered in the associated <theme color>Text color. For example, if a button’s $buttoncolor is set to kJSThemeColorPrimary and its $textcolor is set to kColorDefault, the text will be rendered using kJSThemeColorPrimaryText.

The colors defined in a theme and shown on the color palette have corresponding color constants, whose names begin kJSThemeColor, as follows:

Theme Editor

You can create JS themes, or modify an existing theme using the JS Theme Editor, available under the Add-Ons > Web Client Tools menu option and select JavaScript Theme Editor.

The editor provides a preview of the current theme on the right side of the editor screen, and you can click on an area or text item within the preview to view or set its color (you can also set colors by clicking in the list on the left).

The colors in a theme are categorized as Primary and Secondary, plus there are specific color for errors, borders, dialogs, and so on. The primary colors are used throughout your application and set the general tone or style of the theme, while the secondary colors provide an accent to certain parts of the UI.

Creating a new theme

To create a new theme, you can duplicate an existing theme and make any changes to the copy. To do this, open the Theme Editor, select a theme from the dropdown list or use the default theme (selected initially by default), click on Save as and give the new theme a name – then change individual colors and use the Save option to save any modifications. The Set theme option sets the $javascripttheme preference to the theme currently shown in the editor. If you make any modifications to the current theme, all open remote forms will be updated automatically.

A theme is stored as a .json file and an associated .css file in the ‘html/themes’ folder. When deploying your application, the themes folder and its contents must be copied to the corresponding location on the Omnis App Server.

When designing the colors in a new theme, you may want to follow the guidance provided by the Google Material design system, which may help you create a theme containing colors which complement one another and provide maximum useability and accessibility across different platforms and devices. Google provides a Material Color Tool which you may find useful to create a set of complementary colors for the dark/light variants.

Themed Icons

Omnis supports the use of SVG images for component icons. SVG icons can be “themed” which means an icon will be tinted using the control’s text color as specified in the current JS theme (the ‘fill’ color in a themed SVG file is set to the text color from the theme). This allows a single themed SVG icon file to be used with different themes and its color is set automatically.

Omnis includes an icon set named ‘material’ which contains over a 100 themed SVG icons. The material icon set is located in the ‘iconsets’ folder and if you have used any of the icons in your app the icon set needs to be copied to the Omnis App Server when deploying your application.

The following are examples of a single icon from the material icon set with different color themes applied (note the icon is rendered using the button text color):

SVG icon files can be ‘themed’ using the SVG Themer tool under the Tools >> Add Ons menu option. You can open a single SVG file, preview it using one of the test colors (note the preview colors are not saved to the file), and save it using the Export button.

The SVG Themer tool converts a standard SVG image file into an Omnis themed SVG file format: specifically, the first element in the root svg element in the original file is converted to a ‘g element’ with fill="var(--om-tint-color)" and id ‘omTheme’ which reference the color from the current theme. The Image Data tab shows the source for the converted SVG file which you can edit if required, although the converter should convert the SVG file as necessary.

Like other SVG icon files, any themed SVG icons need to be placed in an icon set folder. For example, you could create or acquire a set of SVG icons and convert them using the SVG Themer tool ready for use in your JS client apps. In order to use your own SVG iconset(s), you need to add the icon set name to the $iconsets library property in your library, which can contain one or more icon set names separated by commas.

HTML Template & Client theme setting

The JS client’s theme is set in the ‘data-themename’ attribute in the omnisobject div in the HTML file for your remote form, e.g. data-themename="dark".

The special value of “_JT_” is used in the HTML template (jsctempl.htm) which is replaced this with the current value of $javascripttheme when Omnis generates the HTML file for your remote form.

In addition, the 'data-appid' attribute specifies the application a page belongs to. It defaults to '<lib name>.<form name>' each time a form is tested (the '_APPID_' placeholder in the template .htm file is replaced when a from is tested).

The current theme: $construct

The current theme is passed in the $construct row parameter, in a column named theme.

Changing the Theme

You can change the theme on the JS client in your code using the ‘settheme’ client command ($clientcommand) which takes a row parameter whose first column is the name of the new theme. Note that a remote form needs to be reloaded in the browser for a change of theme to take effect. Once you have set the theme using the ‘settheme’ clientcommand, the client stores it in the client localStorage and will use that theme for subsequent visits to the page. To revert to the default theme specified in the HTML page, you need to call the 'settheme' clientcommand, passing an empty string as the theme name (or clear the client's localStorage).

http://127.0.0.1:9110/jschtml/jsForm.htm?omTheme=dark

Active and Enabled Properties

All JavaScript controls have the $active property, which is set to kTrue for all new controls (except the Label Control which is kFalse). The $active property allows you to control whether a component is active (kTrue) or inactive (kFalse) – in an inactive state, a component cannot be interacted with at all, so the end user cannot tab to it, the contents cannot be selected or scrolled (in a list), and user clicks on an inactive control are ignored. Therefore, when a control is inactive, it is completely ignored in the tabbing order, so when the end user tabs the focus will jump to the next active control – in the context of accessibility, an inactive component will be ignored.

The $enabled property allows you to disable a control, and many controls have this property, including the Bar Chart, Combo Box, Data Grid, Date Picker, Edit, List, Map, Pie Chart, Rich Text, and Tree list.

Default Inactive Appearance

When controls are inactive, that is, when $active=kFalse, they tend to have their own default inactive appearance, which is often a gray overlay or background. If you set $defaultinactiveappearance to kFalse you can override this default inactive appearance. The default value for $defaultinactiveappearance is kTrue to maintain backwards compatibility.

Default Disabled Appearance

All controls that have the $enabled property have the $defaultdisabledappearance property. When $enabled = kFalse the $defaultdisabledappearance property defaults to true and the 'omnis-notenabled' css class is applied to the client element of the control. If $defaultdisabledappearance = kFalse, this class is not applied, which is what sets the text colour to grey when disabled.

Context Menus

Context menus are opened if $active of the control is kTrue, regardless of $enabled. If you wish to disable this behavior for a control, you should use Quit event handler (discard event) when handling evOpenContextMenu in your event handling methods for the control.

Creating Customized JavaScript Components

You can add your own customized JavaScript components to the Component Store under your own tab. This might be useful if you always want to create edit controls or buttons with certain properties (e.g. colors or fonts), so creating your own custom JS components might save you some time. You will need to edit the Component Store library (comps.lbs) to change the contents of the Component Store.

To create your own customized JS components, you need to create a new JS remote form in the Component Library, copy any components you want to customize from the JSFormComponents form, add them to your own form, and then customize then as required.

Opening the Component Library

You can open the Component Library by Right-clicking on the Libraries node in the Studio Browser tree and selecting the Show Comps.lbs option. Unless you want to copy classes from another library to the Component Library, it is recommended that you close all other libraries before you edit the Component Library.

When you select the Show Comps option, the contents of the Component Library is displayed in the Browser Browser. You can switch the Browser to Details view and click on one of the column headings to show the different types of component either by Name or Type. You can hide and show specific types of class in the Component Library using the Class Filter option in the Browser.

Adding your own form and components

We recommend that you do not change the components in the JSFormComponents form since these are the default components that appear in the Component Store, rather you should create your own customized components using the following method.

Add a new JS remote form class to the Component Store library (comps.lbs); note that the name of the new remote form will be used as the tab name in the Component Store toolbar so choose something appropriate. Set the $componenttype property of the remote form to kCompStoreDesignObjects using the Notation Inspector: to do this, open the Notation Inspector, click on the Search button (the cursor changes to a spy glass), click on your remote form in the Studio Browser, and in the Property Manager set $componenttype to kCompStoreDesignObjects (note the $componenttype property will only be displayed via the Notation Inspector). Then set the $layouttype of the new remote form to kLayoutTypeSingle (not kLayoutTypeResponsive).

With your new remote form open, open the JSFormComponents remote form next to it (this form contains all JS components). Drag any JavaScript controls you want to customize from JSFormComponents into your new remote form and change their properties or appearance as required. After you hide the Component Store library, the customized JavaScript controls will be available in the new group in the Component Store.

JavaScript Component Templates

When you add a JavaScript Component to a remote form in your code at runtime, Omnis uses a template to create the object with all the required properties and methods. There is a template for every type of JavaScript Component, and the templates are located in the \studio\componenttemplates folder.

The component templates match the default components in the Component Store, and should not be edited. There are templates for report and window class components as well.

Position Assistance

When you move or resize objects in the Remote form design editor (or window class editor), colored dashed lines and arrows will appear automatically that enable you to easily align and distribute controls and other objects in relation to the design window edges or center and any other nearby objects – this is called Position Assistance.

As you move or resize objects on a remote form, colored lines are shown automatically, and objects will snap into position to help you arrange the objects in a form. In addition, the position and size coordinates are shown directly under the object or group of objects. For example, when you place several fields on a form, Position Assistance can help you align their left-hand or top edges and ensure they are spaced evenly. Position Assistance is also provided when you use the Arrow keys to position or resize objects.

The Show Position Assistance option on the remote form context menu allows you to toggle the Position Assistance feature (enabled by default). There is a single setting for this, shared by all editors, that is saved to omnis.cfg when Omnis shuts down.

The positioning lines are drawn using the colorhighlight color in the system group of appearance.json. The entry positionAssistantKeyboardTimer in the ‘ide’ section of the config.json specifies the time that the position assistance remains visible after you stop pressing an arrow key; this defaults to 750 milliseconds.

When positioning objects in the center of a remote form, Position Assistance uses the center of the current layout breakpoint, not the center of the remote form design window.

Position and Size coordinates

When you move or resize an object, or group of objects in a remote form class, the position and size information for the object or group is shown automatically. In addition, position information is provided when you drag an object from the Component Store and drop it onto a remote form.

The current Position of an object (its x,y coordinates) is displayed in a helptip or colored box just below the object, when you move an object, or when you drag an object from the Component Store and drop it onto a remote form (see above left); the helptip shows the X,Y position of the top-left corner of the object relative to the top-left corner of the remote form (or window class design screen).

The current Size of an object is shown (width x height) when you resize it (see above right). When more than one object is selected, the position or size corresponds to the area of the whole group of selected objects.

The positionAssistantShowsPositionOrSize item in the ‘ide’ section of the config.json file allows you to enable or disable this feature (the default is true, so the position or size is shown).

Positioning & Aligning Objects

When the Position Assistance is enabled, Omnis gives precedence to distribution over alignment, and within alignment it prioritises the top edge, over the center, and the center over the right edge. As soon as a visual guide is displayed for a target, any other targets that would also cause the object to move in the same axis are dropped.

As you move or size objects Omnis displays a visual guide when the object(s) being moved or sized are within +/-2 pixels of a specific alignment or distribution target, e.g. an alignment target is the top edge of another object or objects. When you release the mouse, the objects will snap to the displayed target. Position Assistance is applied to objects dragged from the Component Store, as well as objects being moved or sized within a design window. Position Assistance is provided when moving an object even if the adjacent objects are contained inside a container field.

When sizing objects, assistance is not provided if the objects being sized have more than a single container, that is, the component that is the parent of the objects – this can be more granular than a field, such as for complex grids, there are several containers such as the row and header sections.

Position Assistance is provided within each section of a Complex Grid, that is, the row and header sections of a Complex Grid, and the above behavior for container fields applies to each section independently.

Distribution

Position Assistance attempts to distribute objects by allowing them to be evenly spaced. The visual guide for distribution is a line drawn between the objects with arrow heads.

The guides are drawn for as many objects as possible, immediately adjacent to the object(s) being moved or sized. Position Assistance works best when objects are already reasonably well arranged, either vertically or horizontally, so for more complex arrangements, with overlapping fields may result in no visual guides being presented.

Alignment

Position Assistance attempts to align objects by giving them the same top or bottom coordinate, or centered relative to each other. When you try to center objects, you only get visual guides when moving objects, and when the appropriate side of the rectangle representing the objects being moved either fully encloses or is fully enclosed by the appropriate side of the object in which it is being centered. The following illustrate how the Position Assistance is applied for different cases when aligning objects.

Top alignment

Bottom alignment

Left alignment

Right alignment

Positioning for Paged Panes (Container fields)

Assistance is provided to help you align fields inside a container field, such as a Paged Pane. In addition to the left/right, top/bottom positioning, when you move an object inside and near to the center of a container, a line across either the vertical or horizontal center of the container is drawn and the object will snap to the line.

When positioning objects inside a Paged Pane (or any container), Position Assistance is only provided for the controls within the Paged Pane itself, so objects outside the Paged Pane are not included in the current object grouping. Similarly, if you are positioning objects outside, but near to a Paged Pane, the objects inside the Paged Pane are not included in the current grouping.

Position for dropping objects

Information about the drop destination is shown when dragging objects on a remote form design window into a Complex grid or Paged pane (shown in addition to the x-y coordinates). For example, as you drop a field into a Complex grid section, the position assistance will display the section type, such as ‘Header’, ‘Horizontal header’, or ‘Row’, as shown below.

Group Selection & Object Properties

When you select a group of objects, Omnis shows a colored line around the group and a single set of selection handles for the group (this also applies to objects in a window or report class). If the objects share any properties these are shown in the Property Manager allowing you to set the properties for all the objects in the group.

If you click on an object inside the group of selected objects, Omnis shows selection handles around just this object and shows the properties of the selected object in the Property Manager, but retains the selection line around the group, as shown below as a gray line:

You can click on another object within the group selection, and in this case selection handles are shown on the new selected object and its properties are shown in the Property Manager. If you want to restore the state where the properties reflect all the selected objects in the group, you can Shift-click on the currently selected object.

Note that when clicking, properties are not shown until you release the mouse. This allows you to drag the selected objects without changing the properties displayed in the Property Manager.

The color of the selection rectangle shown around a group of objects is one of two colors in the ‘IDEGeneral’ section of appearance.json:

• designselectedgroupoutlinecolor
  the color of the rectangle around a selected group (when no single object is selected)

• designselectedgroupoutlinesinglecolor
  the color of the rectangle around a selected group when a single object is selected inside the group

Design Guides

You can add guides to a Remote Form to help you design and layout the form (design guides are also available for window classes). The Show Position Assistance option on the form (window) context menu must be enabled to use design guides.

To add a Design Guide to a form, hold down the Ctrl/Cmnd key and click the red ‘+’ box at the top or left side of the form. Clicking the ‘+’ creates a new guide at the default location of 50 pixels. If a guide already exists at the default location a new guide is added 20 pixels from the existing guide, e.g. at 70 pixels, then at 90 pixels, and so on.

To move the guide, hold down the Ctrl/Cmnd key and drag the guide into position; a guideline will highlight in red if you hold down the Ctrl/Cmnd key and hover the pointer over the guide, allowing you to move it. To remove a guide, drag it off the form beyond the top or left edge. When you move a guide towards the right or bottom edge of the form, it will become a right- or bottom-aligned guide.

When design guides are set and an object is moved or resized, it will snap to the nearest guide or where vertical and horizontal guides intersect.

The $designguides property stores the set of guides for the form as a comma separated list. Each guide is expressed as a letter and number defining its type (TOP, LEFT, RIGHT, or BOTTOM) and its position (in pixels) from the edge of the form. For example, T35,L25,R35 represents the guides TOP 35px, LEFT 25px, and RIGHT 35px. The value of $designguides is set as you place the guides in the remote form, or you can set it in the Property Manager.

Guides can be inherited, so when they are added to a super class all sub-classes will use the same design guides.

In addition to design guides, you can see the space between a selected object and the objects around it. When an object is selected and the Ctrl/Cmnd key is held down, as you move the pointer over other objects, containers or the remote form background (or window), distance measurements are shown in blue around the selected object.

Activity Control

Group	Icon	Name	Description
Other		Activity	Animated image to display during a long process or Omnis Server activity

The Activity Control provides an animated image to show some activity on the client, for example, during a long list calculation or search operation on the Omnis Server.

There is an example app called JS Activity in the Samples section in the Hub in the Studio Browser showing the different activity controls available and how to set a custom animated Gif; the same app is available in the JavaScript Component Gallery.

The Activity Control has the following custom properties:

The $activitystyle property specifies the style of the control, one of the following constants:

Constant	Description
kJSActivityBar
kJSActivityBlock
kJSActivityCircular
kJSActivityLinear
kJSActivityLinearDots
kJSActivitySmallSpinner
kJSActivityCustomLink	the image in $customlink is used

Custom Link

The following code assigns a custom link to the activity control:

Calculate iCustomLink as 'http://www.mywebsite.com/images/animated1.gif'\
Do $cinst.$objs.Activity.$customlink.$assign(iCustomLink)

As an alternative to using the Activity Control you could consider using the showloadingoverlay client command to show a loading indicator (animated image) over a remote form or specific control: see Custom Loading Indicator.

Background Shape

Group	Icon	Name	Description
Shapes		Background Shape	Object you can set to Rectangle, Line, Triangle, or Image

The Background Shape allows you to draw various shapes in your remote forms: you assign the shape to the object by setting the $::shape property to one of the kJSBack... constants. It can be assigned one of a number of shapes including: Ellipse/Circle, Rectangle/Square, Rounded rectangle/Square, Triangle, Horizontal Line, Vertical Line, and Image.

You can assign a solid color or gradient fill to a background component by setting its $backpattern, $forecolor and $backcolor. You can also assign the stroke (border) thickness and color by setting $strokewidth and $bordercolor.

There is a sample app called JS Background in the JavaScript Component Gallery, and under the Samples option in the Hub in the Studio Browser showing the various background shapes.

Background Images

You can create a background image by setting $::shape to kJSBackImage, and setting $imagepath to a URL relative to the Omnis tree during development or your web server for deployment; you can click on the $imagepath property to select an image.

You can drop an image from your system / desktop on to a Remote Form to create a background image. In this case, the $imagepath property is set to the path of the image, which is copied automatically to the folder ‘images/libs/<libname>’ in the html folder in the Omnis tree. The image can be a PNG, JPG, JPEG or SVG.

The $keepaspectratio property is set to kTrue by default which ensures the image will keep its aspect ratio.

Animations and Changing Attributes

The Background Control has the $animation and $attr properties which allow various animations or effects to be assigned to the object, such as fading the object in or out, or for $attr various attributes of the object to be changed. The $animation and $attr properties must be assigned at runtime and accept a string containing various parameters depending on the function or attribute.

There is an example app called JS Animations in the Samples section in the Hub in the Studio Browser showing how can use animations to move and fade objects to create a richer UI; the same app is available in the JavaScript Component Gallery.

Apart from the scale attribute, the browser must support the Raphael JavaScript library to allow animations and attribute changes (more details about the parameters you can use are available from http://raphaeljs.com).

The $animation property follows the general format:

function( newvalue, time(milliseconds), ease(optional), complete_context(optional) )

The functions available in $animation are:

• scale
  increases and decreases the size of the object

scale( newvalue, time(milliseconds), ease(optional), complete_context(optional) )

• alpha
  changes the transparency of the object

 alpha( newvalue, time(milliseconds), ease(optional) , complete_context(optional) )

• rotate
  rotates the object

rotate( newvalue, time(milliseconds), ease(optional) , complete_context(optional) )

For example:

Calculate $cinst.$objs.backgroundobject.$animation as "alpha(0,500,<>,fade_complete)"

fades the object to alpha value 0 over 500 milliseconds using a ‘slow, faster, slow’ easing method (see below) and when complete calls evAnimComplete with a parameter "complete_context".

You can use the complete event to chain the next animation, therefore to pulse an object you could use:

Calculate $cinst.$objs.backgroundobject.$animation as "alpha(0,500,<>,fade_off)"

You could use the event handling method:

On evAnimComplete
  If ( pAnimContext="fade_off" )
    Calculate $cwind.$objs.backgroundobject.$animation as "alpha(0,500,<>,fade_on)"
  Else if ( pAnimContext="fade\_on" )
    Calculate $cwind.$objs.backgroundobject.$animation as "alpha(0,500,<>,fade_off)"
End If

Ease transition effects

The following ease transition effects or “eases” are supported for animations:

Changing Background Attributes

The $attr property allows you to change various attributes of the object, such as their transparency. For example, you can assign an alpha gradient to an object using the following method:

 # note must be assigned at runtime
 Do $cinst.$objs.backgroundobject.$attr.$assign('attr(gradient, 0-\#FFFFFF:10-\#FFFFFF)')
 Do $cinst.$objs.backgroundobject.$attr.$assign('attr(opacity,0.0)')

Bar Chart Control

Group	Icon	Name	Description
Visualization		Bar Chart	Displays a bar chart based on a list of values

The Bar Chart control allows you to display a simple dataset contained in a list variable as a bar chart. Omnis Studio provides two chart controls: a Bar Chart control and a Pie Chart control. The data to be represented in both these controls is contained in a list variable which is assigned to the $dataname property of the control.

There is a sample app for both the JS Bar chart and JS Pie chart in the JavaScript Component Gallery, and under the Samples option in the Hub in the Studio Browser.

There are various properties (on the Appearance tab in the Property Manager) that allow you to control the appearance of a Bar or Pie chart. The bars and segments use a set of default colors, but you can specify your own colors at runtime.

For Bar charts you can set $chartdirection to vertical (the default) or horizontal bars, the style of the bar ends as the $barends property (kJSBarEndSharp is shown below), and you can display data values when the end user’s mouse hovers over the bar by setting $showvalue to True (the default).

Specific properties for Pie charts are described under the PieChart Control section.

List data structure

To draw a simple bar or pie chart, the list variable assigned to the $dataname property of the chart component needs to contain at least two columns. The first column contains the value for the data point, and the second column contains the label or name for the data point. For example, to construct a simple bar chart showing a list of figures for sales agents, you could use the following method:

# create vars bar_data (List), amount (Number), name (Char)
Do bar_data.$define(amount,nam)
Do bar_data.$add(120,'Steve')
Do bar_data.$add(230,'Dave')
Do bar_data.$add(245,'Anita')
Do bar_data.$add(125,'Claire')
Do bar_data.$add(280,'Ben')

With the $showvalue property enabled (a value is displayed when the end user passes the pointer over each bar), the method produces the following chart.

When $showvalue=kTrue, the popup label will use $backcolor for the text and $textcolor for the background of the label so that it can be seen against the background of the control.

Main and Axis Titles

There are a number of properties in the Bar Chart to allow you to add a main title, as well as titles for the x and y axis. In addition, there are properties to show (the default) or hide the x and y axis details or units.

The following chart shows all the titles and axis details.

Text and Axis Colors

The $textcolor and $axiscolor properties allow you to set the color for text and axis, including theme colors; $textcolor applies to the color of the title, labels, axis text, and legend in the chart, where applicable.

The $axiscolor property for a Bar chart applies to the color of the both axes lines, and the unit lines which run across the bar chart.

When set to kColorDefault, both properties will set their color dynamically according to the color of $backcolor.

Bar & Segment Color

You can specify your own colors for the bars or segments in a Bar or Pie chart using the runtime-only property $colorlist, rather than using the default colors. You need to create a list of strings representing CSS colors and assign the list to the $colorlist property, for example:

 Do iColorList.$define(iColor)
 Do iColorList.$add("\#CE3D3D")
 Do iColorList.$add("rgb(81, 206, 61)")
 Do iColorList.$add("hsl(230, 60%, 52%)")
 Do iColorList.$add("Gold")
 Do $cinst.$objs.PieChart.$colorlist.$assign(iColorList)

The accepted color formats are: Hex Code RGB, Decimal Code RGB, HSL, or Color Name, and the formats can be mixed throughout the list as in the example above.

If there are not enough colors available in the color list for the number of segments in the chart, then Omnis will repeat the colors in $colorlist. Therefore, if you want to avoid repeating colors, create a color list containing more colors than you will generally need to cater to the number of data points in your chart.

Theme Colors

The $colorlist property can contain kJSThemeColor... constants to allow you to match the colors in the current JS theme. Note you cannot use standard Omnis color constants (such as kRed, etc.) in this context, since these are taken as literal text on the JS client.

Events

Bar charts report the evBarClicked event with the bar clicked in the pBar parameter. Similarly, Pie charts report the evSegmentClicked event with the segment clicked reported in pPieSegment.

# event method for bar chart, message is a field on the form
On evBarClicked
  Calculate message as con("Bar clicked: ",pBar)

# event method for pie chart
On evSegmentClicked
  Calculate message as con("Segment clicked: ",pPieSegment)

Button Control

Group	Icon	Name	Description
Buttons		Button	Standard pushbutton which reacts to clicks

The Button control is a basic pushbutton that the end user can click with the pointer or tap on a mobile device to confirm something or initiate a process, such as an OK or Cancel button, or a Print or Send button. Alternatively, you can use a Split button which combines a button and droplist of preset options. Many of the sample apps in the JavaScript Component Gallery contain buttons, including plain text buttons or ones with icons.

The text is specified in $text as a single line of plain text, unless $textishtml is set to true and the text is treated as HTML; see below. A button can display an icon, specified in the $iconid property (under the Appearance tab), which can be an SVG or PNG image file from an Icon set chosen from the Select Icon dialog. See earlier in this chapter about Component Icons and specifically SVG Icons.

In addition to the icon you can assign to a button, you can add ‘Icon Badges’ to button icons to provide additional information, such as a number count, a notification, or an alert: see Icon Badges.

The Button control has the following text and appearance properties:

Text Position

In addition to $align, there are several layout properties that give you greater control over the positioning of the text and icon on the button (also applies to the text for the Trans button and Split button components):

When $spliticonandtext is kTrue, the icon is positioned at the edge of the button (on the left by default). The text can be aligned in the remaining space with the $align or $vertalign property.

You can enter negative values for the properties requiring a number of pixels, which may be required in some circumstances.

You can use the existing $::vertical property to arrange the icon and text vertically, and $textbeforeicon to display the text before the icon; after setting these to kTrue, you can use the align and padding properties to position the text.

Flat Button Style

The flat style of a button is controlled using the $isflat property. The style for all new buttons (and buttons in converted libraries) is flat (from Studio 10.2 onwards), so $isflat is set to true. In addition, if the value of $buttonborderradius in converted libraries is set to 0, it will now be changed to the new default of 4; any other value will be retained on conversion.

When $isflat is disabled a button has a small drop shadow and when the button has the focus a larger difused drop shadow is displayed around the button.

Disabled Appearance

The appearance for flat buttons when they are disabled ($active = kfalse) is as follows: if $isflat is kTrue (the default), the button back color will become transparent (if it isn't already) and the text color will take on the disabledText color. If $isflat is kFalse, the button back color will take on the disabled color and the button text color will take on the disabledText color.

In addition, if $bordercolor for buttons is set to kColorDefault the color will match $textcolor. When disabled ($active = kFalse), the border will match the disabled text color to maintain a consistent disabled appearance.

HTML Button Text

When set to kTrue the $textishtml property specifies that the text for the button (entered in $text) is treated as HTML, therefore any HTML can be used to style the text. For example, you can insert a line break by setting this property to kTrue, and using <br> in $text for the button wherever a line break is required.

The $textishtml property also allows other styling of the button text using various character and color attributes. Note that design mode does not render the HTML (the raw HTML code is displayed), and if you use attributes in the HTML they must be enclosed in single quotes.

Events

When a Button is clicked an evClick event is triggered which you can handle in the event handling method behind the button.

On evClick
  Do something…

Example

The sample apps in the Applets section in the Hub have an About window which is loaded into a subform and displayed using an animation; see the Animations section for the About button code. The Close button on the About windows simply closes the About form by sending a message to the main remote form to run a method; it has the following code:

On evClick
  Do $cwind.$closeAbout()

In this case, $cwind is a reference to the main parent form which contains a method called $closeAbout which contains code to fade out the About form and reset various buttons on the main form.

Camera Control

Group	Icon	Name	Description
Media		Camera	Allows the end user to capture images, scan QR codes or barcodes

The Camera control allows the end user to capture images or scan QR codes and barcodes from within your application; this could be the camera on a mobile phone, tablet, or laptop, or a video cam attached to a desktop PC.

You can set the capture mode by setting the $cameraaction property to one of the kJSCameraAction… constants. When returning an image the $dataname property must be set to a Character or Binary type instance variable to receive the image (not required for barcode scanning); for Character variables, the captured image is stored as base64 encoded data.

Camera Actions

The $cameraaction property allows you to set the action or mode on the current device for the camera to capture an image, QR code or barcode. $cameraaction is a runtime only property that should be assigned a row with 1 to 3 columns as row(action [,mode, deviceId]), where action is a kJSCameraAction… constant, mode is a kJSCameraFacingMode… constant, and deviceId is a character string of the device ID.

Camera Permission and Testing

Use of the camera requires the end user to accept a prompt which is popped up automatically when trying to access the camera for the first time. This cannot be bypassed, so if the end user denies access to the device Camera, the actions will not work.

In addition, camera access using a mobile device is only possible when serving over HTTPS. Therefore, you will not be able to access the camera on a mobile device connected to the same network, as Omnis only serves over HTTP for testing. However, you can test a remote form that uses the Camera control locally on your development machine. A utility to serve your localhost server over the internet using HTTPS can be used as a workaround, such as ngrok.

Image Aspect Ratio

If specified, the $aspectratio property forces the Camera control to maintain the aspect ratio of the image. You need to specify a number representing the aspect ratio, such as:

Providing a non-standard aspect ratio may lead to unexpected results, such as the camera feed not showing at all. Note that the orientation of the camera is set by the device, therefore a desktop/laptop camera will tend to display in landscape orientation, while a mobile camera will show in portrait orientation.

Capture Size

The $capturesize property should be an integer and forces the size of the captured image; if empty, the image is captured at the size specified on the device camera. The value specifies the size of the longest edge of the image using the $aspectratio to set the other edge. For example, if a standard ratio of 4:3 is used, and the users device captures at 1024 x 768, a $capturesize value of 640 will produce an image of 640 x 480.

Image Type & Quality

The $imagetype property should be set to a constant to indicate the type of image to be captured. Due to limited support across browsers, only PNG or JPEG (kJSCameraImageTypePNG or kJSCameraImageTypeJPEG) are supported.

If $imagetype is set to JPEG, you can specify a quality level in $imagequality to reduce the data size, on a scale of 0-100 with 100 being the maximum quality.

Events

The Camera control reports the following events:

Due to the web browsers required only to support PNG files we include an integer parameter, pImageType, to state the image data type, in case the selected type was not supported by the browser. In the case that a browser does not support the selected type, it will always use PNG. Most modern browsers support JPEG, which is why we have included JPEG support, but it is best to check for your own use case before using JPEG over PNG.

Chart Control

Group	Icon	Name	Description
Visualization		Chart	Displays different chart types including Line, Bar, Radar, Pie, Doughnut, Polar Area, Scatter and Bubble

The Chart component allows you to create different types of charts from list data to display in a remote form. It uses the Chart.js JavaScript library, an open source library available under the MIT license, which you can use in your applications (with the correct license attribution). The JS Chart control provides you with a wider range of chart types than the individual Bar chart and Pie chart JS components, and provides a modern interface for displaying charts, with scalable, vector based shapes and animated transitions.

The $charttype property sets the basic chart type, a kJSChartType... constant, and the following types of chart are available.

All chart types can handle multiple datasets, although in practice some chart types are more suited to certain types of data than others. For bar charts, multiple datasets are stacked next to each other, while in most other chart types, multiple datasets are overlaid each other.

There is an example application called JS Charts in the Samples section of the Hub in the Studio Browser demonstrating all the types of chart available. The following image is a Labelled Bar chart in the example app:

The following is a Labelled Line chart in the example; note the data is displayed in a popup when you pass the pointer over a data point (e.g. Dataset 2 for April is shown).

The following is a Labelled XYR Bubble chart; in this case, each data point is plotted using X,Y coordinates and a third value is shown as the Radius (R value) of the bubble indicating the magnitude of the value.

The following shows two Pie types, a Doughnut where values are represented as percentages of the total pie (the same as a pie chart but has an area cutout of the center), and Polar Area where the radius (area) of a segment indicates its value.

Chart Data

As with other chart types in Omnis, the Chart control gets its data from an Omnis list variable, and the structure or contents of the list needs to match the type of chart you wish to draw. The chart list should contain 2 columns, with each row in the list representing a dataset: Column 1 is the data (a list of values for each dataset), and Column 2 is a list of display options relating to that dataset, such as bar or segment colors.

The Data list for the chart (in column 1) will vary depending on the chart type as follows:

• The data list variable for Labelled and Area chart types (e.g. Bar and Pie) requires 2 columns, usually with a Label and a Value:
  Column 1, X axis: Label type data, such as months, exam grades, etc.
  Column 2, Y axis: Value, such as average temperature, number of students, etc.

• The data list variable for Scatter (XY) and Bubble (XYR) charts requires 2 or 3 columns, respectively, and are in effect points (coordinates) on the chart:
  Column 1, X axis value.
  Column 2, Y axis value.
  Column 3, R value: Bubbles have a Radius, which is given in pixel size.

In the JS Chart example library in the Hub, the chart list for the Labelled Bar chart has the following structure; the main chart list has 2 columns, iData and iOptions. The Data list in column 1 has 2 columns, Label and Value (Y), as shown:

The Options list in Column 2 of the main chart list must be a list of 2 columns containing key-value pairs of Options to apply to that dataset, which are generally display options (colors/rounding on bars/etc).

Looking at the Labelled chart in the JS Chart example library, the Options list in column 2 of the main chart list has the following structure: Key and Value, with entries for label, backgroundColor, and borderColor:

You can examine the code in the example library to see how the chart data is constructed, for example, look at the $getDatasetOptions class method in jsCharts. The Data and Options data in the example library produces the following chart:

Any options described in the Chart.js documentation should work, however the following are the most useful:

More options can be found in the Chart.js documentation at: https://www.chartjs.org/docs/latest/charts/. You can look in the Chart Types section to find out which options apply to each chart type, e.g. under ‘Styling’ https://www.chartjs.org/docs/latest/axes/styling.html.

Any options that can accept arrays of values should be supplied as comma separated values, for example, to have three different background colors you could assign the following line as a value for the backgroundColor key:

'rgb(255,0,0),rgb(0,255,0),rgb(0,0,255)'

Properties

In addition to controlling the contents of a chart by setting up the list data, you can set various properties for the different chart types. The Chart component has the following properties (some properties may not apply to all chart types).

Events

The Chart control sends the evClick and evLegendClick events with the following event parameters:

If $legendclickhidesdata is true (the default), when you click on an item in the legend it is toggled on/off and the dataset in the chart is hidden or shown; its state is reported in the pHidden parameter for evLegendClick.

Mixing Chart Types

In some cases you can mix chart types. A good use case of this is to show a line of best fit on a scatter chart. You can do this by setting the 'type' on the dataset which you wish to be different to your charts $charttype property. Here is an example of how you could achieve this:

Do iData.$define(lTemp,lSales)
Do iOptions.$define(Key,Value)
Do iChartList.$define(iData,iOptions)
Do iData.$add(14.2,215)

Do iData.$add(16.4,325)
Do iData.$add(11.9,185)
Do iData.$add(15.2,332)
Do iData.$add(18.5,406)
Do iData.$add(22.1,522)
Do iData.$add(19.4,412)
Do iData.$add(25.1,614)
Do iData.$add(23.4,544)
Do iData.$add(18.1,421)
Do iData.$add(22.6,445)
Do iData.$add(17.2,408)

Do iOptions.$add("backgroundColor",kJSThemeColorPrimary)
Do iChartList.$add(iData,iOptions)

Do iData.$clear()
Do iOptions.$clear()

Do iData.$add(11,150)
Do iData.$add(26,650)
Do iOptions.$add("type","line")
Do iOptions.$add("borderColor",kJSThemeColorSecondary)
Do iChartList.$add(iData,iOptions)

Note how the second dataset, used to portray a line of best fit, is calculated manually, i.e. there is no function to calculate an actual line of best fit.

Check Box Control

Group	Icon	Name	Description
Buttons		Check Box	Check box for on/off values

The Check Box control can represent On / Off or Yes / No values and is typically used to allow the end user to turn an option on or off, or accept or decline a preference. Several of the sample apps in the JavaScript Component Gallery feature check boxes, such as the Map example.

The variable you specify in the $dataname property of a Checkbox should be a Number or Boolean variable. The $text property specifies the label text for the Checkbox. The $checkboxcolor property specifies the color for the Checkbox (and check boxes when they appear in Lists, Data grids & Tree lists).

When a Checkbox is clicked an evClick event is triggered with the current value reported in the pNewVal parameter.

Example

There is an example app called JS Radio and Checkbox in the Samples section in the Hub in the Studio Browser to show how you can use a check box (and a Radiogroup); the same app is in the JavaScript Component Gallery. The example uses a series of check boxes and a radio button group to filter a list of people based on their gender and age group. The group of controls on the remote form could look like this (the following screen shows the ‘professional’ JS Theme in use):

The $dataname for each of the check boxes is iAgeRange1, iAgeRange2, and iAgeRange3 respectively. These are all Boolean variables defined in the remote form, and the $dataname of the Radio button group is iFilter, which is defined as a Short integer. Each separate check box and the Radio group has a simple event method, which is:

On evClick
  Do method filter

which will call the ‘filter’ class method when any of these objects is clicked. The filter method filters the contents of the list called iList based on the selection of the check boxes and radio buttons, and has the following code:

Do iList.$unfilter(0)

If not(iAgeRange1)
  Do iList.$filter(not(iAge<=20))
End If

If not(iAgeRange2)
  Do iList.$filter(not(iAge>=21&iAge<=40))
End If

If not(iAgeRange3)
  Do iList.$filter(not(iAge>40))
End If

Switch iFilter
  Case 1
    Do iList.$filter(iGender='F')
  Case 2
    Do iList.$filter(iGender='M')
End Switch

Note the ‘Smart list’ capability has to be enabled on the iList variable to allow the built-in filtering using the $filter method; this is done in the $construct method of the form in the example, using the following code:

Do iList.$smartlist.$assign(kTrue)

Color Picker

Group	Icon	Name	Description
Other		Color Picker	Allows the end user to select a color from a color palette, or RGB, HSL, or HEX number

The Color Picker component allows the end user to select a color either by sliding a color slider and clicking on the color palette, or by entering a color number in RGB, HSL, or HEX format; an alpha slider can be shown to allow the end user to select the alpha setting (transparency) for the color.

You would typically open the Color Picker in a subform or palette window, to allow the end user to select a color, then close the subform returning the selected color value to the main form to assign to an object or property. Otherwise, you could add a color picker to a general settings panel in your app, such as a side panel. The following screenshot shows the color picker with the color preview swatch, alpha slider and the format entry fields for specifying an RGBA color.

The color selected in the color picker is returned to the instance variable specified in $dataname of the control, which must be a 64-bit integer if you want to include the alpha channel, otherwise you can use a 32-bit integer if the alpha channel is not required.

There is an example application called JS Color Picker in the Samples section of the Hub in the Studio Browser showing the Color Picker control, including the different color number formats and the predefined color swatches.

Properties

The Color Picker has the following properties to set up the appearance and behavior, such as showing a color swatch preview, showing the alpha slider, or controlling which color number formats are shown (RGB, HSL, or HEX).

Events

The evColorPicked event is triggered when the user has selected a color, that is, when they let go of the pointer after selecting a color, or when they tab out of a color number input field. pColor contains a 64-bit integer representing the selected color.

The evColorChanged event is triggered each time the color is changed; pColor contains a 64-bit integer representing the selected color. If you wish to trap this event, it is recommended you use only a client-executed event handler since this will fire a lot of events as the user drags on a color slider.

The example app in the Hub uses the evColorPicked and evColorChanged events and the new $clientevent method. The $event method for the color picker control handles the evColorPicked event as follows:

On evColorPicked
  Calculate iColorPicked as pColor

While the $clientevent method for the control (which is set to execute on the client) handles the evColorChanged event, which changes rapidly as you click and drag inside the color palette of the control.

On evColorChange
  Calculate iColorChange as pColor

Predefined Color Swatches

You can add a number of predefined color swatches to the color picker to allow the end user to select a preset color; the color swatches could be colors defined in your corporate branding or colors that are in constant use in your app. The colors are specified in a list instance variable containing a single column list of colors which is assigned to the $swatchlist property; if empty, no swatches are added to the picker. For example, you could define the list in the $construct method of the form and assign the iswatches list to $swatchlist.

# Define iswatches (List), lcolor (64-bit integer)
Do iswatches.$define(lcolor)
Do iswatches.$add(rgb(0,142,214))
Do iswatches.$add(rgb(15,108,177))
Do iswatches.$add(rgb(255,155,0))
Do iswatches.$add(rgb(0,54,200))
Do iswatches.$add(rgb(225,216,29))
Do iswatches.$add(rgb(205,00,105))

The following screenshot shows the color picker with a set of predefined color swatches displayed at the bottom, defined in the iswatches list and assigned to $swatchlist.

Combo Box Control

Group	Icon	Name	Description
Lists		Combo Box	Field combining entry box and droplist

The Combo Box control is a combination of a data field and a dropdown list from which the end user can make a selection or enter their own value into the field. There is an example app in the Samples section in the Hub in the Studio Browser (called JS Droplist, Combo, Popup); the same app is available in the JavaScript Component Gallery. The following screen shows a Combo Box using the Soft JS Theme.

The variable for the data field part is specified in the $dataname property. You can specify a default list of options in the $defaulttext property, which is a comma-separated list of options, or build the list dynamically (with $::listname, see below). When $defaulttext is specified, $defaultline specifies the list line which is selected when the form is opened (set to 1 by default). The $::listheight property specifies the height of the droplist. The Combo Box has the $negallowed property which means it can display negative numbers.

When the list in a Combo Box is clicked an evClick is generated with the selected list line reported in the pLineNumber parameter.

Content Tips

The Combo box control has the $::contenttip property which is a text string which is displayed in the edit field part of the combo box when it is empty to help the user understand what content should be entered into the field. For example, for a Last name field you could enter ‘Enter your last name’ into $::contenttip to prompt the end user for their last name.

Auto correction and capitalization

Combo boxes have the $autocorrect and $autocapitalize properties, which when enabled means that any text entered into the edit field section of the control is corrected for spelling and capitalization automatically.

Example

The maintenance screen in the Webshop sample app allows the user to enter new products or delete existing ones: specifically, the data in the Webshop app contains food and drink items, but it could be any type of products. When the user enters a new product, they can select the product type from a Combo control; this allows the user to select from a list of given product types or enter a new one.

The $dataname of the combo control is set to iDataRow.product_group, and the $::listname is iGroupList. The evAfter event is enabled in the $events property of the control. In the $construct method of the form, the iDataRow row variable is defined from the T_Products table class, as follows:

# $construct of jsMaintenance form\

# sets up form sizes, etc, then…
Do iDataRow.$definefromsqlclass($tables.T_Products)
Do $cinst.$objs.$sendall($ref.$construct())

The last line of code triggers all the field specific $construct methods which in this case includes the Combo box control; the code defines the iGroupList from the product_group column in the T_Products table class, performs a select on the data, and fetches all the data back into the iGroupList variable.

Do iGroupList.$definefromsqlclass($tables.T_Products,'product_group')\

Do iGroupList.$selectdistinct()
Do iGroupList.$fetch(kFetchAll)

When the user selects an item in the list or enters a new item into the entry part of the combo box, an evAfter event is triggered and the $event method behind the combo control is called, as follows:

On evAfter
 Do method newItem
 Do $cinst.$setcurfield('product_name') ## puts the focus in the product_name field

The newItem method is placed behind the Combo box control itself and contains the following code:

Do iGroupList.$search($ref.product_group=iDataRow.product_group, kTrue, kFalse, kFalse,kFalse)    ## test iGroupList for group/type entered

If iGroupList.$line=0   ## if not found in the group list
  Do iGroupList.$add().product_group.$assign(iDataRow.product_group)   ## add a new group to the list
End If

Complex Grid

Group	Icon	Name	Description
Lists		Complex Grid	Grid which can display all types of data and formatting

A Complex Grid can display multiple rows and columns of data taken from a list variable specified in the $dataname property of the control. You can use a $construct method behind the grid control itself to build the list data to populate the fields in the complex grid. To create a complex grid, you can place other controls in the row and header sections of the grid control, including standard entry fields, droplists, buttons, and check boxes: these controls are duplicated for every row in the grid, displaying each row of data from the data list. A complex grid is a container field having its own $objs group containing the objects inside the grid control.

There is an example app called JS Complex Grid in the Samples section in the Hub in the Studio Browser; the same app is available in the JavaScript Component Gallery.

In addition, there is a Webshop app that uses complex grids in the Applets section in the Hub in the Studio Browser which is described later in this section.

Dataname for Grid Controls

The $dataname of each component you place in the grid must correspond to a column in your list variable supplying the data to the grid, whether it is expressed as a column name only, such as iHeading, or in the format LISTNAME.COLNAME, such as iList.iHeading.

Events

You can place event methods behind the embedded controls to react to user input and clicks within individual fields/cells in the grid. For example, you can have a button in each row of the grid which when clicked triggers an evClick event which runs the $event method for the button that performs an action based on the row clicked.

The Complex Grid itself can have evClick & evDoubleClick events. When clicking on the background of a complex grid row, or a control within the grid which does not have a click event enabled, the evClick or evDoubleClick will be fired. Both of these events receive pLineNumber parameters indicating the line number which was clicked. If no line was clicked (the end user has clicked on empty space), pLineNumber will be 0.

List Pager

The Complex Grid control has the $pagesize property that allows you to display the lines in the grid as separate pages: see the List Control section for more details.

Tabbing inside a grid

When tabbing through controls on a form, the Complex grid is treated as a single tab stop (pressing Tab while the grid has focus will move the focus to the next control on the form). Pressing Enter while the grid has the focus will move the focus inside the grid. Tab and Shift+Tab can then be used to move between controls in the grid. Pressing Escape will return focus to the grid.

Scrolling

The complex grid has the properties $vscroll and $hscroll to allow you to scroll a grid dynamically. The $vscroll property takes the row number in the grid to scroll to. The $hscroll property takes the absolute horizontal pixel position to scroll to in relation to the left edge of the grid control, that is, the grid will not scroll by a specified amount, rather the grid will scroll to the absolute position in the grid specified by $hscroll.

Scroll Tips

You can use the property $vscrolltips to display a scroll tip when a complex grid scrolls vertically. If $vscrolltips is kTrue, the default scroll tip is the contents of column 1 of the list for the first fully displayed row. To override this default scroll tip, implement a client-executed method for the complex grid object, called $getscrolltip. $getscrolltip accepts a single parameter (the row number for which the scroll tip is required), and returns the scroll tip text.

Scrollable footer

A complex grid can include a scrollable footer section similar to the existing scrolling header section. To enable a scrollable horizontal footer, you need to set $showhorzfooter to true. The complex grid has the following properties to control the appearance of the footer:

• $horzfooterheight
  The height of the grid horizontal footer

• $horzfooterfillcolor
  The fill color for the grid horizontal footer

• $horzfooterborder
  The border style for the grid horizontal footer

• $horzfooterlinestyle
  The line style for the grid horizontal footer

Row divider line style and Field Styles

The $rowdividerlinestyle is assignable at runtime and by $fieldstyle. As $rowdividerlinestyle is a custom field in a $fieldstyle it gets assigned at runtime, and is treated like any other runtime property change, therefore it is assignable at runtime. Note that $rowdividerlinestyle changes just the border between each row in a Complex grid, unless $rowborder is set to kJSborderPlain, in which case it also effects the border around the client, i.e. the section of the complex grid which contains the rows.

Extra space

The $extraspace property can be used to add extra space to the line content in the grid. If $extraspace is zero, the height of each row is the default height of the row content. If $extraspace is greater than zero, the height of each row is the font height + $extraspace.

Dropping data onto a grid

The end user can drag data from a remote form field and drop it onto a cell in the grid. Complex grids have the evCanDrop and evDrop events, and the $dropmode property to enable drop support. The pDropRow event parameter is available for evCanDrop, evWillDrop and evDrop events, and reports the row of the complex grid on which the drop is to occur (zero if the control does not belong to a complex grid).

It is possible to drop data onto a single control in the grid (a cell) in any row in the grid, as long as it has its $dropmode enabled. If not, the complex grid itself will receive the drop.

Exceptions

You can format individual cells in a complex grid by applying “exceptions” to those cells: you can then apply different formatting to those cells. For example:

Calculate $cinst.$objs.Products.$objs.Product.6.$backcolor as kBlue

or using indirection:

Calculate lNum as 4

Calculate lProp as "$backcolor"
Calculate $cinst.$objs.Products.$objs.Product.[lNum].[lProp] as kBlue

You can attempt to set an exception for any property, although in practice this may not be satisfactory for some properties. Appearance properties, and button text for example should however all work as expected.

You can set exceptions in both server and client executed code.

In addition, the method $clearexceptions() can be used to clear exceptions. For example (Products is a complex grid object):

# Clear all exceptions for the Product object on all lines where it has exceptions\
Do $cinst.$objs.Products.$objs.Product.$clearexceptions()

# Clear all exceptions for the Product object on line 4
$cinst.$objs.Products.$objs.Product.$clearexceptions(4)

# Clear all exceptions set in the complex grid
Do $cinst.$objs.Products.$clearexceptions()

# Clear all exceptions set on line 4 of the complex grid
Do $cinst.$objs.Products.$clearexceptions(4)

You can execute $clearexceptions() in both server and client executed code.

Existing users should note: Prior to the implementation of exceptions, objects in the row section could lose property values set at runtime, when updating the grid data. This issue has been resolved as part of the exception implementation.

Complex Grid Restrictions

A complex grid cannot contain another complex grid as a member, in any section. A complex grid cannot contain a subform in the row section. These restrictions apply to controls that would be direct members of the section, or indirect members that are children of a paged pane. Omnis enforces this by preventing you from dropping these controls into the relevant section(s).

Note: the $add() method for remote form class objects has not been updated to enforce this restriction, therefore using $add() to place controls in a section which does not support them could lead to undesirable results.

Example

The Webshop sample app, available in the Hub in the Studio Browser, uses a Complex grid in the main product remote form to display a list of products. Individual fields for the picture, name, description, price/size of the product are added to the first line of the complex grid; when the form is opened on the client and the data is loaded into the grid, these fields and are repeated for each row in the data list (one row per product).

The $dataname of the complex grid is set to iProductList which is built from a table class T_Products which is linked to a schema class sProducts. A $construct method is placed behind the complex grid that builds the list needed for the complex grid data.

# $construct of complex grid control in jsShop form

Do iProductList.$definefromsqlclass($tables.T_Products)
Calculate whereClause as con('WHERE product_group = ',kSq,'Appetizers',kSq)
Do $cfield.$build(whereClause)         ## calls $build

# $build method also behind complex grid control in jsShop form
Do iProductList.$select(pWhereClause,' ORDER BY product_isfood desc')
Do iProductList.$fetch(kFetchAll)

When the form is opened, the $construct method is run and the product list is built from the database, while the data itself is displayed in the various fields embedded in the complex grid with each product shown on a separate line in the complex grid.

There are three order buttons placed in the row of the complex grid; they are repeated for each product in the list and allow the end user to order different sizes of product, such as a small, medium, or large drink or pizza. Each of the buttons has a simple method behind it that passes a number to the process_order class method; the first button sends value 1, the second button value 2, and the third button value 3.

# ‘Order now’ button method
On evClick
  Do method process_order (1)

See the Data Grid section for the process_order method which updates the iOrderList and the Orders data grid accordingly.

Data Grid Control

Group	Icon	Name	Description
Lists		Data Grid	Simple grid for text and numerical data display

The Data Grid is a powerful and versatile control that can display character and numeric data in a grid like structure, much like a table or spreadsheet format, allowing you to create compact, data-rich UIs for your web and mobile applications.

There is an example app called JS Data Grid in the Samples section in the Hub in the Studio Browser (the same app is available in the JavaScript Component Gallery), showing how to use Data grids, including how to use custom cell formatting; the following screen shows the Vintage JS Theme in use.

In addition, the Webshop example under the Applets section in the Studio Browser uses a data grid which is described later in this section.

Setting up a Data Grid

The content for a data grid is supplied from a list variable specified in the $dataname property. The number of columns in your grid would normally correspond to the number of columns in your data list, while the number of columns in the grid object itself in set by $designcols. For each column in the grid (under the Column tab in the Property Manager) you need to assign $columndatacol to map the grid column to a column in your data list: you can use the column name or number in $columndatacol. Setting $columndatacol to zero for a grid column will hide the column at runtime.

The $hasheader property specifies whether or not the grid has a main header, while $columnheaderheight is the height in pixels of the column header; if set to 0 (the default) the header height will be the same as $rowheight. The $headertext property specifies the text for the header, $::boldheader lets you specify a bold header and $columnheadersbold allows you to display the headers in bold.

The $columnnames property lets you specify the heading text for each column in the grid (a comma separated list of names), which do not have to be the same names as the column names in your data list variable. You can use \n in the text for $columnnames to create a line break.

The $currentcolumn property is the current grid column for which properties are being displayed under the Column tab in the Property Manager. The $movecolumn property allows you to move a column to the specified position in the grid during design mode.

The end user can enter data into the cells of the grid if $enterable is enabled, and as the end user tabs the grid can grow by adding more lines to accommodate more data if $extendable is enabled. If $autoedit is true, and a cell is editable, it will automatically go into edit mode when it is selected (and $hcell or $vcell are set).

The height of the rows in a data grid adjusts to fit the height of the font size specified in $fontsize, unless you specify a fixed height in pixels in $::rowheight. In addition, the height of the header area is adjusted automatically according to the font, but you can fix the height in $::headerheight.

Events

Along with the standard evClick and evDoubleClick events the Data Grid reports a number of events which you can detect in the event handling method behind the grid control.

• evClick and evDoubleClick
  sent after the data grid has been clicked or double-clicked
  pHorzCell - The column number of the new current cell.
  pVertCell - The row number of the new current cell.
  pDataColumnName - the data list column name (or number) when the event is triggered

• evCellChanged
  sent when the current cell has changed, e.g. when navigating between cells with the arrow keys or clicking a cell that isn't the current cell.
  pHorzCell - The column number of the new current cell.
  pVertCell - The row number of the new current cell.
  pDataColumnName - the data list column name (or number) when the event is triggered

• evColumnsResized
  sent when the user has resized a column.
  pColumnWidths - a comma separated list of the new column widths

The Data Grid also supports the standard drag and drop events including evDrag, evDragFinished, evCanDrop, evDrop, evWillDrop: see Drag and Drop Data.

evCellChanged

When evCellChanged is triggered, pVertCell will be the next line number in the list, but at the point when the event is triggered, pVertCell will reference a line which does not exist yet, which may cause an issue in the code in your event method. To mitigate this, you should check pVertCell is valid before executing the other list code.

pDataColumnName

The pDataColumnName event parameter contains the data list column name (or number) when the event is triggered. This is useful when columns in the data list do not map directly to the columns of the form data grid, that is, if $columndatacol is used to set the column order. If the list column does not have a name, the parameter contains 'C1', 'C2', etc, so it can be used notationally. The value of the cell can be obtained with: iDataList.[pVertCell].[pDataColumnName].

Sorting Grid Columns

The data in a data grid is not sorted by default – initially the order of the data in a data grid is the same as set by the data list specified in $dataname, and depends on how and in what order the data is compiled. However, you can use the $sort() method to sort the data on a specified column in the data list, for example, you can include $sort in your method that builds the data list. The syntax of the $sort() method is:

Do list.$sort(calculation | sort field[,bDescending=kFalse]...)

The calculation or sort field can use a colname, $ref.colname or listname.colname to reference the column in the data list to be sorted. The data is sorted in ascending order by default, but you can pass the bDescending parameter as kTrue to sort the data in descending order. You can specify up to nine sort fields, including the sort order flag.

The end user can sort the data in a grid by clicking on a column header, when $cansortcolumns is set to kTrue (the default for new data grids). The grid data is sorted in ascending order, and an arrow icon is displayed in the column header to indicate the sort order; clicking again on the same column header will reverse the sort order on that column, so after a second click the sort order will be descending. Clicking on a different column header will sort the grid on that column, and the icon will move to that column.

The $cansortcolumns property enables the ability to sort all columns in the grid, but you can use the $columncansort property (under the Column tab in the Property Manager) to enable or disable sorting for each column (when $cansortcolumns is kTrue); note you have to set $currentcolumn to apply properties to specific columns.

Customizing the sort order

If you wish to customize or override the default sort order when the end user clicks the header of a sortable column, you can use the client method $sortgrid(pColumnNumber,pDescending), which can be added to the control methods for the data grid and must be client executed. The method has two parameters:

• pColumnNumber
  the number of the column in the $dataname list which should be sorted

• pDescending
  True if the sort should be in descending order, false for ascending

This method will be called whenever the user clicks on a column header to sort the list, and so can contain any code to implement your own sort. The method should return kTrue to indicate that you have performed a custom sort. Returning kFalse (or nothing), will trigger the default sort order to be used.

Enter Key Behavior

When $entertodoubleclick is true, the Enter key is interpreted as a double-click on the data grid. In this case, a double-click event is sent when the focus is on the grid and the Enter key is pressed, allowing more control from the keyboard for the lists and grid controls. The property is available for Data grids, as well as Lists, Tree lists, and the Date picker control.

The property is set to kFalse by default (to maintain backwards compatibility), other than for JS Lists, which defaults to kTrue which interpreted Enter as a double-click in previous versions.

Column Width

The $::columnwidths property allows you to set up the widths of the columns, which is a comma separated list of integer values representing each column width in pixels. In order for the data grid to cater for multiple screen sizes, the $columnwidthsarepercentage property allows you to switch to using a percentage in the $::columnwidths property. If true, the column widths in the data grid specify a percentage of the width of the control rather than a specific number of pixels. This affects the properties $columnwidth, $::columnwidths, and $columnminwidth.

Footer row

You can add a Footer Row to a Data Grid which would allow you to display column totals, for example, or any other data. The $hasfooter property enables the footer row for the data grid, which is a fixed, non-scrolling row at the bottom of the grid. For numeric columns, the total for each column is shown in the footer row automatically.

Footer Row Properties

The $hasfooter property enables the footer row for a Data grid. You can set the properties of the footer row on the Footer tab in the Property Manager using the following properties:

Footer Column Properties & Events

The following are properties for a column in the footer row, shown under the Column tab in the Property Manager. You can set $currentcolumn (a design property) or click on a column in design mode to set the properties for each footer column.

If a List Pager is used or a filter is applied to the list, the automatic totals are for only the data that is currently displayed; specifically for a list pager, the column totals are for the current page only.

Footer Row Methods

When $footertype is set to kJSDataGridFooterTypeCustom, you can use the $updatefooterrow() client method to update the contents of the footer row. The method is called to notify of the footer data changing/requiring a change for every footer column type except kJSDataGridFooterTypeNone (as there is no footer data to be displayed). It is also called on initialization, and whenever any of the data in the grid changes.

Where applicable, a column’s $footercolumnvalue property will be updated before calling into $updatefooterrow() so that this value can be read and used elsewhere, i.e. when the footer type is kJSDataGridFooterType(Total/Meann).

The pColumn parameter is the column number in the data grid list variable (assigned to $dataname), ignoring the display order; the pDataColumnName is the column name in the list data.

If Character data is returned, it will be displayed as-is, and will ignore $footerlabel. If Number data or a Date is returned, it will be displayed with the $footerlabel and formatted according to $footercolumnnumberformat or $footercolumndateformat.

Events

The evFooterClick event is triggered if the end user clicks a cell in the footer row, passing the column number clicked.

The evFooterUpdated event is triggered when a footer or multiple footers have changed. pUpdatedColumns is a list of column numbers that have been updated. The event is triggered after footers have updated so you can receive the value of $footercolumnvalue if required.

Cell Formatting

You can apply your own formatting to individual cells in a Data Grid. For user-defined Data Grids (where $userdefined is set to true) and where a column has its columnmode set to kJSDataGridModeCustomFormat, you can customize the HTML used to layout or format an individual cell in the grid.

When the grid is rendered (this occurs on demand, e.g. when scrolling to make new data visible), it calls the object client method:

$formatcell(pListLineNumber, pDesignGridColumnNumber, pDataColumnNumber, pDataColumnName)

which you implement to return html for the formatted cell contents. The parameters pDataColumnNumber and pDataColumnName allow you to locate the correct data in the underlying list by directly referencing the column in that list, instead of the displayed datagrid.

The HTML can, within reason, be anything you like: you can also just return a text string. To assist this, there are two new calls you can make:

• styledtohtml(text)
  the styledtohtml(text) function returns the HTML representing the text string containing embedded styles inserted using style() function. This is a built-in function, under the General tab of the Catalog, which must be run in a client-executed method in the JavaScript Client only.

• $addcolorcss(cClassName,iRgbColor,iAlpha)
  is a method of the data grid object (as such it can only be executed in client-executed methods). Call this in $init to add your own background color class to use with the html returned by kJSDataGridModeCustomFormat.This class takes browser specific issues with transparency into account.

For example, you can use the following method:

Do $cinst.$objs.dat.$addcolorcss("myclass",rgb(255,0,0),128)

in $init, and then do the following in $formatcell:

Calculate columnvalue as iList.[row].[col]
If (columnvalue = "bad")
  Quit method con('<div class="myclass" style="padding:0;margin:0;height:16px">',columnvalue,' ','</div>')
End If

Quit method columnvalue

Using transparency in the CSS background allows the selection color to show through the formatted cell.

There is an example app called Data Grid Formatting in the Samples section in the Hub in the Studio Browser to show how you can use the grid formatting; the same app is available in the JavaScript Component Gallery.

Data Grid Filter

You can add a filter to a data grid by enabling the $hasfilerarea property. When true, the grid has a filter area which can be opened by clicking on a ‘spyglass’ button in the data grid header; the search filter will be applied to the current column (the Product column in the screen shown below). The end user can type into the filter entry box to filter the contents displayed in the column. The following image shows the filter enabled for column 1:

The other properties to set up the filter include:

• $filtercol
  The grid column to which the filter will apply; this can be changed at runtime in a client method, see below

• $filterareaheight
  The height of the filter area (when $hasfilerarea is enabled); if zero, the height is calculated automatically

• $filterlabel
  The text label for the filter entry field

• $filtervalue
  The name of an instance variable that contains the value used for filtering

• $multifilters
  enables a filter for all the columns in the data grid; see below

The following code is the $event method for a data grid, set to execute on the client:

On evCellChanged
  Calculate iHorzCell as pHorzCell
  Calculate iVertCell as pVertCell

On evHeaderClick
  Calculate $cobj.$filtercol as pHorzCell
  # assigns the filter to the selected column
  Calculate lColNames as $cobj.$columnnames
  Calculate lColIndex as pHorzCell-1

  # Find the display name of the column clicked:
  JavaScript: lFilterName = lColNames.split(",")[lColIndex];
  Calculate $cobj.$filterlabel as con(lFilterName,": ")

Filter control method

You can implement the $filtergrid control method on a data grid, which will be called whenever the user types text into the filter box for a single filter enabled grid (if enabled); this control method does not apply when $multifilters is enabled.

The $filtergrid data grid method should be set to execute on the client.

$filtergrid(Column dat, Filter String)

The $filtergrid method receives two parameters: ColumnData & FilterString, the data in the filtered column for the row in question and the current filter string.

You can return true to say that the row should be included, or false to exclude it. If you return null (or nothing), the default handling will be applied to determine if the row should be shown.

Open filter method

The $openfilter client-executed method can be called from $init to allow you to open the filter area in the grid when the form is opened.

• $openfilter([bOpen])
  opens or closes the filter area if the grid has one, and returns kTrue if the operation was completed. bOpen: Use kTrue to open the filter area or kFalse to close it. Defaults to kTrue if unspecified.

Multiple filters

In addition to being able to set a single filter for any column, you can enable a filter for all the columns in the grid by enabling the $multifilters property (and in this case $filtercol is ignored). When $multifilters is enabled, a default filter is added to each column in the grid (when the spyglass is clicked).

The filter has a number of operators to allow the end user to select the search type; the list of operators in the filter menu is determined by the data type of the column. When a search type is selected, a search field is displayed allowing the end user to add a search string; for date columns a date picker is also displayed.

The end user can use various keys to navigate the filter menus.

• Tab or Shift Tab will jump to the next or previous column filters.

• Space or Return on a filter type button will reveal the context menu.

• Up or Down arrow to move up and down the filter menu items.

• Escape closes the filter menu, returning to filter button.

• Space or Return on a filter menu item will select the item.

By default a column will show a full set of filter types based on the column data type. You can override this and only show a subset, or remove the filter from the column altogether. You can do this using a client method called $multifiltermenu(pCol), which is called before a popup filter menu is shown for a column. You can assign the filter types for each column using the pCol parameter; the filter types can be summed for multiple filter types, for example:

If pCol=6
  Quit method kJSDataGridFilterContains + kJSDataGridFilterNotContains
Else If pCol=7
  Quit method kJSDataGridFilterHidden
End If
Quit method kJSDataGridFilterDefault

If you assign any filter types that are not supported by the column data type, the filter types will be ignored. You can use the following filter type constants:

Localization

The filter menu name and filter text signs can be localized (e.g. == for equals) and are stored in the Omnis omnisloc.js. The menu name and sign are separated with a “:” colon character and both parts are required.

"ctl_dgrd_filter_none": "No Filter:?",
"ctl_dgrd_filter_equals": "Equals:==",
"ctl_dgrd_filter_notequals": "Not Equals:!==",

Dynamic Filters

You can set or read the filters in a Data grid dynamically in your code using the $::filters property. The evFilterChanged event reports when data grid filters change.

The $::filters property (runtime only) allows you to manage the current filters for a data grid. When reading the property, the property returns a list in the same format as pFilters in evFilterUpdated (see below). Setting the property should be done using a list in the same format, that is, a single column list containing rows of data to change the filter values. The only difference for setting the filter is that only three columns are required in each row, either colNumber or colName can be supplied. If both are supplied, colName will take precedence over colNumber in the case that they reference different columns. The columns in the row can be in any order, but their names must match the format (i.e. colNumber/colName, filterType and value).

The evFilterUpdated event is fired every time the filter in the data grid changes. The event is fired for both types of filter ($multifilter can be kTrue or kFalse). It receives one parameter, pFilters, which contains a single column list of rows. Each row contains four columns:

• colNumber or colName
  The list column number or name.

• filterType
  The filter type, a kJSDataGridFilter… constant.

• value
  The value for the filter. The data type of this should be determined by the column data type.

When $multifilter is kFalse, pFilters is in the same format, but will only contain one row entry.

The following example filters the data grid by product and price:

Do lFiltersList.$define(lFilterRow)
# Filter the column iProduct by values containing "ba"
Do lFilterRow.$define()
Do lFilterRow.$addcols("colName", kCharacter, kSimplechar, 100, "filterType", kInteger, k32bitint,, "value", kCharacter, kSimplechar, 100)
Do lFilterRow.$assigncols("iProduct",kJSDataGridFilterContains,"ba")

Do lFiltersList.$add(lFilterRow)

# Filter column 3 by values greater than 10
Do lFilterRow.$define()
Do lFilterRow.$addcols("colNumber", kInteger, k32bitint,, "filterType", kInteger, k32bitint,, "value", kInteger, k32bitint,)
Do lFilterRow.$assigncols(3,kJSDataGridFilterMoreThan,10)
Do lFiltersList.$add(lFilterRow)
Do $cinst.$objs.DataGrid.$::filters.$assign(lFiltersList)

Row Formatting

The $setlineheight property allows you to center text vertically in the rows in the data grid. If true, the grid sets the line height so that text is vertically centered in each row (the default is kFalse).

Header Formatting

You can create your own formatting for column headers by adding a client-side method called $formatheader which takes two parameters:

• Parameter 1
  the text for the column header

• Parameter 2
  the design grid column number (1-n)

The return value is HTML to use for the header, for example, for a bold header:

<b>Param 1</b>

For red text:

<span style="color:red">Param 1</span>

For right justified text (using float so that sort indicators still appear):

<div style="float:right;">Param 1</div>

You can reassign the column name to force a call to recalculate the HTML for the column header, even if the text has not changed.

List Pager

The Data Grid control has the $pagesize property that allows you to display the lines in the grid as separate pages: see the List Pager section in the List Control for more details.

Pick List

You can add a dropdown list or “picklist” to one of the columns in your data grid to allow the end user to select a value from a list of preset values. You must create another list containing the list of preset values and specify its name in the $columnpicklist property for the column in which you want to add the picklist. The datatype of the column in your main data list variable corresponding to the picklist column must be an integer, and $columnmode for the grid column itself must be set to kJSDataGridModeDropList. The integer value stored in this column will correspond to the line number of the selected line in the picklist.

For example, if you want to list a product in your main grid field that has only four possible colors, you could create a sublist containing those color values and assign this sublist to a column in your grid field corresponding to an integer column in your main data list: this would allow the end user to choose a color from a preset list of colors.

Row Styles

The $rowcsscol property allows you to specify CSS styles for a row in a data grid. The $rowcsscol property specifies the column number in the $dataname list for specifying custom CSS class names to apply to individual rows. Multiple class names can be assigned with a space separated list.

The CSS rules for classes can be added to user.css: it may be necessary to use !important to override existing styles. For example, in user.css:

.omnis-datagrid .highlight {
  background: red !important;
  color: white !important;
}

Horizontal Padding

The $horzpadding and $columnhorzpadding properties allow you to set the horizontal padding for all the cells in the grid, or for individual user-defined columns. When $userdefined is kFalse for all columns in the grid, the value of $horzpadding is applied to every cell in the grid, including the grid title, data cells, column header cells, and footer row cells.

When $userdefined is kTrue for a column, the value in $columnhorzpadding is applied to the relevant datas cells, header cells, and footer cells for that column.

Both properties default to 2 for existing data grids in converted libraries to minimize appearance changes. While for new data grids, both properties default to 14 to match the horizontal padding for Edit fields.

Grid Line Visibility

The $gridlinesvisible property allows you to select which parts of a data grid will display grid lines; in previous versions you could turn all lines on or off. When using the Property Manager to change the $gridlinesvisible property, a checklist is displayed allowing you to check or uncheck the kJSDataGridVisibleGridLines... constants (see below) to specify which individual lines you want to be displayed.

To set this property in your code, you can add the constant values together to get the desired result, for example:

Calculate $cinst.$objs.DataGrid.$gridlinesvisible as kJSDataGridVisibleGridLinesHeader + kJSDataGridVisibleGridLinesColumnHeaderHorz

For existing grids, those with $gridlinesvisible set to kTrue will have all values selected, and those set to kFalse will have no values selected, which means existing grids should see no change in appearance.

Formatting cells

The $formatcell() client method is fired whenever the selection state of a row in a data grid changes. A new boolean parameter, pSelected, has been added to allow you to style cell values depending on whether the line is selected or not.

Column Data Type Formatting

When you set $columnmode to kJSDataGridModeFormatted, the mode acts like kJSDataGridModeAuto, in that the data grid automatically handles the data based on its type. However, the grid formats the data using the properties $columndateformat, $columndateformatcustom, and $columnnumberformat, rather than the $js...format... properties.

You can use an integer column data type to represent a checkbox. To do this set $columnmode to kJSDataGridModeFormatted and set the $columnnumberformat to “bool”. This will cause integer data to be treated as Boolean, where non-zero means true, and zero means false. If the end user updates the grid using the check box, 1 will be stored in the list for true, and zero for false.

Highlighting Cells

The properties $hilitefocusedcell and $cellhilitecolor allow you to highlight the cell that has the focus.

• $hilitefocusedcell
  If true, the focused cell will be outlined in the color specified by $cellhilitecolor

• $cellhilitecolor
  The color of the focused cell's outline, provided $hilitefocusedcell is kTrue

Grid Scrolling

JavaScript Data Grids have $vscroll and $hscroll properties which allow you to scroll a grid vertically or horizontally at runtime in the client browser; note these properties are write-only meaning that you cannot return their values at runtime.

The vertical scroll value assigned using $vscroll is the position of the scroll bar according to row number in the control. The horizontal scroll value assigned using $hscroll is the designed grid column number for a data grid.

Tabbing through cells

The property $tabthroughcells allows you to change the action of the tab key while the focus is on a data grid. If set to kTrue (default is kFalse), tabbing from a cell which is not being edited selects the next cell, or Shift+tab selects the previous cell. In addition, setting $hcell or $vcell triggers edit mode if $autoedit=kTrue.

Auto Correction and Capitalization

Datagrids have the $autocorrect and $autocapitalize properties which means that text entered into the cells of a data grid are corrected for spelling and capitalization automatically.

Validating data

The $validate method allows you to validate the data entered into any cell in the grid. If present, the method is called when an edit is made to a grid cell, with the parameters pRow, pCol, pNewValue being passed to the method. The method returns true to indicate that the change is valid, depending on the validation code you add to the method, otherwise the value in the cell will revert to the previous value.

Numeric Data Validation

Data entered in grid columns with the numeric data type will be validated automatically, as it is entered. When the end user tries to enter invalid data into the grid column field, such as an alphabetic character, the data is rejected, and the field is highlighted momentarily to indicate an error (the default action is to show a red border).

When leaving the entry field, the value is normalized, that is, integer data is constrained to the valid range or for other numbers it is rounded to the correct number of decimal places; also, leading zeroes are removed, and so on.

Initial Row Values

When a Data grid has $enterable & $extendable enabled, the user can add a new row by entering data into the empty 'extendable' row at the bottom, and the remainder of the columns in that row are given default values.

However, if you want to override these defaults, you can now implement a method named $initextendrow on the data grid control. This method should return a row with column values set to the appropriate defaults you wish to use. The order and the data type of the columns must match the order and types of the columns of the list defining the Datagrid and specified in $dataname.

Inserting Dates as null values

Data Grid columns have the property $columnallownulldateinput to allow a null value to be added to a row of data when the end user tabs out of the last line of the grid to create a new line automatically.

If $columnallownulldateinput is true, and the datatype of the column is Date, cells in the column will default to a value of null when added through the UI. Additionally, if this property is enabled, the end user can change a date to be null by pressing Backspace or Delete while the cell has focus.

If false (the default), the behaviour is unchanged from previous versions. Note it is not possible for the end user to input null values into the grid, via the popup date picker, for example.

Using the Date Picker

The Data Grid uses the appropriate Date Picker according to the constant specified in $dateformat or $columndateformat. If this is set to kJSFormatCustom, then $dateformatcustom or $customdateformatcustom is used as above. If set to kJSFormatNone, then it will attempt to use the data subtype applied to the dataname of the column to determine which picker to use.

Data Grids have the $datepickermode and $datepickerpopupstyle properties, as well as $columndatepickermode and $columndatepickerpopupstyle. The latter two work in the same way, but on the given column when $userdefined = true. The following shows $datepickermode set to kJSDatePickerModeCalendar.

Entering Dates Manually

The properties $editdatetext and $columnallownulldateinput allow end users to enter a date manually via the keyboard rather than using the date picker. When set to true, $editdatetext (and $columneditdatetext when $userdefined=kTrue), allows keyboard entry of a date/time. If a date that cannot be parsed is entered, it will revert to the previously stored date, unless $columnallownulldateinput=kTrue, in which case the field data will become null.

Note this has no effect on the date picker popup control, so if you don’t want to use the picker you need to apply the following css rule to hide the picker:

.datetimepopup-button {
  visibility: hidden;
}

Fixed Columns

The $frozencolumns property allows you to fix or “freeze” a number of columns to the left of the grid, so they do not scroll when the other columns in the grid are scrolled horizontally. The property takes a number value from 1 upwards corresponding to the first column on the left of the grid. For example, you could specify a value of 1 to create row headings that are fixed to the left of the grid.

Column Header Justification

The following properties allow you to justify content in data grid column headers.

• $headerjst
  A kJSDataGridJst… constant that sets the alignment of the data grid header

• $columnheadersjst
  A kJSDataGridJst… constant that sets the alignment of all the column headers; overrides $columnheaderjst

• $columnheaderjst
  A kJSDataGridJst… constant that sets the alignment of all the current column’s header; $columnheadersjst must be set to kJSDataGridJstDefault

Color Picker

The kJSDataGridModeColorPicker column type displays a color picker in the data grid cell allowing the end user to select a color. The end user can click into the color palette on the picker to select a color, or the entry field accepts colors in the hex (the default), rgb or color name formats. You can navigate the color picker from the keyboard without the picker losing the focus.

A numeric color value is returned from the color picker, or a color function can be used to set the color of the column, such as truergb(kDarkGreen), or rgb(255,0,0).

For example, to set the colors for the first 3 lines in the second column, use the code:

Do iList.$add('Bag',truergb(kDarkGreen),'21/02/12','19.00',kTrue,'')
Do iList.$add('Balls',rgb(255,0,0),'20/02/12','4.55',kFalse,'Delivery next week')
Do iList.$add('Clubs',rgb(0,0,255),'20/12/11','299.99',kTrue,'')

You can specify the text for the OK and Cancel buttons on the color picker using $colorpickeroktext and $colorpickercanceltext.

You can localize the strings for the color entry field for the aria-label and aria-describedby accessibility properties, "ctl_dgrd_color_input" and "ctl_dgrd_color_input_desc" respectively.

Number Columns

Data grid columns with type Number have the property $columnzeroshownempty which specifies that values of zero are shown empty rather than displaying a 0 digit.

Hiding a column

The $columnhidden property allows you to hide the specified column at runtime. The default is false, meaning the column is visible.

Data Grid Example

The Webshop sample app, available under the Applets section in the Hub, uses a data grid to display a list of products that have been ordered in the main product jsShop remote form. The data grid control is called ‘orderGrid’ and is seen here in design mode:

The $dataname of the data grid is set to iOrderList which is defined from a table class T_qOrders which is linked to a query class qOrders. When the product form is opened, the $construct method behind the data grid defines the list from the table class.

# $construct behind the data grid
Do iOrderList.$definefromsqlclass($tables.T_qOrders)

When the end user clicks the ‘Order Now’ button in the product window, the data for the selected product and size/type is passed to the process_order method (as value 1, 2, or 3), which inserts the data into the list (after a check to see if the user has already ordered the same product) and the list is redrawn. The process_order method is as follows:

# process_order class method in the jsShop form
# contains pButtonNumber parameter (Short Int) to receive the value of the product button clicked
If iProductList.product_price_[pButtonNumber]>0     ## price must be greater zero
  Do iOrderList.$search(    $ref.order_product_id=iProductList.product_id    &$ref.order_size=iProductList.product_size_[pButtonNumber],kTrue,kFalse,kFalse,kFalse)
  If iOrderList.$line   ## found one so increment existing order
    Calculate iOrderList.order_amount as iOrderList.order_amount+1
  Else ## new one so add to iOrderList
    Do iOrderList.$add( #NULL,#D,iProductList.product_id,iProductList.product_name,      iProductList.product_size_[pButtonNumber],1,0,iProductList.product_price_[pButtonNumber])
    Do iOrderList.$line.$assign(iOrderList.$linecount())
  End If
  Calculate iOrderList.tot as iProductList.product_price_[pButtonNumber]*iOrderList.order_amount
  Do $cinst.$objs.checkOutBtn.$enabled.$assign(iOrderList.$linecount()>0)
  Do $cinst.$objs.orderGrid.$redraw()
Else
  Do $cinst.$clientcommand('yesnomessage',row(con('Would you like to order >',iProductList.product_size_1,'< instead?'),'Not available','$orderYes'))
End If

The Apps Gallery on the Omnis website has a further example showing how you can use the Data grid component.

Date Picker Control

Group	Icon	Name	Description
Other		Date Picker	Date picker with touch selection

The Date Picker Control allows the end user to select a single date, a date range, and/or a time, rather than having to enter a date or time from the keyboard; in this case, the UI is better and issues with formatting a date or time are avoided. There is a sample app called JS Date Picker in the Hub in the Studio Browser, and the same app is available in the JavaScript Component Gallery.

You can assign a Date/Time instance variable to the $dataname property to load the date/time selected by the user, or you can assign a two column instance row variable to contain the date/time and time zone offset of the client in the respective columns (see below for info on the time zone offset).

You can assign an empty string to a Date variable on the client, in which case it will be treated as an 'empty' date. Assigning 0 to a Date variable on the client sets it to 31 Dec 1900, the same as on the Omnis Server.

Date Picker Style

The $datestyle property specifies the style or date/time content of the date picker control, which can be a combination of date & time, date only, time only, or a calendar view, as specified by a kJSDatePickerStyle… constant:

The color of the Date Picker is specified with $datefacecolor while $datefacealpha sets the transparency (value 0-255).

There is an example app in the Samples section in the Hub in the Studio Browser showing how you can use the Date picker to allow the end user to select a date; in addition, the Holidays example app under the Applets option in the Hub uses the Date picker, which is described later in this section.

Mode & Popup Style

In addition to the $datestyle property, you can use the $datepickermode and $datepickerpopupstyle properties to control the mode and popup style of the date picker (also applies to data grid cells and columns).

• $datepickermode
  controls the type of picker to be displayed, one of the following constants:
  kJSDatePickerModeAuto: Date picker type is assigned automatically based on $dateformat
  kJSDatePickerModeCalendar: calendar type is displayed
  kJSDatePickerModePicker: a picker type is displayed

• $datepickerpopupstyle
  controls how the popup is displayed, one of the following constants:
  kJSDatePickerPopupStyleAuto: Popup style is determined by device type
  kJSDatePickerPopupStyleInline: Popup style will always be displayed adjacent to the control
  kJSDatePickerPopupStyleModal: Popup style will always be displayed modal

(Note that Internet Explorer does not correctly display the modal type, and so falls back to inline on these clients.)

The inline style picker will position itself underneath the parent control, but from the right so it is closer to the icon which opens it. If there is not enough space beneath the parent control, the picker will be placed above, where space permits.

Calendar Style Picker

The Date Picker control can be switched to display a calendar style date picker, by setting $datestyle to kJSDatePickerStyleCalendar. There are a number of properties that apply to the control when the date style is set to calendar.

Picker style on mobile devices

When $datestyle is set to kJSDatePickerStyleCalendar desktop browsers will display the calendar as expected. On mobile devices however, even when $datestyle is set to kJSDatePickerStyleCalendar, a calendar will be replaced with a date picker (same as kJSDatePickerStyleDate), since a picker style date selector is the preferred style on mobile devices. This can be overridden by setting the property $datestyleusepickeronmobile to kFalse.

Start and End dates

The following properties allow you to set the start and end dates (minimum and maximum):

To allow the same functionality in a popup date picker (in the Data grid or Edit field) you can use the $getdisableddates() method, which defaults to client-executed, or it can also run on the server if required. This method must return a Row containing up to 4 columns, which should be named the same as the relevant properties which set disabled dates above but without the $, that is, datesdisabled, daysofweekdisabled, maxdate, mindate. They can be in any order, and not all need to be included. Their data type should be same as the properties above, apart from datesdisabled, which should be a list of dates (i.e. not just an instance variable name).

Week Number

You can display the week number in the calendar view of the Date Picker control by enabling the $showweeknumber property and setting the associated color properties. When set to kTrue, the $showweeknumber property displays the iso week number on the left side of the calendar style date picker (when $datestyle is set to kJSDatePickerStyleCalendar). The $weeknumbertextcolor property specifies the text color of the week numbers, and $weeknumbercolor controls the background color of the week number area.

Disabling Dates

The calendar style Date Picker allows you to disable specific dates using the following properties:

In addition, disabled days have a strikethrough text appearance (equivalent to the line-through css attribute).

Custom Date Style

The $datestylecustom property can be used in conjunction with setting $datestyle to kJSDatePickerStyleCustom to set the style or format of the date shown. You can enter a string of characters to represent the columns required as per the Omnis date/time format strings, for example, "mdy" to specify Month, Day, Year columns in that order.

In addition, you can specify a grouped column by enclosing the date characters in parenthesis, for example, "(wdm)" will specify a single coumn containing Weekday, Day, Month. Note: this column will always alter the day by one by increasing or decreasing it, so it only makes sense to use this type of column if it includes a day or weekday. Time elements entered into a grouped column will be ignored. Repeated characters are ignored and only one group can be used (further groups are ignored). Groups take precedence over individual columns, therefore "d(wdm)y" will be treated as "(wdm)y".

Date pickers (other than custom) pick up the locale of the client and display the picker in their standard format. For example, the date picker will display Day, Month, Year in the UK, and Month, Day, Year in the USA (assuming their location settings are set correctly).

Selecting a Date Range

When specified, the properties $rangeselection and $rangeenddataname allow the end user to select a date range, that is, a start date and an end date. The first being a boolean to put the calendar into range selection mode. When true, the end user can select a range of dates by selecting one date after another. The $rangeenddataname property is the name of an instance variable to store the end of the data range and should be of type Date. The variable in $dataname will always hold the start date in range selection mode.

A boolean parameter, pInRangeSelection, will be passed as true with evDateClick when the end user has selected the first date, and false once they have selected the second. If $rangeselection is kFalse, this parameter is not passed, and therefore will return NULL if tested on evDateClick.

The evDateRangeChange fires every time a date range selection has been completed (and $rangeselection is kTrue). This passes two parameters: pStartDate and pEndDate. This means you can obtain a date range without using instance variables if you just need to react to the date range selected. evDateChange does not fire when $rangeselection is kTrue.

The $currdaycolor property applies to inside the current day indicator ring and not the whole cell. This ensures the type of cell is still understood by the end user. E.g. When $todayscolor is different to $daycolor, the end user can still see that it is today, even when they have selected it as the current day.

Events

The following events are generated when the end user clicks on a date picker and/or selects a date: you can create an event handling method on the control allowing you to load the selected date.

• evDateChange
  Sent to the control when the current date is changed (not fired when $rangeselection is kTrue); see below

• evDateClick
  Sent to the control when the user clicks on a date; only applicable to Calendar type date pickers.

• evDateDClick
  Sent to the control when the end user double clicks on a date (not fired when $rangeselection is kTrue)

• evDateRangeChange
  Sent to the control when a date range has changed (only fired when $rangeselection is kTrue)

• evCalendarViewChanged
  Sent to the control when the view changes in the calendar mode of the date picker; see below

Time Zone Offset

You can return the time zone offset of a date value when it is passed back from the client by using a two column row variable in $dataname; the first column should be defined as a Date Time variable and the second of type Number. If the server passes a new value to the client, then only the first column is significant and should specify the new date to be sent to the client.

When evDateChange signals that there has been a change on the client then the updated date is passed back to the server in the first column of the row variable as a UTC/GMT date value and the time zone offset of that value in the client's current time zone is passed back in the second column. The time zone offset is the number of minutes from UTC/GMT, e.g. GMT+2 the time zone offset is 120. This can be used to calculate the date in the time zone of the client.

If time zone offset information is not required, $dataname can be specified as a Date Time instance variable only.

Calendar View Change Event

The evCalendarViewChange event is triggered when the view changes in the calendar mode of the date picker; the parameters will vary depending on the current view:

• pView
  will be one of kJSDatePickerCalendarViewDays, kJSDatePickerCalendarViewMonths, kJSDatePickerCalendarViewYears, kJSDatePickerCalendarViewDecades

• pMonth
  Integer 1-12 for the current month in view (only populated if pView = kJSDatePickerCalendarViewDays)

• pYear
  Integer for current year in view (only populated if pView = kJSDatePickerCalendarViewDays or kJSDatePickerCalendarViewMonths)

• pStartYear
  Integer for the first year in view (only populated if pView = kJSDatePickerCalendarViewYears or kJSDatePickerCalendarViewDecades)

• pEndYear
  Integer for the last year in view (only populated if pView = kJSDatePickerCalendarViewYears or kJSDatePickerCalendarViewDecades)

Example

In the Holidays sample app uses the Date picker control set to kJSDatePickerStyleCalendar to allow users to select the dates for the holiday applications. The jsUserForm in the Holidays app has two buttons to allow the end user to select a “From” date or “To” date to specify the Begin and End dates for their holiday request. The “From” button has the following code:

On evClick
  Calculate iUsingCalendar as kTrue
  Calculate iSelectFrom as kTrue  ## this is the From button
  Do method openCalendar

The openCalendar class method moves the calendarPane into view on the main form and has the following code:

Do method enableFields (kFalse) ## enables the calendar pane & disables the name pane
Do $cinst.$objs.calendarPane.$top.$assign(90)
Do $cinst.$objs.calendarPane.$left.$assign(150)
Do $cinst.$objs.calendarPane.$visible.$assign(kTrue)

If you examine the Holidays app to look at the Date picker note that it is on a page pane field called calendarPane located on the jsUserForm. The $left property for the calendarPane is set to 990, to hide it from view, therefore you’ll need to select it using the Field List (right-click the remote form, select Field List and check the calendarPane) and set its $left property to 200 in the Property Manager in order to see it.

The $dataname of the Date picker control itself is set to iCalendarDate, an instance variable of type Date Time and subtype ‘D m y’; when the end user selects a date this variable is set to the selected date automatically.

The Date picker has a simple event method to detect when the end user double-clicks on a date cell; it has the following code:

On evDateDClick
  Do method closeCalendar

The closeCalendar class method passes the date from iCalendarDate into either the iFromDate or iToDate variable defined in the form; it has the following code:

If iSelectFrom  ## if the From button
  Calculate iFromDate as iCalendarDate
Else ## it must be the To button
  Calculate iToDate as iCalendarDate
End If
Do $cinst.$objs.calendarPane.$left.$assign(1250)
Do method enableFields (kTrue)

The final two lines of the method move the calendarPane off to the right and enables the fields on the Name pane.

Date Picker Localization

The following strings are available in the JS localization string table to allow you to localize strings for the Date Picker. Note that some of the strings are now arrays of strings to simplify localization (e.g. for months, days of the week, etc).

Date picker specific strings

The following are specific to the date picker control:

"ctrl_date_increase": "Increase"
"ctrl_date_decrease": "Decrease,
"ctrl_date_time_button": "Open time picker"
"ctrl_date_calendar_button": "Open date picker"
"ctrl_date_header": ["Select a Month", "Select a Year", "Select a Decade", "Select a Time"]

Generic strings

The following strings are available for controls that refer to dates, including the date picker:

"month_names": ["January", "February", "March", "April", "May", "June", "July", "August",
"September", "October", "November", "December"]
"month_names_short": ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct",
"Nov", "Dec"]
"day_names": ["Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday",
"Saturday"]
"day_names_short": ["Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat"]
"date_units": ["Day", "Month", "Year", "Decade"]
"time_units": ["Hour", "Minute", "Second", "Millisecond"]

The following example applies Spanish text to the Calendar:

<script type="text/javascript">
  jOmnisStrings.es = {
    "month_names":      ["Enero", "Febrero", "Marzo", "Abril", "Mayo", "Junio", "Julio", "Agosto", "Septiembre", "Octubre", "Noviembre", "Diciembre"],
    "month_names_short":     ["enero", "feb.", "marzo", "abr.", "mayo", "jun.", "jul.", "agosto", "sept.", "oct.", "nov.", "dic."],
    "day_names":        ["Domingo", "Lunes", "Martes", "Miércoles", "Jueves", "Viernes", "Sábado"],
    "day_names_short":      ["DOM", "LUN", "MAR", "MIÉ", "JUE", "VIE", "SÁB"],
    "date_units":     ["Día", "Mes", "Año", "Década"],
    "time_units":        ["Horas", "Minutos", "Segundos"],
    "ctrl_date_header":      ["Selecciona un mes", "Seleccione un año", "Seleccione un década", "Seleccione una hora"]
};
</script>

See the Localization chapter for more information about setting the strings in the jOmnisStrings object.

Device Control

Group	Icon	Name	Description
Other		Device	Allows access to hardware and services on a mobile device using the JS wrapper

The Device Control allows you to access features on a mobile device, such as getting the location of the end user’s device using GPS, retrieving the contacts information from the device, or returning images from either the camera or photo library on the device. Depending on the type of application you are creating, some or all these features may be useful to enhance the interactivity and functionality of your app for end users when they run your app on a mobile device, such as a phone or tablet.

The Device control itself is invisible and to enable access to the device functionality you need to add the Device Control to your remote form and assign an action to the $action property of the control at runtime using methods.

Running the Device Control and Compatibility

Important Note: most of the actions enabled via the Device Control only work in an application that is running inside one of the JavaScript Wrappers (or Omnis App Manager) on a mobile device. There are some exceptions to this, including the Email, Call, SMS and other actions, which will attempt to work if the app is running in a standard web browser, but it’s not guaranteed the actions will always work as expected. Check the Running Device Actions in the Browser section to see which actions work outside the wrapper.

Therefore, you will need to compile your app as a standalone mobile app using the JavaScript Wrappers (for iOS or Android), and test your app in a simulator or directly on a mobile device by running the native app, for the majority of the actions in the Device control to work. Alternatively, on iOS you can use the Omnis App Manager to test your mobile app and the functions of the Device Control, prior to compiling it into a standalone app using the iOS wrapper.

There is a Tech Note describing how you can use the Device control and a device’s camera to return the info from a barcode or QR code: see TNJC0013 “Reading a barcode or QR code in a mobile app”; this demonstrates how you use the Device control and the Omnis App Manager to test your app.

Testing Hardware Features

The Device control supports several hardware functions, some of which may not be available on specific devices or mobile operating systems. You should test your app thoroughly on the specific devices you wish to support with each of the device functions that you want end users to access.

For some of the hardware features, Omnis can detect if they are not present on the current mobile device running the app. For example, if a device does not have a hardware camera, then the action kJSDeviceActionTakePhoto will report an evPhotoFailed message.

Properties

Note the Device control is invisible, therefore some of the visual properties normally associated with JavaScript components may not be relevant, such as $alpha; the following properties are available.

Contact properties

There are several properties that are only relevant when the device action is set to kJSDeviceActionGetContacts which allows you to obtain information from the contacts database on the device. By setting these properties you can control what information is returned from the Contacts data on the device. For example, if $contactname is set to kTrue the contact request will include name info, and so on.

Device Action Properties

The following list summarizes the actions available, and the constant needed for the $action property:

• kJSDeviceActionBeep – Beep Device
  forces the device to play the default beep

• kJSDeviceActionGetBarcode – Get a Barcode or QR code
  returns the output from Barcode/QR-code scanning function on the device (if available); the output is usually a string which can be a URL

• kJSDeviceActionGetContacts – Get contact info
  returns contact information from the device; note there are other properties to determine the content or extent of the contact information returned

• kJSDeviceActionGetGps – Get the device location
  returns the location data using the GPS function on the device

• kJSDeviceActionGetImage – Get an Image
  returns an image from the device’s image gallery

• kJSDeviceActionGetUniqueID – Get Unique ID
  returns the unique ID of the device

• kJSDeviceActionMakeCall – Make a Phone Call
  forces the device to make a phone call (if available)

• kJSDeviceActionSendEmail | kJSDeviceActionSendSms – Send an Email or SMS
  forces the device to send an Email or SMS / text message (if available)

• kJSDeviceActionTakePhoto – Take a Photo
  forces the device to take a photo (if a camera is available)

• kJSDeviceActionVibrate – Vibrate the Device
  forces the device to vibrate (if available)

The basic method to assign an action to the Device control is as follows:

Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceAction…)
# where oDevice is the name of the Device control

Events

Beep Device Action

To make the device play a given sound sample, you need to assign the constant kJSDeviceActionBeep to the $action property. This is one-way communication with the device which will result in the device playing a sound sample. To specify which sound to play, you need to set the $soundname property to the name of the sound sample to be played which must be compiled into the wrapper application. The wrapper contains a default sound called “notify”.

Example

On evClick
  Calculate $cinst.$objs.oDevice.$soundname as "notify"
  Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionBeep)

Get Barcode Device Action

You can return a Barcode or QR code by assigning the constant kJSDeviceActionGetBarcode to the $action property. If the action is successful an evBarcodeReturned event is sent to the Device Control and the barcode data is returned in the pDeviceBarcode event parameter; the barcode data is usually a string containing Alphanumeric characters, such as a product number or name, or in the case of a QR code it could be a website URL.

Example

# event method for “Scan” button
On evClick
  Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionGetBarcode)

The event method for the Device Control could be:

On evBarcodeReturned
  Do iProducts.$search(iProducts.iProdQrCode=pDeviceBarcode,kTrue,kFalse,kFalse,kFalse)
  If iProducts.$line=0
    Do iProducts.$line.$assign(iProducts.$linecount)     ## other
  End If
  Do iProducts.$loadcols()
  Calculate iAmount as 1
  If iProdName='Other'
    Calculate iProdName as pDeviceBarcode     ## show the value of the barcode
  End If

There is a Tech note describing how you can return the info from a barcode or QR code using the Device control and the Omnis App Manager to test the Device control: see TNJC0013 “Reading a barcode or QR code in a mobile app”.

Vibrate Device Action

To make the device vibrate you need to assign the constant kJSDeviceActionVibrate to the $action property. This is one way communication with the device which will result in the device vibrating for a short period of time.

Example

On evClick
  Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionVibrate)

Get GPS Device Action

To receive location (GPS) data from the device you need to assign the constant kJSDeviceActionGetGps to the $action property. The evGpsReturned event is sent when the location data has successfully been returned. The event parameter pDeviceGps will contain the returned data which is formatted as a string containing longitude and latitude data separated by a colon “:”. If the device fails to obtain location data or the device does not support location tracking, the returned data will be a longitude and latitude of zero, i.e. “0.0:0.0”.

Example

On evClick
  Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionGetGps)
On evGpsReturned
  Calculate $cinst.$objs.oMap.$latlong as pDeviceGps

Take Photo / Get Image Device Action

To take a photo with the device (if a camera is present) or to return an image from the device’s gallery the kJSDeviceActionTakePhoto or kJSDeviceActionGetImage constants need to be assigned to the $action property. The $deviceimage property of the Device component needs to be assigned to an Instance Variable of type Binary or Character to hold the incoming image data from the device. If the device is successful in returning an image, the event evPhotoReturned or evImageReturned will be called to indicate that an image was returned, whereupon the instance variable specified in $deviceimage will be populated with the base64 encoded image data. In the event of the device failing to return an image or the user cancels the request, the event evPhotoFailed or evImageFailed will be sent.

Example

On evClick
  Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionTakePhoto)

In this case the instance variable iImage is a Binary variable. The $deviceimage property is set to iImage. There is another Binary variable called ipic which is associated to a picture component. By copying the returned image in iImage into the picture component variable you can display the image returned from the device.

On evPhotoReturned
  Calculate iPic as iImage

In addition to the TakePhoto action, the device control has the client-executed method, $takephoto(iWidth, iHeight) which provides a shorthand way of taking a photo with specific dimensions.

Image Aspect Ratio

The $imageaspect property allows you to specify the aspect ratio of a photo; it only affects images taken with the TakePhoto device action, not the GetImage action. This functionality is only available in the iOS and Android wrappers - version 3.1.0 & later.

The $imageaspect property takes a floating number, indicating width divided by height. If set to 0, no aspect ratio will be enforced, and the standard camera application will be used for taking photos. If greater than zero, a custom camera view within the app will be used, which shows the preview stream in the specified aspect ratio, and an image of the specified aspect will be returned. A value of 1 will enforce a square image.

The $imageaspect property can be used in conjunction with $imagemegapixel to take an image of specific dimensions, that is:

• $imageaspect = targetWidth / targetHeight

• $imagemegapixel = (targetWidth * targetHeight) / 1,000,000

Get Contacts Device Action

To obtain information from the contacts database on the device the kJSDeviceActionGetContacts constant must be assigned to the $action property. To accommodate the contact database the $dataname property needs to be assigned to an Instance Variable of type List. The properties starting with $contact... determine which contact fields will be obtained from the device: setting these properties to true or false will determine if that specific field is returned from the device.

The evContactsReturned event is triggered when the contact database has been returned, and in the case of the device failing to obtain the contact database the evContactsFailed event is triggered.

Example

On evClick
  Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionGetContacts)
# retrieve info from the Contact list
On evContactsReturned
  Set reference lNameRow to iDeviceList.nam.1
  Calculate iNameRow.FirstName as lNameRow.givenName
  Calculate iNameRow.MiddleName as lNameRow.mid
  Calculate iNameRow.Surname as lNameRow.familyName
  Calculate iNameRow.Prefix as lNameRow.honorificPrefix
  Calculate iNameRow.Suffix as lNameRow.honorificSuffix
  Calculate iNameRow.Nickname as iDeviceList.nickName

Contacts data structure

• displayName: The name of this Contact, suitable for display to end-users (String).

• name: A row containing all components of a contact’s name.
  formatted: The complete name of the contact (String).
  familyName: The contact’s family name (String).
  givenName: The contact’s given/first name (String).
  middleName: The contact’s middle name (String).
  honorificPrefix: The contact’s prefix (example Mr. or Dr.) (String).
  honorificSuffix: The contact’s suffix (example Esq.) (String).

• nickname: A casual name to address the contact by (String).

• phoneNumbers: A list of all the contact's phone numbers.
  type: A string that tells you what type of phone number this is (example: 'home') (String).
  value: The phone number (String).
  pref: Set to true if this is the user's preferred value (Boolean).

• emails: A list of all the contact's email addresses.
  type: A string that tells you what type of email this is (example: 'home') (String).
  value: The email address (String).
  pref: Set to true if this is the user's preferred value (Boolean).

• addresses: A list of all the contact's addresses.
  pref: Set to true if this is the user's preferred value (Boolean).
  type: A string that tells you what type of address this is (example: 'home') (String).
  formatted: The full address formatted for display (String).
  streetAddress: The full street address (String).
  locality: The city or locality (String).
  region: The state or region (String).
  postalCode: The zip code or postal code (String).
  country: The country name (String).

• ims: A list of all the contact's IM addresses.
  type: A string that tells you what type of IM this is (example: 'home') (String).
  value: The IM username (String).
  pref: Set to true if this is the user's preferred value (Boolean).

• organizations: A list of all the contact's organizations.
  pref: Set to true if this is the user's preferred value (Boolean).
  type: A string that tells you what type of organization this is (example: ‘work’) (String).
  name: The name of the organization (String).
  department: The department the contact works for (String).
  title: The contacts title at the organization (String).

• birthday: The birthday of the contact (Character).

• note: A note about the contact (String).

• photos: A list of the contact's photos. In general, there will be only one row.
  type: A string that tells you what type of field this is (example: 'home') (String).
  value: The photo data, encoded as base64. These are small, thumbnail photos. (String).
  pref: Set to true if this is the user's preferred value (Boolean).

• categories: A list of all the contacts user defined categories.
  type: A string that tells you what type of category this is (example: 'home') (String).
  value: The value of the field (such as a phone number or email address) (String).
  pref: Set to true if this is the user's preferred value (Boolean).

• urls: A list of web pages associated with the contact.
  type: A string that tells you what type of web page this is
  (example: 'home') (String).
  value: The website URL (String).
  pref: Set to true if this is the user's preferred value (Boolean).

Make a Call Device Action

To make a phone call from the device the kJSDeviceActionMakeCall constant is used. Before assigning this action the phone number for the call should be specified in the $communicationaddress property.

Example

Do $cinst.$objs.oDevice.$communicationaddress.$assign("0123456789")
Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionMakeCall)

Send an SMS or Email Device Action

To send an SMS (text message) or Email from the device the kJSDeviceActionSendSMS or kJSDeviceActionSendEmail constant is used. Before assigning this action the phone number or list of numbers (for the SMS action) or the email address (for Email) should be specified in the $communicationaddress property. The message body of the SMS or email can be specified in $communicationdata. The subject of the email can be specified in $communicationsubject.

Example

Do $cinst.$objs.oDevice.$communicationaddress.$assign("0123456789")
Do $cinst.$objs.oDevice.$communicationdata.$assign("A message")
Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionSendSMS)

You can send a SMS to multiple recipients by assigning a comma-separated list of phone numbers to $communicationaddress. For example:

Do cinst.$objs.oDevice.$communicationaddress.$assign("0123456789,0987654321,0192837465")

Getting the Unique ID Action

You can return the unique ID of the device running your standalone app using the kJSDeviceActionGetUniqueID action.

Do $cinst.$objs.oDevice.$action.$assign(kJSDeviceActionGetUniqueID)

The ID is unique to each JS wrapper installation and changes when the app is re-installed.

If successful, the action triggers the evUniqueIDReturned event with pDeviceUniqueID containing the ID. You can use the $event method of the device control to return the ID:

On evUniqueIDReturned
    Calculate iDeviceID as pDeviceUniqueID

Running Device Actions in the Browser

Some of the Device actions (those listed below) may work in your application when running in a standard desktop web browser, that is, outside one of the JavaScript wrappers. However, the results of running any of these actions in a web browser are very unpredictable, mainly due to the great variation among different web browsers and operating systems, therefore we do not support apps using these actions in a web browser. If you do use them however, you should test these actions thoroughly.

Call, SMS, and Email actions

You can use the Call, SMS, and Email actions in an application running in a browser, and not in a wrapper, and the web browser on the client will attempt to execute the relevant action. For example, if you run the Email action in a web browser, it will attempt to initiate an email in the email program on the client.

Vibrate and Location actions

When run outside the wrapper the Vibrate action is not currently supported on iOS Safari, and hence other iOS browsers, as they are all based on Apple's WebKit.

The Location action only works over HTTPS in recent browsers.

Take Photo and Get Image

The Take Photo and Get Image Device actions may work in a web browser if a camera is available or access to the image gallery is available on the client, and only in a secure context using HTTPS.

Droplist Control

Group	Icon	Name	Description
Lists		Droplist	List that drops down when clicked

The Droplist Control displays a dropdown list from which the end user can make a selection; the contents of the list can be supplied from a default list or a list variable which can be built dynamically. There is an example app in the Samples section in the Hub in the Studio Browser (called JS Droplist, Combo, Popup), and the same app is available in the JavaScript Component Gallery. The following screen shows the Vintage JS Theme in use.

The $seldataname property allows you to specify the name of an instance variable, which will be populated automatically with the selected value from the droplist.

Droplist Style

The Droplist and Combo Box controls have the $dropliststyle property to allow you to apply a rounded style to the list part of the control. The style of the droplist is a kJSDropListStyle... constant:

• kJSDropListStyleDefault
  The default droplist style (shown below on Windows)

• kJSDropListStyleRounded
  The $borderradius property is applied to the combined field and list part of the control when it is dropped; if the dropped list is wider than the field, its width is temporarily increased to match (shown below on macOS)

Horizontal Padding & Extra space

The Droplist and Combo Box controls have the $horzpadding property to allow you to add extra horizontal padding, in pixels, to the text in the list part of the control. This property has also been added to Combo boxes.

The $extraspace property can be used to add extra space to the line content in the list. If $extraspace is zero, the height of each row is the default height of the row content. If $extraspace is greater than zero, the height of each row is the font height + $extraspace.

Events

When a line in a Droplist is selected an evClick is generated with the selected list line reported in pLineNumber.

Example

The jsUserForm in the Holidays sample app uses a droplist to allow users to select an employee to view their holiday leave requests. The $dataname of the empList Droplist control is set to iEmployeeList which is built via the $construct method when the form is opened.

# buildEmpList class method in the jsUserForm
Do iEmployeeList.$definefromsqlclass('sEmployee')   ## the schema
Do iEmployeeList.$sessionobject.$assign(iSQLObjRef)
Do iEmployeeList.$select()
Do iEmployeeList.$fetch(kFetchAll)
Do iEmployeeList.$cols.$add(iEmpFullName)
Calculate lTotal as iEmployeeList.$linecount
For lNum from 1 to iEmployeeList.$linecount step 1
  Calculate iEmpFullName as con(iEmployeeList.[lNum].FirstName,kSp,iEmployeeList.[lNum].LastName)
  Do iEmployeeList.[lNum].$assigncols(,,,,,iEmpFullName)
End For
Do iEmployeeList.$line.$assign(1)
Calculate iName as iEmployeeList.iEmpFullName

The droplist control contains a $event method which is triggered when the user selects a line in the list; the code in the event method redraws the holiday list for the selected employee:

On evClick
  Do method buildHolidayList
  Calculate iName as iEmployeeList.[pLineNumber].iEmpFullName
  Do $cinst.$objs.pagePane.$objs.holidayList.$redraw()
  Do $cinst.$objs.pagePane.$objs.empName.$redraw()

The buildHolidayList class method builds the list of holiday requests for the selected employee and redraws the form.

Entry Field

Group	Icon	Name	Description
Entry Fields		Entry Field	Standard edit field for data entry or display

The JavaScript Entry Field (or Edit control) is a standard Single Line Entry field which you can use to display data or allow the end user to enter data into a Remote Form, such as the Name and Address fields on a Contact form. You can add a text label to each Entry field on the form, to identify its purpose, or you can use the $label property to add a dynamic label. You can add a content tip to each entry field to help the end user fill out the form. The following screenshot shows entry fields with standard label objects and content tips.

Many of the example apps under the Samples option in the Hub in the Studio Browser use entry fields, as well as the apps in the JavaScript Component Gallery, including the JS Input Border and Button Styles example app. You can examine these apps and code to see how entry fields can be used.

Dataname: $dataname

The Entry field can handle all types of character or numeric data stored in the instance variable specified in $dataname: the type of data the edit control can handle will depend on the data type of the instance or column variable assigned to the control. To create an Entry field, you need to drag the Entry field from the Component Store and drop it onto your remote form. You can enter a suitable name in the $name property in the Property Manager, and then you can assign a variable in the $dataname property, that is, it must be an instance variable for a remote form edit control. You can enter the name of an existing variable, or you can enter a new variable name in the $dataname property in the Property Manager, then press Return and the New Variable Name dialog will open allowing you to define the new instance variable; in this case the instance variable is added to the current remote form class (visible in the Method Editor under the Instance tab in the Variables pane).

If you use one of the wizards to create a remote form, the edit controls are added to the form and the required variables are assigned to their $dataname properties automatically.

Single or Multi-line Fields

When the $issingleline property is kTrue (the default), the edit control only allows data entry on a single line, so longer text entries will scroll the entry field to the right. You can create a Multi-line Entry field by setting $issingleline to kFalse, and resizing the height of the field downward to allow data to be entered on multiple lines, using standard line-wrap.

Text Properties and Field Styles

You can set the text style or font of an Entry field using the properties under the Text tab in the Property Manager (when the Advanced option is enabled). The text or font properties are:

See below for content tips and dynamic text label properties.

As an alternative to controlling the font or text of an Entry field using the text properties, you can use a pre-defined Field Style specified in the $fieldstyle property. The field styles are set up in the #STYLES system table in the library and are available for many control types, and can contain settings for: $font, $fontsize, $fontstyle, and $textcolor. Setting up field styles for JS Entry fields is the same as for Window class Entry fields which is described here: Field Styles.

Dynamic Labels

You can add a dynamic or “floating” label to Edit fields (and droplists, or the editable part of combo boxes), rather than using separate text labels for the fields in a form. The following properties are available to support dynamic labels:

To enable a dynamic label, you need to add the label text to the $label property for the control. Once you have added text to the $label property, you can double-click on the label to edit the label text (pressing Return confirms an update). By default, the text label is inset into the top border of the control ($labelposition = kJSLabelPosBorder), unless $labeliscontenttip is true, but $labelposition can be changed to above or left of the control.

If $labeliscontenttip is true, and the field does not have the focus or any content, the text in $label is displayed inside the field like a content tip (see Lastname below). In this case, when the focus passes to the field, the label will jump from within the field area to above the field (see Firstname below). You can use this method of adding content tips to fields as an alternative to using the $::contenttip property.

By default, $inputborderstyle is set to kJSInputBorderStyleOutlined and the label is displayed above the field inset into the border. However, you can set $inputborderstyle to kJSInputBorderStyleUnderline, in which case the field is displayed with underline only (the border is hidden). When the field gets the focus, the label will jump to above the field (see Email field).

Content Tips

If you are not using the $label and $labeliscontenttip properties, you can use separate label objects and the $::contenttip property to add descriptive text to entry controls. For example, for a Last name field you could enter ‘Enter your last name’ into $::contenttip to prompt the end user for their last name. As soon as the end user starts to type something into the field the content tip will disappear.

The $contenttiptextcolor property is the text color used for the content tip text, or the text in $label when displayed as a content tip, for an edit field, droplist, or the editable part of a combo box. This property applies when using the $::contenttip property or $labeliscontenttip in conjunction with $label.

Password Fields

When kTrue, the $ispassword property ensures a place-holder character is displayed when the end user enters something in the field (only applies when $issingleline is kTrue).

Borders

The $effect property lets you set the type of border for the edit control and its value is one of the kJSborder… constants. The kJSborderDefault setting means the control has the default border type as specified by the current client operating system and browser type. For some clients the border may change when the state of the control changes.

The $borderradius property lets you add rounded corners to the edit control. A single value specifies the radius for all four corners, but you can specify a different value for each corner by specifying four-pixel values separated by – (hyphen), in the order topleft, topright, bottomright, bottomleft. If bottomleft is omitted, the topright value is used. If bottomright is omitted, the topleft value is used. If topright is omitted, the topleft value is used.

Horizontal and Vertical Padding

The property $horzpadding allows you to add extra horizontal padding, in pixels, inside the control; when applied this property adds padding on the left and right of the text within the edit control.

Existing users should note: when a library is converted to Studio 10.2, the $horzpadding property for all JS Entry fields will be set to 4 automatically if they were previously set to 0, which is the default for all new Entry fields; if $horzpadding is set to any other value it is not changed. After conversion, you can change the value of $horzpadding.

The $vertpadding property allows you to add vertical padding above and below the text inside the control’s border; the property only applies when $issingleline=kFalse as single line edit controls are vertically centered.

Events

The Edit Control reports the evBefore and evAfter events, so you can detect when the focus is about to enter or leave a field in the $event method and process the event accordingly: note evAfter is only reported if the data in the control has changed. You must enable any of the events for the Entry field in its $events property before any of the events are reported.

The evKeyPress event is reported when the user has pressed a key or keys, allowing you (amongst other things) to create a “Linked List”. The $linkedobject property allows you to link a list control to the edit control to create a special type of list called a "Linked List" which updates itself automatically as the user types into the edit control: see the Linked Lists section.

Soft Keypad Input Type

Many iOS and Android devices have different software keypad layouts which are displayed depending on the type of data required, that is, the keypad content and layout adapts to the content required. For example, if numeric content is required, a numeric keypad is displayed. The $inputtype property allows you to specify which keypad is displayed on touch devices depending on what type of content you wish the end user to enter into the edit control. This property only applies to touch devices and in this case $inputtypetouchonly is set to kTrue by default, and it only applies if $ispassword is false (if true the default keypad is shown).

• $inputtypetouchonly
  When true (the default for touch devices) the specified $inputtype is applied on touch devices, otherwise it is ignored

• $inputtype
  The HTML input type used by the edit field. The browser may give this special handling, e.g. by popping up a specific software keypad. (The property is ignored if $ispassword is enabled.) The input type is specified using a constant:
  kJSInputTypeDefault: the standard Qwerty keypad (in most cases)
  kJSInputTypeNumber: the standard Qwerty keypad flipped to numbers
  kJSInputTypeTelephone: the telephone number keypad
  kJSInputTypeEmail: the Qwerty keypad plus the @ and dot keys
  kJSInputTypeUrl: the Qwerty keypad plus dot, forward-slash, and ‘.com’ keys
  kJSInputTypeDate: shows a date picker; see below

If $negallowed is true, the 'number' type is not selected as this does not guarantee the presence of a minus key. You should note that a touch device's virtual keyboard is more likely to use a numeric keyboard if $negallowed is false.

Input Masks

You can control the format of the data entered into an Entry field by defining an input mask using the $inputmask property. If the user enters an invalid character, the control will briefly become highlighted and the input will be rejected. For edit fields of character type, the data variable will contain mask characters. For number/integer fields, the data is the unmasked number value.

The #JSMASKS system table stores the input masks for JS Entry fields for the library, which are also accessible in the $javascriptinputmasks notation group.

There are a number of differences between the existing Masked entry field on the thick client and input masks for JS Entry fields:

• On the thick client, the user must complete the masked entry field before focus can leave the field. This is not the case with JS masked edit fields - fields can be left partially filled.

• JS input masks do not support any of the 'control characters' which can be used on the thick client.

• The JS edit control does not have a $formatstring property (like the thick client masked entry field).

• The JS edit control has two unique properties: $inputmaskguide and $maskvaluevalid.

• JS input masks can be changed dynamically as the user types using the $processmask client method.

• There is visual feedback when entering invalid characters in a masked JS edit field.

Incompatible input types are prevented from being used with input masks. For example, the kJSInputTypeNumber and kJSInputTypeEmail values of $inputtypes are incompatible with input masks. If $inputtype is one of these values, and $inputmask is set, the input element will use the text type (effectively kJSInputTypeDefault).

$inputmask

The value of $inputmask may contain a combination of fixed and special characters. Note that underscores cannot be used as these are used as placeholders.

$inputmaskguide

The $inputmaskguide boolean property controls whether or not a guide is shown. If true, placeholder and non-placeholder mask characters are always displayed. If false, placeholder characters are hidden, and mask characters are only shown when the user reaches them as they type. The property is false by default.

$maskvaluevalid

The $maskvaluevalid property is a boolean, read only, runtime only property. A value of kTrue indicates that the field is completed, and therefore valid.

$processmask

A client method named $processmask can optionally be added to an edit control. This allows the mask to be changed as the user types. The method is called any time the value in the field changes, and receives a parameter pInput which contains the user input. Note that the user input parameter could contain anything as the event is sent before mask validation occurs (the mask needs to be updated before it can validate input). As a general use case, $processmask could be used to create the effect of optional characters.

Date Picker

The constant kJSInputTypeDate can be assigned to the $inputtype property to allow the end user to select a date using the Date Picker. When $inputtype is set to kJSInputTypeDate, and $inputtypetouchonly is set to false, a date/time picker will be used to pick the value for the Entry field. $dataname must be set when using kJSInputTypeDate and other input types such as kJSInputTypeNumber.

The format of the date picker should be calculated from $dateformat ($dateformatcustom if $dateformat == kJSFormatCustom). If $dateformat is kJSFormatNone, then the control attempts to fall back to the dataname subtype.

The $datepickeroptions property allows you to customize display options in a calendar style popup date picker, plus the ability to display the isoweek number has been added. $datepickeroptions (and $columndatepickeroptions in the datagrid) is an integer type property with the ability to switch on/off the $showheading, $showmonthnav, $showweeknumber properties in the popup date picker in Entry fields and Data grids. The constants for $datepickeroptions are: kJSDatePickerOptionsShowHeading, kJSDatePickerOptionsShowMonthNav, kJSDatePickerOptionsShowWeekNumber, which can be selected in the Property Manager or added together to set the options in your code. The kJSDatePickerOptionsShowWeekNumber option shows the isoweek number down the left-hand side of the calendar layout.

By default, kJSDatePickerOptionsShowHeading and kJSDatePickerOptionsShowMonthNav are set to true and kJSDatePickerOptionsShowWeekNumber is set to false to maintain behavior in previous versions.

Custom Date Formats

You can specify multiple date formats in the $dateformatcustom property for entry fields in a remote form, which allows end users to input a date using one of a number of possible formats, rather than being limited to a single date format. The multiple date formats can be entered into $dateformatcustom separated using “|” (the pipe character), for example:

D/M/y|D m y|d-m-y|D/M/Y|D/m/y|D-M-y|D M y

When parsing data entered by the user, the client uses each format in order, until one successfully matches the user input. The client uses the first format in the list to format the data for display.

Numeric Data Entry Validation

Entry fields (and data grids) validate numeric data as it is entered, for JavaScript remote form variables with a numeric data type. When the end user tries to enter invalid data into the field, such as an alphabetic character, the data is rejected, i.e. it cannot be entered into the field, and the field is highlighted momentarily to indicate an error (the default action is to show a red border).

When leaving the entry field, the value is normalized: so for integer data it is constrained to the valid range or for other numbers it is rounded to the correct number of decimal places; also, leading zeroes are removed, and so on.

Negative Numbers and Uppercase

The $negallowed property for Entry fields allows for the display of negative number values. If this is kFalse and the end user tries to enter a negative sign, the sign will be rejected.

When set to kTrue, the $uppercase property forces all character data to be shown in uppercase.

Zero Values

When the $zeroempty property is set to kFalse (the default), a zero character is shown in a numeric type entry field. Otherwise, you can set $zeroempty to kTrue to ensure a numeric edit field is empty when the variable value is zero. You can have greater control over the display of numbers using Input masks.

Multiline Edit Scrolling

Text wrapping for the Multiline Edit field is prevented if the $horzscroll property is enabled (kTrue). However, if $autoscroll is true, then text wrapping does occur (since $autoscroll is on by default).

Shortcut Keys

There are a number of shortcut keys defined in the Entry field that allow end users to select text and move the insertion point within the control (the shortcuts also apply to Window class Entry fields).

The shortcut keys are stored in the Omnis preference $keys which can be edited in the Property Manager (click on the Prefs option in the top level of the Studio Browser). The shortcut keys for Entry fields are stored in a configuration file called ‘keys.json’ and located in the Studio folder (this is the same file containing the shortcut keys for the Method Editor). The file is created the first time you edit the shortcuts in the Property Manager and click OK.

Auto Correction, Capitalization, Completion

You can control the Automatic Correction, Capitalization And Completion of text entered by the end user into an edit control. This functionality is built into the browser whereby text is ‘corrected’ or updated automatically: note that not all browsers support all of these functions, so you should check support in individual browsers on different platforms.

You should note that Auto correction, Auto capitalization and Auto completion (the properties $autocorrect, $autocapitalize & $autocomplete) only work in Omnis when they are enabled on the client Mac computer. Note also that $autocapitalize only applies when using a virtual keyboard on a device.

Auto Correction

If true, the $autocorrect property specifies that text entered into a JavaScript Entry field is auto-corrected, as the end user types into the field. Currently this feature is only implemented in Safari and iOS browsers (note some browsers, such as Chrome, will highlight incorrectly spelled words, but not correct them automatically). This property defaults to kTrue for backwards compatibility.

Auto Capitalization

The $autocapitalize property controls whether or not text typed into an edit field is capitalized, as appropriate, automatically. Possible values include:

• kJSAutoCapitalizeSentences
  Automatically capitalize the first character of new sentences (default and previous behaviour)

• kJSAutoCapitalizeWords
  Automatically capitalize the first character of each word

• kJSAutoCapitalizeNone
  No automatic capitalization

Auto Completion

The $autocomplete property controls whether or not text is completed automatically. If true, the browser will attempt to complete text based on content previously entered into this type of field (e.g. name type fields will display a list of names based on the first letter typed): the browser will display a list of suggested text for the end user to select from. There may be many possible values for some types of field, which will be based on values previously entered into any website for a field with the same 'autocomplete' value, e.g. 'email'.

Content Selection

The $setselection method allows you to select a range of characters within the Entry field; note the method only works on the client.

• $setselection(iFirstSel[,iLastsel]))
  Sets the focus on and selection range of the content in an Entry field. If iLastSel is omitted selection will occur to the end of the edit field. Returns the selected text.

$setselection has two parameters, both Integer, iFirstSel and iLastSel to set position of the characters to be selected within the edit control. iLastSel selects up to, but not including, the character specified, and if omitted the content in the edit field is selected to the end. The method returns the content selected.

You can also use $cinst.$setcurfield(vNameOrIdentOrItemref [,bSelect=kFalse]) to put the focus in the specified field, and if bSelect is kTrue and the client supports it, the contents is selected. This can be used on the client or in a server method; see Remote Form Methods for more info.

Dictation Text Entry

You can enter text into an edit field using the built-in Dictation feature on macOS, which tries to convert audible speech into meaningful text. To allow dictation to occur the focus must be in the edit field, which must itself be editable, i.e. not disabled, and dictation must be enabled on the client computer. Dictation is available in Single- and Multi-line edit fields, the edit part of Combo boxes, and edit fields in Complex grids in remote forms (and window classes), that is, wherever text input is required.

Enabling Dictation

Support for Dictation is turned on in Omnis by default, but you can change it in the config.json file. There is a “useDictation" item in a “macOS" section of the config.json file, which is set to true to enable dictation; note you have to quit Omnis to change the config.json file, and any change will be effective when you restart Omnis.

"macOS": {
  "useDictation": true
  }

Using Dictation in Edit fields

To enter dictation mode, place the cursor in the edit field and select the Start Dictation option from the Edit menu on macOS, or press the Function (Fn) key twice. This will open the dictation popup (usually in the center of the screen, depending on space) and put the computer in listening mode. Dictation can be stopped or cancelled by clicking on Done in the popup, or using the Stop Dictation menu option.

Dictation Levels

There are two levels of dictation provided by macOS: Standard or Enhanced. These can be enabled from System Preferences->Keyboard->Dictation, or on older systems System Preferences->Dictation & Speech.

Standard dictation (the default) requires an internet connection and provides speech to text translation using Apple’s servers. On older systems, the text is not translated until the Done button is pressed on the popup. On newer systems text is translated and placed into the field while the end user is speaking. Dictation will end automatically when text is entered from the keyboard or the field loses the focus.

Enhanced dictation requires the enhanced dictation engine to be downloaded, which is approximately 500MB for each language pack. This will then provide local machine based translation. Features of enhanced dictation are live feedback and offline support. With live feedback the text is rewritten while speaking. Enhanced dictation also provides spoken dictation commands such as “Select All”, “Cut that”, “Move left”, and so on. When enhanced dictation has been started it is possible to change the currently focused edit field and move the popup to the new field and continue to dictate. It is also possible to type and dictate at the same time.

Tooltips and Carriage Return

Text in tooltips will wrap if it contains a carriage return character or other wrapping characters when the text width of the tip would exceed a third of the screen width. In previous versions, tooltips only used CR to line wrap when the width of the tip was greater than half the screen width.

In addition, the CR character is no longer displayed. However, any other control characters (characters less than space, or the character 0x7f) are displayed using the Unicode control character page.

This change also applies to tooltips for window class controls.

File Control

Group	Icon	Name	Description
Media		File Control	Allows end users to upload or download files

The File Control allows end users to upload or download files inside a remote form: from Studio 10 the control allows multiple files to be uploaded. The control itself is invisible and to enable the upload or download functions, you need to assign an action at runtime, to the $action property. The Upload and Download actions are represented by the constants kJSFileActionUpload and kJSFileActionDownload.

There is an example app called JS File Upload/Download in the Samples section in the Hub in the Studio Browser showing how you can upload and download files, and the same app is available in the JavaScript Component Gallery. In addition, the Contacts example app, under the Applets option in the Hub, uses the file control to upload a contact photo.

When in Upload mode the File control opens a standard Upload dialog to allow the end user to select a local file or files to upload. There are various properties to allow you to change the text and error messages on the Upload dialog, including $choosefilesbuttontext that allows you to specify the text on the ‘Choose Files’ button. In addition, you can setup the File control to receive files that are dropped onto the File control in the remote form itself.

When in Download mode, the File control can provide a standard hyperlink pointing to the file to be downloaded, or you can assign a row variable to the $dataname of the control containing the binary data of the file to download, or a list for multiple file downloads. The download function is supported for mobile devices, and if the browser can interpret the contents of the file it is shown in a new browser window or tab.

The $maincolor property is the main color used throughout the control (upload area, upload button, progress bars, completion indicators, upload spinner).

Mobile limitations or issues

Support for the Upload or Download function on mobile devices depends very much on the device itself and the mobile operating system. Therefore, if you intend to include an upload or download function in your app, you should test your app thoroughly on all devices you wish to support. With this in mind, we are aware of the following limitations or issues regarding different mobile operating systems.

Upload does not work on iOS because the input element to select a file does not become enabled since iOS does not support it. Download works via the hyperlink because mobile Safari has been implemented to support hyperlinks. However, the other download mechanism does not work: on iOS for example, the download actually transfers the data to the client, but then the browser does not carry out any action with the data, so the downloaded file is lost.

Uploading Files

To enable the upload function, you need to set up a list to receive the uploaded files and you must set the $action property to kJSFileActionUpload. In addition to using the File control to allow the end user to select files by clicking an Upload button, you can switch the control to receive files that are dropped onto the control; see Dropping Files.

Setting up the file list

The $dataname property of the File component needs to be set to a two-column row variable: Column1 should be of type List, and column2 should be of type Character ($dataname should be set before the upload action is triggered). The value assigned to column2 should be the name of a task variable of Binary type which will receive the binary data when the upload is complete. Column1 will receive MIME header list information when the upload is complete.

Setting the Upload action

To trigger the upload dialog, you need to assign kJSFileActionUpload to the $action property. This action opens a file upload dialog which has two formats: one for recent web browsers, and the other for browsers which do not support XMLHttpRequest2, i.e. Internet Explorer and Opera. When a file has uploaded an evFileUploaded event is generated and the List and Binary task variable assigned to $dataname are populated. When the dialog closes the control generates evFileUploadDialogClosed.

The $maxfileuploadsize specifies the maximum size in bytes of a file to be uploaded to the server. Zero means no limit. Some clients (IE and Opera) cannot enforce this limit. See example below for details on how to upload a file.

While the Upload dialog is open, you can close it by assigning kJSFileActionCloseUpload to the $action property (note this does not generate evFileUploadDialogClosed).

On the upload dialog the file name is displayed above the progress bar, to the left, the percentage is shown above to the right, and file upload size information shown below as before. File sizes displayed to the user are in shown in the appropriate unit so when 1000 bytes is exceeded it changes to kB, 1000 kB changes to MB and 1000 MB changes to GB.

The $clearsfileselection property clears the last uploaded file. When set to true, the current file selection is cleared automatically after an upload has completed.

Upload File Type

The $uploadtypes property allows you to filter the file types that can be uploaded. The property accepts a comma-separated list of file extensions or MIME types, for example, the string '.png, .jpg, .jpeg' would allow PNG or JPG files, or 'image/*' to allow any image files.

Uploading Multiple Files

The File control allows multiple files to be selected for uploading by setting $allowmultiple to kTrue. It is not supported by some browsers, just like $maxfileuploadsize (IE9 and below, Opera).

The properties $maxbatchuploadsize and $maxbatchuploadsizeerrortext work similarly to $maxfileuploadsize to impose a limit of the total amount of data to be uploaded. This works independently of $maxfileuploadsize so you can impose a limit on single or multiple file uploads. In addition, $uploadedprogresstextbatch has been added to show the progress of the batch of files, and works similarly to $uploadprogresstext.

Error messages shown when file sizes are exceeded, for single or batches of files, give the user feedback on what the size limits are and lists the offending files exceeding the limit.

Multiple file upload dialogs display the same information for each single file, while another progress bar shows progress through the batch of files, including how many files have uploaded out of the total.

Using Timer and File controls

Note that if a Timer control is present on the page, timer events will not occur while a file upload dialog is open, or while file download is in progress.

Localization

All the text and labels in the File control can be translated via the jOmnisStrings object in the JavaScript client. See the main Localization section for more info.

Dropping Files

You can setup the File control to receive files that are dropped onto the File control to upload them. In this case, the input area is larger, and a generic progress spinner is displayed, which replaces the choose files icon while uploading. This may be useful if you wish to opt for a simpler interface by switching off the progress details (see $hideuploadprogress and $hideuploadprogressbatch below). In addition, you can use the file control as an upload area inline on the form, and files upload automatically instead of the end user having to click another button once the files have been chosen.

To allow files to be dropped the $showinline property must be set to true. If true, $hyperlinktext and $hyperlinkurl will be ignored, and kJSFileActionUpload assigned to $action (used to open the file dialog) will also be ignored. If $autoupload is true, no Upload button will be shown, and instead files will be uploaded as soon as they are chosen.

If $hideuploadprogress is true, the upload progress area is hidden. Plus $hideuploadprogressbatch allows you to hide the total batch upload progress area. The spinner is displayed if both upload progress areas are switched off.

The $uploadprogresstextcolor property is the color for the text in the progress elements.

Downloading Files

URL downloads

In its simplest form, the File control can provide a hyperlink to allow the end user to download a file located on the internet. In this case, you would set the $visible property of the control set to kTrue, set $hyperlinkurl to the URL of the file, and $hyperlinktext to the text for the hyperlink. The URL does not have to be a file download URL, it can be any file on the internet and will open in a new browser window or tab. The File control will display the download as a standard hyperlink on the remote form.

Single File downloads

You can also use the File control to download a file from a binary file or one stored in your database. To enable this functionality, you need to assign kJSFileActionDownload to the $action property. To download a single file, the $dataname property of the File control is set to a row variable, with Column1 as the file name, Column2 the media type (e.g. text/plain;charset=utf8), Column3 the name of a remote task variable which should be a binary containing the file data or character containing a file path, and Column4 is an 'Identifier' column (Character type) containing a name for the file.

Multiple File downloads

You can specify a list in $dataname, instead of a row, to provide a list of files to be downloaded. The definition of this list is identical to the row, with each line in the list representing each file to be downloaded. The optional fourth 'Identifier' column can contain a unique name for each file.

You can use the evDownloadSent event in the $event method for the File control to loop through the file list to download each file. This method is in the JS File example in the Samples section under the Hub.

# iFiles is defined in $construct with cols iFileName, iFileLen, iFileBinary
On evDownloadSent
  Do iFiles.$next(iFileLineRef,kTrue,kFalse) Returns iFileLineRef
  If iFileLineRef
    Do method downloadFile
  End If

The downloadFile method is:

Do iFiles.$loadcols()
Calculate tJSFileBinData as iFileBinary
Do iJSFileRow.$define(iJSFileName,iJSMediaType,iJSVariableName)
Do iJSFileRow.$assigncols(iFileName,'application/octet-stream','tJSFileBinData')
Do $cinst.$objs.JSFormFile.$action.$assign(kJSFileActionDownload) Returns #F

evDownloadSent Event

The evDownloadSent event indicates if the download was successful and identifies the file that was downloaded. The event receives two parameters:

• pSuccess
  Whether or not the download was successsfully sent.

• pIdentifier
  The value of the Identifier column (the fourth column, if provided) in the download list/row which was assigned to $dataname to initiate the download which has now been sent.

The evDownloadSent event will be triggered when the server has sent all of the data for a file to the client. Note that Omnis sends the data in a single chunk, so the client may still be processing the data at this point. However, at the point that the event is fired, the server has sent all of the data, and the task variable containing the binary data (or file path) can now be re-used.

Example

A File control is used in the jsContacts form in the Contacts sample app to allow end users to upload a photo of their contacts. The File control is placed somewhere on the form, its $dataname is set to iFileRow, an instance row variable, and the evFileUploaded and evFileUploadDialogClosed events are enabled in the $events property of the control. The iFileRow variable is setup in the $construct method of the form, as follows:

Do iFileRow.$define(MimeList,"Binary Variable")
Calculate iFileRow.C2 as "tData"

MimeList is a local list variable, and tData is a task variable of type Binary – it’s important to note that the second column of iFileRow is of type Character, and is set to the Name of the binary task variable. Elsewhere on the form is a picture control to display the photo, its $dataname is iPicture, and a button to allow the end user to select an image file and initiate the upload process. The code for the button is:

On evClick
  Do $cinst.$objs.fileControl.$action.$assign(kJSFileActionUpload)

This assigns the kJSFileActionUpload action to the fileControl object which opens the Browse/Upload dialog. The File control has an $event method which detects when a file has been uploaded and the upload dialog has been closed:

On evFileUploaded
  Calculate iPicture as tData
# transfer the pic data to iPicture
On evFileUploadDialogClosed
  Do method setPicBtnTitle (kHavePic) ## changes the button text

When an image is selected by the end user and the file is uploaded the image data is loaded into the tData task variable, as defined in the second column of the iFileRow row variable, which is then transferred to the iPicture variable assigned to the picture field on the form. The Save button saves the contact record including the image file uploaded by the user.

Floating Action Button

Group	Icon	Name	Description
Buttons		Floating Action Button	A round button that pops up a list of actions when tapped or hovered over

The Floating Action Button (FAB) component features a round button that pops up a list of actions when tapped or hovered over, with the first option being a default action. For example, in a form displaying a list of contacts, you could use a FAB to provide options to add a contact (the default action), with further options to edit, call, or email a contact.

The FAB is displayed as a circular button containing a ‘+’ icon prompting the end user to tap it or hover over it; the default icon can be replaced by setting $iconid of the button control. In its expanded state, the actions in the list appear to “float” on top of the other content in the form.

Defining the FAB data list

To create an expanded list of actions, the $dataname of the FAB can be assigned a list instance variable with the following columns:

There is an example application called JS Floating Action Button in the Samples section of the Hub in the Studio Browser which displays a FAB in the bottom right corner of a remote form. Each line represents an action with the first line, in this case Create, representing the main button in its expanded state.

In the FAB example, a list instance variable iList is assigned to $dataname of the control, which has 3 columns: Icon, ActionID, and Label. The following code is added to $construct of the form, which creates the options shown in the expanded button:

Do iList.$define(lIcon,lActionId,lLabel)
Do iList.$add(iconurl("create"),1,"Create")
Do iList.$add(iconurl("save"),2,"Save")
Do iList.$add(iconurl("content_copy"),3,"Copy")
Do iList.$add(iconurl("print"),4,"Print")
Do iList.$add(iconurl("download"),5,"Download")

Properties

The Floating Action Button has the following properties.

*In order to allow $modalbackcolor to be set on the client, the rgba() function can now be executed on the client, which allows you to set the color and alpha value of the property.

The following example FAB has the following properties set (and uses the ice JS theme):
$expandedappearance = kFabAppearanceHoveredLabels
$expandedlabelbackground = kTrue
$labelside = kFabLabelSideRight
$opendirection = kFabDirectionDown

Events

The Floating Action Button reports the evClick event, sent when the main button or an expanded action icon is clicked. The pActionId parameter contains the value of the clicked action as defined in the second column of the data list. If the main button was clicked in its default state, the value of pActionId is null.

Gauge Control

Group	Icon	Name	Description
Visualization		Gauge	Displays numerical values on a circular or linear scale

The Gauge component provides a way to display numerical values on a circular or linear scale, with options to customize the appearance and behavior. The Gauge control type can be Circular, Horizontal or Vertical.

There is an example application called JS Gauge in the Samples section of the Hub in the Studio Browser demonstrating the types of gauge available, including the Circular and Vertical gauge types, as shown:

A gauge consists of:

• A circular or linear scale with tick marks and labels that can be customized

• A needle or marker style pointer to indicate the current value

• A range or multiple ranges with customizable colors, widths and start/end points; the range is a colored band inside or outside (above or below) of the scale

• A display value showing the current value in a formattable string, so you can display units, for example

The current value shown on the gauge is stored in the $dataname, which is shown if $alwaysshowdisplayvalue is true, otherwise if false, the value is only shown when the end user hovers their pointer over the needle or marker, or the needle or marker is dragged to change its value. You can format the value by setting $displayvalue using a ‘sprintf’ formatted string. If the $clicktosetvalue property is true, the end user can change the value by clicking on the gauge, otherwise if false, the value can only be changed by dragging the pointer.

You can set the Scale and Range for the gauge control, including the start and end values (e.g. 0 to 100), the position of the start and end values (i.e. the angle in a circular gauge), as well as the colors and settings for the tick marks on the scale using various properties; see below for more details about the customizing the Scale and Range.

Properties

The following properties are available for the Gauge control (the range properties are shown after this table).

Events

The evValueChange event is triggered when the value is changed by the user clicking on the gauge area or dragging the pointer (needle or marker). The pNewValue parameter holds the new value.

Customizing the Scale and Range

The properties under the Range tab in the Property Manager control the range values and appearance.

To show how you can customize the scale and range for a gauge control, consider the following example that displays temperature values in the range 0 to 100.

The following properties have been set:

• On the General tab in the Property Manger, $scalevaluestart and $scalevalueend are set to 1 and 100, respectively.

• On the Appearance tab, $gaugetype is set to kJSGaugeTypeHorizontal, $displayvalue is set to %dC, $padding is set to 100-10 (100 at the top to display the customized range, 10 for each side), $rangeoffset is -2 (which provides a gap between the range and scale baseline), and $tickintervalmajor is set to 20.

You can customize the range on the Range tab in the Property Manager. The range is not shown by default, so to show a simple range you can set $rangecount to 1 and $rangevalueend to the same value as $scalevalueend, e.g. 100. However, to specify different colors and widths on the range, like the above example, you need to set $rangecount to 4 and specify each range in turn by setting $currentrange (a design property) from 1 to 4. The following property values are set for each range section:

In the example, the distinct colors for the ranges are blended automatically by setting $blendrangecolors to kTrue, providing a smooth gradation of colors.

You can experiment with the display properties to achieve the gauge appearance you want, including flipping the scale or range using the $opposeaxis and $opposeranges properties. For example, the circular gauge, shown below left, has $opposeaxis set to kTrue to display the scale and labels on the outside. For the gauge shown on the right, its scale and tick lines are hidden, the pointer type is set to marker (a small arrow), $markeroffset is set to the same value as the range width, while $scalevaluestart and $scalevalueend values are 270 and 90, respectively.

Html Link

Group	Icon	Name	Description
Navigation		Html Link	Control opens an external link or jumps to another control

The Html Link control lets you add an HTML link to your remote form, which would typically be a website or some other external resource outside your application. By default, the link will open in a new browser tab or window. You can also use the Link Control to jump to a specified control on the same Remote form or within a Subform.

External Links

The URL for an external link is assigned in the $linkurl property as a string. Alternatively, the URL can be assigned using an instance variable named in the $linkurlname property, which if specified will take precedence over $linkurl.

If $linkopensinnewtab is kTrue (the default) the link will open in a new browser tab or window, leaving the remote form open on the original tab or window. If $linkopensinnewtab is set to kFalse, the link will open in the current tab or window, which will take the browser focus away from the current remote form which could have unintended consequences, such as losing any unsaved data in the form.

The text for the link is entered into the $text property. Alternatively, you can assign text using an instance variable specified in the $dataname property, which if specified takes precedence over $text.

Internal Links

The Link Control can also be used to link to another control on the same Remote form, or within a Subform, which is analogous to a page anchor in HTML where the focus jumps to another place in the form. To link to a control on the same form, enter the name of the control in the $linkedobject property; if specified, this will take precedence over $linkurlname. A select box will appear as you start typing a control name into $linkedobject in the Property Manager. When the link is clicked, the form focus will jump to the specified control, scrolling the form if necessary.

To link to a control within a subform, enter the name of the subform followed by the name of the control separated by a dot. Controls within nested subforms can be chained using dot notation. For example, a label "label1" within subform "subformInner" within subform "subformOuter" can be accessed as: "subformOuter.subformInner.label1". Note that there is no select box help for linking to controls within subforms. When the link is clicked, the form focus will jump to the specified control inside the subform, scrolling the main form and subform if necessary.

Link Colors

The default colors for the different link states follow the HTML standard, that is, blue for unvisited, hovered, and focused links, purple for visited links and red for active links, but these can be overridden by setting the link color properties under the Text tab in the Property Manager, which are initially set to kColorDefault.

Property	Description
$linkactivecolor	The color of active links
$textcolor	The color of unvisited links
$linkvisitedcolor	The color of visited links
$linkhovercolor	The color of hovered and focused links

The default color of an unvisited link can be changed in the $textcolor property. If $linkhovercolor is set to kColorDefault, the hovered and focused states will use the same value as $textcolor.

The link underlining can be controlled using $linkisunderlined. In the hover and focus states underlining is removed by default.

Events

The Html Link Control reports the evClick event which needs to be enabled in the $events property.

Html Object

Group	Icon	Name	Description
Media		Html Object	Object to display HTML content

The Html Object lets you display an HTML page or fragment in a remote form, such as an HTML link or formatted paragraph. The $html property contains the HTML content for the control. There is an example app called JS HTML in the Samples section in the Hub in the Studio Browser, and the same app is available in the JavaScript Component Gallery.

The HTML content for the control must start with an element declaration such as <div...> or <style>. The $wraptext property is set to true by default meaning that the content in the control will wrap (set it to kFalse to stop wrapping): this property sets white-space for the control to 'normal' if true, and 'no-wrap' if false.

HTML Preview

The HTML control has a property, $showruntimepreview, which defaults to kTrue, which ensures the HTML is rendered in the remote form rather than showing the HTML code text. If $showruntimepreview is false, the HTML code text is shown, but it cannot be scrolled inside the control in the design window.

Custom JavaScript Controls (Deprecated)

Note: This technique using $ctrlname to add custom controls to a remote form is deprecated. You should instead use JSON-defined controls: see the JSON Components chapter.

You can use a custom JavaScript control on a remote form by embedding it in an HTML Object. To do this, the JavaScript file defining the custom control must be placed in the html/scripts folder and referenced in the HTML file containing your remote form (this can be added to the jsctempl.htm file or the specific HTML page containing your remote form). The name of the custom control class (as defined in its JavaScript file) must then be added to the $ctrlname property of the HTML Object.

If you want your custom control to inherit the HTML control's specific functionality (such as the use of $html and its placeholders feature), your custom control must inherit from ctrl_html, rather than ctrl_base (and do not override this.superclass, instead use a different variable to reference the ctrl_html immediate parent class).

HTML Examples

The example library (in the Samples section in the Hub in the Studio Browser) shows how you can use HTML to format text using tages and styles, and embed the content into a Remote form.

The same app contains a more complex example showing how you can format HTML for an email. In addition to the HTML example app, there are also two examples in the Samples section in the Hub (and in the Component Gallery) to display a Twitter button and a Twitter Timeline that use the HTML component to embed the necessary HTML into a remote form.

The following HTML is used to create the initial Twitter button:

<div><a href="https://twitter.com/intent/tweet?screen_name=omnisstudio&text=I love Omnis" class="twitter-mention-button" data-size="large">Tweet to @omnisstudio</a></div>

Building an HTML block

You can use the Text: or Sta: command to build up the HTML content. The following method constructs some HTML and assigns it to $html of an HTML control called HTML.

# lHTML is a local var of Character type
Begin statement
#  ===== Styles =====
Sta: <style>
Sta: p {color: #00F; margin: 0 2em; padding: 1em; background-color: #fff; border: #DDD solid 2px;}
Sta: h1, h2 { color: #666; margin-left: 0.5em;}
Sta: img {margin: 5px 0 5px 50px;}
Sta: </style
#  ===== Content =====
Sta: <div>
Sta: <h1>HTML Control</h1>
Sta: <p>
Sta: You can display HTML in the HTML con.<br />
Sta: This is the Second line of con.<br /><br />
Sta: <i>And you can do italic etc!</i>
Sta: </p>
Sta: <h2>Pictures</h2>
Sta: <p>You can embed pictures.</p>
Sta: <img src="/images/cat.jpg" width="200" height="176" alt="cat" />
Sta: </div>
End statement
Get statement lHTML
# the html form object is called HTML
Calculate $cinst.$objs.HTML.$html as lHTML

You can embed any of the standard HTML tags into the $html property, including links, styles, and tables. The following text could be added to an HTML control which is placed next to a check box control on a remote form to allow end users to popup a window containing competition rules that are stored in a static html page:

<p>I have read and agree to the <a href="rules.html" target="_blank">competition rules</a></p>

Events

The HTML Control reports the evBefore and evAfter events, as well as evClick and evDoubleClick.

Style and Attribute Placeholders

You can inherit the effects and font attributes that you set for the HTML object in the Property Manager in design mode by inserting various placeholders in the $html property. The placeholders take the format %<letter>, for example, insert %f to inherit the font specified in $font, or %t to inherit the text color set in $textcolor. Most of the placeholders should be inserted into an html element using the style tag, while others are attributes and can be inserted directly into an HTML element.

For example, you can set $html to <div %e></div> and the text in the control will take on the effect from $effect (or $linestyle or $bordercolor, as these are effect properties).

To use the font specified in the HTML object in a paragraph in your HTML insert: <div><p style="%f">SOME TEXT</p></div>. For example, the following HTML produces some text rendered in plain or default HTML paragraph style and second paragraph of text that uses the font setting specified in $font in the HTML object, which in this case is set to “Verdana,Arial,Helvetica,Sans-serif”:

<div><p>PLAIN TEXT</p><p style="%f”>STYLED TEXT</p></div>

HTML object in Paged Panes and Subforms

If the HTML object appears in a Paged Pane or Subform (i.e. inside any container field), you will need to add the “white-space:normal” parameter to the <div> tag containing your Html to allow the text to wrap correctly inside the object. For example, the following <div> tag will contain text etc within a 300px width:

<div style="width:300px; white-space:normal">
# your HTML
</div>

Hyperlink Control

Group	Icon	Name	Description
Navigation		Hyperlink	List containing hyperlink style options

The Hyperlink Control allows you to present a list of options to the end user, where each option in the list is displayed as a web-style hyperlink; each link option corresponds to a line in the underlying list variable used to populate the list. If the whole list does not fit inside the control, the list will “pop up” when the end user passes the mouse over the control. The $extraspace property specifies extra spacing between links. The Hyperlink control is used in the Studio Browser and is very similar to the JavaScript version of the control.

The options or list contents in the Hyperlink control are based on the contents of a list variable specified in $dataname. The first column in the list should be the text displayed for each option listed in the control, unless $listcolumn is specified which is the column of the list variable used to populate the control. Subsequent columns in the list can be used to specify other values.

When the end user clicks on the list an evClick is triggered with the selected line reported in pLineNumber. You can use the value of pLineNumber in your event method to trigger an action. You can create an empty line by putting ”-“ (hyphen) in the first column.

If $isvertical is kTrue the list pops up vertically, and if $shouldunderline is kTrue the links are underlined. The $selectedtextcolor property specifies the color of the text when the mouse is over it.

Example

There is an example library called JS Hyperlink in the Samples section in the Hub in the Studio Browser showing how you can build a dynamic hierarchical list using the Hyperlink control; the same app is available in the JavaScript Component Gallery.

The following method is the $event() method for the Hyperlink control:

# iHyperLinks is a List var defined in the construct of the form as
# Do iHyperLinks.$define(iHyperName,iHyperGrp,iHyperCmd)
On evClick
  Do iHyperLinks.$line.$assign(pLineNumber)
  Do iHyperLinks.$loadcols()

  If iHyperGrp=0
    Do method getHyperLinks (iHyperCmd)
  Else
    If iHyperCmd=99
      Do method getHyperLinks (0)
    Else
      Calculate iMsg as con('HyperLink ',iHyperCmd,' of Group ',pick(iHyperGrp,'','A','B','C','D'),' Clicked')
    End If
  End If

Label Object

Group	Icon	Name	Description
Labels		Label Object	Basic label object

The Label Object lets you add standard text labels to your remote form. The text for the label is entered into the $text property in the Property Manager, or you can double-click on the text for the label to edit it. Alternatively, you can assign some text to the $text property in your code.

The font and alignment of the label is setup under the Text tab in the Property Manager. You can use the style() function to style parts of the text assigned to $text, for example:

Calculate $cinst.$objs.label1.$text as con('Mellow ',style(kEscColor,kYellow),"Yellow")

Styled text is only supported if $textishtml is false. When set to true, the $textishtml property means the text in $text is interpreted as HTML, so in this case you can use any HTML tags and styling to format the text. For example:

Calculate $cinst.$objs.labelhtml1.$text as 'This is <span style="color:#ff0000;">RED</span>'

Labels have the $dataname property which means you can assign the text from a variable. In this case, the value in $dataname overrides the value in the $text property, and actually sets $text. You can assign a Date variable to $dataname, in which case the label takes its display format from #FDT, #FD, or #FT depending on whether the variable has a date/time component.

List Control

Group	Icon	Name	Description
Lists		List	Standard list field for displaying list variable data

The standard List Control allows you to display a single column list on your remote form allowing end users to select a particular line; the following screen shows a simple product list using the ‘ice’ JS Theme.

If the $ischecklist property is kTrue in the standard List control, each list line has a checkbox which allows the end user to select or de-select the line, which is useful for multi-select lists or checklists.

There are several example apps showing different types of list control in the Samples section in the Hub in the Studio Browser (see JS List, JS Linked List, JS List Pager), and the same apps are available in the JavaScript Component Gallery.

For lists with many columns, you may prefer to use a Data Grid Control, or for a more compact single-column list you can use a Droplist Control. If you want to include an icon next to the text in each list line you can use a Tree List Control by including your data and icon references at the top-level of the list data without using any child data. For a further alternative to the standard List box, you can use the Native List to display list data but with a native appearance on each OS.

List data variable

The contents of a standard List is taken from the instance variable (of List type) specified in the $dataname of the control. In this case, the first column of the list contents is used to populate the list control; you can specify an alternative column for the data in $listcolumn. You can build the list using an instance variable of List type in the $construct method of the remote form so it is available to all instances; the list can be built from your database or from a number of static values.

The JS List example app in the Hub uses a simple check list ($ischecklist = kTrue) and a standard List control; the check list is built in the $construct method of the form, as follows:

## iCheckList: instance var of List type
Do iCheckList.$define(iCheckListValue)  ## defines the list
Do iCheckList.$add('Milk')              ## add the values
Do iCheckList.$add('Tea')
Do iCheckList.$add('Coffee')
Do iCheckList.$add('Sugar')
Do iCheckList.$sort(iCheckListValue)    ## sorts the list
# in addition you can select a line if required
Do iListvar.$line.$assign(1)            ## selects the first line

The example app provides a button to merge the selected lines in the check list into the other list. The code behind the button is:

On evClick
  Do iList.$merge(iCheckList,kFalse,kTrue,kTrue)
  # merges the selected lines only

See the ‘Programming Lists’ chapter in the Omnis Programming manual for more information about using list variables in your code.

Selected Line Color

You can control the color for selected lines by setting $selectedlinecolor; use kColorDefault for the default selected line color for the client OS, or the current JS theme. The $evenrowcolor property sets the background color of even numbered rows displayed in the list; kColorDefault means use the same color as the odd numbered rows ($backcolor).

List Events

When the user selects a line the evClick event is reported with the pLineNumber parameter reporting the selected line number. You can also set the evDoubleClick event for a list control to detect when the end user double clicks on a list line. List events will retuen the pLineNumber parameter containing the number of the line clicked, and you can use this in your event method behind the list to trigger an action.

A double-click event is sent to a List control if the Enter or Space key is pressed while the focus is in the List and if evDoubleClick is enabled on the list. Otherwise, if the control has an evClick event enabled, Enter/Space sends an evClick. If the control does not have the evClick or evDoubleClick enabled, then Enter triggers the okkeyobject (if there is one), as long as the state of the list has not changed, i.e. the current line has not changed, and no checkbox has been toggled.

Lists and Client Methods

Searching Lists

You need to prefix the column name with $ref for a search to work in a client method. For example:

Do iList.$search($ref.iCol="ABC")

Smart Lists and the JavaScript Client

The JavaScript Client does not support smart lists in client executed methods, insofar as if you change the list in some way on the client, it will no longer be a smart list when the updated data is sent from the client back to the server. Smart lists work as expected in server executed methods.

List Scrolling

Lists have the $vscroll and $hscroll properties which allow you to scroll a list vertically or horizontally at runtime in the client browser; note these properties are write-only meaning that you cannot return their values at runtime. The vertical or horizontal scroll value assigned using $vscroll or $hscroll is the row number for a list.

Changing Current Line from the Keyboard

The $keyboardchangesline property determines whether or not the the current line in the list changes when the end user navigates the list using the keyboard; the property is available in the standard JS List, Native lists, Tree lists, and Data grids, and only takes effect when $multipleselect is kTrue. This allows multiple rows to be selected while also having the keyboard change the current line. To enable users to select non-adjacent lines with the keyboard, $keyboardchangesline can be set to kFalse.

When the list only allows a single line to be selected ($multipleselect is kFalse), navigating the list with the keyboard always uses a focus line and the user has to manually select a current line with the Space or Enter key, at which point evClick is fired.

Linked Lists

You can link a List control to an Entry field to create a "Linked List", so that when the end user types into the edit field the contents of the list is updated dynamically. There is an example app called JS Linked List in the Samples section in the Hub in the Studio Browser to show the use of a Linked list; the same app is available in the JavaScript Component Gallery.

The combination of an Entry field with key presses enabled and a List control allow you to create a dynamic list that has the ability to update in response to what the end user types into the edit box. A Linked List is in effect like a Combo box, but with the extra ability to update itself as the user types. To enable this feature, edit controls can detect certain key presses and can be linked to a list control, while for lists themselves there is a property to display selected lines only.

Creating a Linked List

The Edit Control has the $linkedobject property which is the name of a list control on the current remote form used to display suggestions to the user if the Entry field enables the evKeyPress event. You need to add the code to populate the list in response to evKeyPress, based on the current value of the instance variable specified for the Entry field.

When the end user types into the Entry field, the linked list will appear automatically. It is not necessary to process any events for the list control, since the dynamic list behavior is determined automatically by being linked in this way. Therefore, you would expect the following to happen when end users are using a dynamic linked list:

• Clicking on a line in the open list will set the edit control to the value of the clicked line.

• Pressing up or down arrow when the focus is on the list control will set the value of the edit control to the new current line of the list.

• Pressing the down or up arrow when the edit control has the focus and when the list is not visible will open the list, set the edit control value to the selected line in the list, and move focus to the list.

• Typing into the edit control when the list is closed will open the list and keep focus on the edit control.

• All the following will close the list: pressing return when the list has focus; pressing escape, or clicking away from the list or the edit control.

Optimizing the Linked List

The list property $selectedlinesonly specifies that only the selected lines in a list will be displayed (this only applies when $ischecklist is false), which in the context of Linked lists allows you to filter the content of a list that is linked to an Entry field. You should optimize the $event method for the edit control in the following way:

• Make the $event method for the Entry field execute on the client.

• On evKeyPress, if the list of suggestions is empty (or no longer suitable for the data), call a server method to build the list (with lines selected based on the value of the edit control).

• In subsequent evKeyPress events that can use the pre-built list, perform a list $search to change the selected lines to the ones which are suitable for the new value of the edit control.

In this way, the list of suggestions is cached on the client, and updates simply by changing the selected lines with a search in your code.

When $selectedlinesonly is true, the processing involving the usual click events and so on all use the line number of the data in the list, not the lines displayed in the list.

Note that if you use the $evenrowcolor property when $selectedlinesonly is true, the even row color applies to the numbers obtained by counting the displayed lines, rather than using the line numbers of the data in the list.

Detecting Key Presses

Entry fields have an event called evKeyPress (the Key press detection was added to support Linked Lists, but it could be used by itself for other purposes). The evKeyPress event has a single event parameter, pKeyList, which is a three column list containing the keys entered since the last evKeyPress event (or since typing started) with a row for each key in the order the keys were pressed.

Each key in the list is either a data character or one of a limited set of system keys (note that not all keyboard keys are supported, such as function keys are not supported). Transitions in shift state, ctrl state, and so on, do not result in a key in the list, so if the user types Shift+a, the character in the list will be A. The supported system keys are:

• Backspace

• Tab

• Escape

• Insert and Delete

• Up, Down, Left, and Right arrow key

• Page Up and Page Down

• Home and End

• Return

The columns in the list are as follows:

• Colum 1: If the key is a system key, column 1 is the keyboard constant value representing the key, such as kEscape. Otherwise column 1 is #NULL.

• Colum 2: If the key is a data key, column 2 is the character data for the key. Otherwise column 1 is #NULL.

• Colum 3: Is the sum of the following keyboard modifier constants, representing the state of these modifiers at the point the key was added to the list: kJSModShift, kJSModCtrl, kJSModAltOrOption, kJSModCmd.

In addition, there are some properties which control when evKeyPress events are generated.

If true, the $systemkeys property specifies that evKeyPress events include system keys which do not change the value of the data. If false, only system keys such as backspace are included as they potentially change the data.

While the user is typing, the edit control in the user interface remains enabled (unlike normal event processing where the entire user interface is usually disabled). The value of the instance variable associated with the edit control reflects the current content of the entry field when evKeyPress is generated.

The following method is the $event() method for the Edit field linked to a list of names (from the example app in the Hub):

On evKeyPress
  Calculate iKeyList as pKeyList
  Do iLinkedList.$search(mid(low(iLinkedListCol),1,len(iEditVar))=low(iEditVar))

Detecting clicks on the list

You can capture the value returned from the linked list by detecting the evClick event in the $event method of the list. For example, you could override the value that is being returned from the linked list to the edit control using the following code in the $event method of the list:

On evClick
  Calculate iEditVar as con(iLinkedList.iLinkedListCol,' selected')

List Pager

The $pagesize property allows you to display the lines in a list or data grid as separate pages, to improve the user experience when navigating lists or grids with a large number of lines; the default value is zero which means no list pager is displayed. The $pagesize property is available for the JS List, Data Grid, Complex Grid, and Native List (when not using grouped lists). There is an example app showing the List pager for all these list types in the Samples section in the Hub in the Studio Browser.

When assigned an integer value, the $pagesize property forces the contents of the list or grid to be sub-divided into a number of scrollable pages, and a set of page number buttons (as well as forward and back buttons) are displayed under the list or grid box, which allows the end user to “page through” each group of lines in the list or grid.

The value assigned to $pagesize specifies the number of list lines displayed in each page, and therefore the total number of lines in the list, divided by the value of $pagesize determines the number of pages in the list or grid field, as well as the number of buttons displayed in the pager panel. The $pagerpage property allows you to set the page to be displayed, with the first page as the default.

Note that setting $pagesize does not reduce the amount of data sent to or fetched from the server – the full list data is sent to the client, and the setting of $pagesize is only used for displaying the list or grid with the pager element.

Changing the Pager’s Appearance

The appearance of the pager, such as the color of the buttons, numbers, and arrows, cannot be controlled using standard component properties. However, if you wish to customize the appearance of the pager, you can do so by overriding the associated CSS classes. These classes are named ‘omnis-pager<-xxx>’ and are listed in the core.css file. Note that this file is minified, so you may want to use a prettifier tool to make it more human-legible. Do not edit the classes in core.css, rather you should override the classes by adding your own version in the user.css file found in the html\css folder in your Omnis development tree.

Map Control

Group	Icon	Name	Description
Other		Map	Displays a Google map for specified location(s)

The Map Control allows you to place a Google Map^® on your remote form; this provides many of the functions available in a Google map as provided by the Google Maps API, such as placing your own markers or customizing the markers.

There is an example app called JS Map in the Samples section in the Hub in the Studio Browser showing the full capability of the Map control; the same app is available in the JavaScript Component Gallery which you can view online, to see many of its capabilities, but you will need a Google API key to run the example app in development mode.

The JS Map sample app prompts you to enter a Google Map API key when it is opened. The Map API key you enter is stored in the "mapsApiKey" entry in "jsclient" section of config.json and is loaded each time the sample app is opened. When you deploy your app you can add your Map API key to config.json on the Omnis Server.

The Map control has the standard properties to control its appearance including $edgefloat, for example, so you can fit the map to the current client area or container, as well as $borderradius allowing you to set a border radius.

Activation and API Key

In order to use the Map control, you need to register with Google Cloud Platform to obtain a Map API key, which can be entered in the $apikey property of the Omnis Map control; the Map control will not work without the API key. Specifically, you need to:

• Create and activate a Google Cloud Platform account (a free trial is available with credits)

• In the console under Credentials, create a new API key; copy this API key and add it to the $apikey property of the Omnis Map control in your remote form

• Under APIs, navigate to Map APIs and enable the “Maps JavaScript API”. In addition, if you want to use the Geocode function, you need to enable “Geocoding API” (there are other APIs which you may be able to use).

Important Note: By signing up to Google Maps API via the Google Cloud Platform and using Google Maps in your deployed Omnis application, you and your end users must agree to the general “Terms of Use” for Google Maps: there is a link to these Terms of use on the map displayed in the Map control. Omnis Software cannot be held responsible for any third-party products or services and will not be liable for any damage or loss resulting from your use of the Google Maps content or the products.

Apart from the $apikey property, there is no further configuration needed to display a basic Google map in your remote form, however, to make the map useful you will probably want to display specific locations, add markers on the map, or allow end users to interact with the map: all of these are possible with the JS Map control and are described below.

Map Location and Zoom Level

The $latlong property allows you to specify the center location of the map as “latitude:longitude”, for example, a value of 40.749305:-73.985775 will center the map on New York. If you do not set $latlong initially (by setting the property in the Property Manager in design mode or in the $construct method of the form), the map will open at some unspecified location, usually the default location setup in Google on the client device.

The $::zoom property lets you set the zoom level of the map: the range is 0 to 21, with zero showing the largest area (the whole world) and 21 the smallest possible area. The default zoom level is 8 which shows a reasonable amount of detail for the current center location of the map.

Finding the Latitude:Longitude

The Map component supports Google Geocoding which allows you to convert a street address into a geographic coordinate like latitude and longitude, which you can use to place a marker on a map, or center the map.

To use the Geocoding function, you need to access the Geocoding API which itself requires a separate API Key, in addition to the Maps API key, which you can obtain from Google.

A Search button has been added to the JS Map example available in the Hub to show how you can convert a street address to a latitude:longitude coordinate which can be applied to the $latlong map property. Note the example app places the Geocoding API key in the $userinfo property which is then sent to Google.

Alternatively, you can find the latitude:longitude coordinate manually. To do this, Right-click somewhere on a standard browser-based Google map (not the Omnis map control), select the ‘What’s here’ option and the latitude:longitude value of that position is shown on the popup. You need to replace the comma with a colon to be used as a parameter in Omnis, e.g. 52.223460:1.492379.

Map Type and Controls

The $maptype property lets you set the type of map – this can be set to a constant: kJSMapTypeRoad (default), kJSMapTypeSatellite, kJSMapTypeHybrid, and kJSMapTypeTerrain. The end user can change the map type using the map type control shown on the map, assuming the $maptypecontrol property is enabled.

The other standard map controls, including the pan control, scale control, and the street view control are enabled using the properties $pancontrol, $scalecontrol, and $streetviewcontrol, respectively (these are all enabled by default): note you can only change these properties at runtime if the map control itself is enabled ($enable = kTrue).

The zoom control can be further controlled by setting the $zoomcontrol property: it can be set to kJSMapZoomOff, kJSMapZoomDefault (the default), kJSMapZoomSmall, and kJSMapZoomLarge. The latter two settings correspond to a simple Plus|Minus button (Small) or the same button with a vertical slider control (Large) for finer adjustment of the map zoom level.

Map Markers

You can place a marker or set of markers on the map by assigning a row or list containing marker information to the $mapmarkers property. For each marker you must define the latitude and longitude of the marker location in the first column of the setup list in the format latitude:longitude (e.g. “40.749305:-73.985775”), and in subsequent columns you can specify the marker title (shown when you hover over the marker), the tag or title for the popup (shown when you click on the marker), and html content for the popup. An optional fifth parameter can specify an icon for the marker to replace the default map marker (see below). If the third and fourth columns are empty for any marker defined in the list, the marker will not popup when clicked. (See the Events section about how to add markers via user clicks.)

The following code adds markers to a map indicating the Empire State Building and Central Park in New York, it then centers the map on the Empire State Building, and sets a zoom level of 12 which shows a reasonable level of detail in this case:

# create vars map_markers (List), marker_latlong, marker_title,
# marker_tag, marker_html (Chars)
Do map_markers.$define(marker_latlong,marker_title,marker_tag,marker_html)
Do map_markers.$add("40.749305:-73.985775","Empire State Building","Empire State Building",>"<div id='content'><h3 id='firstHeading'>Empire State Building</h3><div id='bodyContent'><p><b><img src='http://nyc-architecture.com/MID/esb1.jpg'></b></p></div></div>")
Do map_markers.$add("40.766225:-73.972514","Central Park","NY Central Park","<div id='content'><h3 id='firstHeading'>Central Park</h3><div id='bodyContent'><p><b>Central Park Info</b></p></div></div>")
Do $cinst.$objs.map.$mapmarkers.$assign("map_markers")
Do $cinst.$objs.map.$latlong.$assign("40.749305:-73.985775")
Do $cinst.$objs.map.$::zoom.$assign(12)

Map Marker Icons

The marker list assigned to $mapmarkers can have an optional fifth column which you can use to specify the icon URL for an image for the map marker. An empty string in this column (or a missing column altogether) means that the marker will use the default marker icon. You can use an SVG icon for a map marker in which case it will scale as the map is scaled.

The value for the marker icon is an icon URL which you set using the iconurl() function. Since the marker image has to be set for each row in your list you can specify a different image for each marker in the marker list, but if you want the same image for each map marker you have to set the marker image for every row in your marker list.

When an SVG icon is used, you can add an additional column to the list to specify the color to apply to that SVG icon, which must be themed using the JS Themer tool. The color should either be a JS Theme constant, such as kJSThemeColorPrimary, or an RGB integer.

Custom Markers

You can assign an alternative marker icon or symbol, including map markers from the Google maps API, by adding a sixth column to the marker list: in this case the fifth column should be omitted.

The definition for the markers list in the JavaScript Map control can be:

Do iMapMarkers.$define(iMarkerLatLong, iMarkerTitle, iMarkerTag, iMarkerHtml, iMarkerIcon, iMarkerCustom)

where iMarkerCustom is a new string column (column 6) specifying a custom marker. When a marker is defined in the marker list, and the iMarkerIcon (column 5) is empty, iMarkerCustom can be included with the following attributes, separated with a ‘|’ character (you only need to specify the attributes required). An example custom string would be:

"path:google.maps.SymbolPath.BACKWARD_CLOSED_ARROW | fillColor: red | fillOpacity:0.8 | scale: 4 | strokeColor:black | strokeWeight: 1"

Or to draw a five-pointed star marker:

"path:M 125,5 155,90 245,90 175,145 200,230 125,180 50,230 75,145 5,90 95,90 z | fillColor: red |
fillOpacity:0.8 |  scale: 0.1|strokeColor:black | strokeWeight: 1 | anchor:122,115"

Or to draw a circle marker:

"path:google.maps.SymbolPath.CIRCLE | fillColor: red | fillOpacity:0.8 | scale: 4"

Where the custom marker parameters are defined as:

• path can either be a map symbol, or an SVG notation path, as defined below

• fillColor the color used to fill the marker object, an html css color name or value e.g. #FF0000

• fillOpacity the opacity of the fill color, a value from 0 to 1, e.g. 0.5 is 50% transparent fill

• scale a scaling factor for the object

• strokeColor the color used to outline the object, an html css color name or value e.g. #FF0000

• strokeWeight the thickness of the stroke line

• anchor allows you to set the anchor position or offset the shape. By default, shapes are aligned to the top left of the marker relative to its lat:long

Marker Symbol	Name – prefixed google.maps.SymbolPath.	Description
	CIRCLE	A circle
	BACKWARD_CLOSED_ARROW	A backward-pointing arrow that is closed on all sides
	FORWARD_CLOSED_ARROW	A forward-pointing arrow that is closed on all sides
	BACKWARD_OPEN_ARROW	A backward-pointing arrow that is open on one side
	FORWARD_OPEN_ARROW	A forward-pointing arrow that is open on one side

For example:

Do iMapMarkers.$define(iMarkerLatLong,iMarkerTitle,iMarkerTag,iMarkerHtml, ,iMarkerCustom)
Do iMapMarkers.$add("52.223460:1.492379","Omnis UK","Omnis UK","","","path:google.maps.SymbolPath.BACKWARD_CLOSED_ARROW|fillColor: red|fillOpacity:0.8| scale: 8|strokeColor:black|strokeWeight: 1")
# the JS Map app uses similar code to show the Omnis offices

The Map example app includes the use of markers and polygons, and is available in the JavaScript Component Gallery. The following image shows the location of the European Omnis offices using the “Backward-pointing Closed Arrow”.

The map control has a property $fitmaptomarkers that can be assigned value 1 at runtime to force the map to zoom in or out to allow all the map markers to be shown.

Polygon Objects

In addition to icons and standard map markers, you can add polygon objects or irregular shapes to maps in the JavaScript Map control. The $mappolys property specifies the data name of a list which contains the definition of each polygon or shape as follows:

Do iPolyMarkers.$define(iPolyLatLong,iPolyStroke,iPolyOpacity,iPolyWeight,iPolyFill,iPolyFillOpacity,iPolyTag)

• iPolyLatLong the latitude:longitude values for each of the the points of the polygon, so a triangle would have 3 points: the lat:long settings are separated with the ‘|’ character, e.g. 25.774,-80.190|18.466,-66.118|32.321,-64.757|25.774,-80.190

• iPolyStroke the color used to outline the polygon, which is an html css color name or value e.g. #FF0000

• iPolyOpacity the opacity of the stroke color, a value from 0 to 1, e.g. 0.5 is 50% transparent

• iPolyWeight the thickness of the stroke line

• iPolyFill the fill color of the polygon object, an html css color name or value e.g. #FF0000

• iPolyFillOpacity the opacity of the fill color, a value from 0 to 1, e.g. 0.5 is 50% transparent

• iPolyTag the tag name or label for the polygon, which is sent to the evPolygonClicked event method in pPoly

For example, the following code draws the Bermuda Triangle on the map (see the JS Map example app):

Do iPolyMarkers.$add("25.774,-80.190|18.466,-66.118|32.321,-64.757|25.774,-80.190","#FF0000","0.8","3","#FF0000","0.35","Bermuda Triangle")

The evPolygonClicked event with the parameter pPoly is called when a polygon on the map is clicked, and pPoly will be set to the polygon tag as defined in the list.

Events

There are various events available in the map control to allow you to detect when and where the map was clicked (evMapClicked, reports latitude and longitude of the click), when the map is dragged by the end user (evMapMoved, reports the latitude and longitude of the new center location), when the map is zoomed using the zoom control (evMapZoomed), or when a map marker is clicked (evMarkerClicked). None of these events are enabled by default, so you have to enable them in the $events property for the control using the Property Manager.

The following $event method could be placed behind a map control to detect when the map is clicked, or when a marker is clicked (assuming a marker has been added), or if the map is moved or zoomed. The add_markers Boolean variable is linked to a checkbox on the window to allow the end user to enable or disable the ability to add markers. When the map is clicked, the evMapClicked event reports the position in pLatlong, and a marker definition is added to the map_markers list. The message variable is assigned to a field on the form to show either the new center of the map, the new zoom level, or which marker has been clicked.

# $event method for map control
# define vars map_markers (List), marker_latlong, marker_title,
# marker_tag, marker_html, message (Chars), add_markers (Bool),
# marker_no (Long int = 0)
On evMapClicked
  If add_markers  ## linked to checkbox on window
    Calculate marker_no as marker_no+1
    Do map_markers.$define(marker_latlong,marker_title,marker_tag,marker_html)
    Do map_markers.$add(pLatlong,con("Marker ",marker_no),con("Marker ",marker_no),con("This is marker ",marker_no))
    Do $cinst.$objs.map.$mapmarkers.$assign("map_markers")
  End If
  Calculate message as con(pick(add_markers,"Map clicked here: ","Marker added here: "),pLatlong)
On evMapMoved
  Calculate message as con("Center is now: ",pNewCenter)
On evMapZoomed
  Calculate message as con("New zoom level: ",pNewZoom)
On evMarkerClicked
  Calculate message as con("Marker clicked: ",pMarker)

Markdown Object

Group	Icon	Name	Description
Media		Markdown Object	Object to display Markdown content

The Markdown Object allows you to render markdown content in a remote form. The markdown content should be loaded into a character instance variable which is specified in the $dataname property. There is an example app called JS Markdown in the Samples section in the Hub in the Studio Browser showing how markdown can be rendered in a remote form.

Markdown Syntax Support

The Markdown Object supports the Basic markdown syntax elements, including headings, italics, bold text, blockquotes, lists, tables, images, links, horizontal rules and code. Note that most Extended syntax elements are not supported. For further information on the Markdown language, including how markdown elements are structured, see the Markdown Guide.

All the Basic markdown syntax elements are supported, as per the Markdown Guide cheat sheet, together with the following Extended elements: Heading ids (custom ids), Tables, Fenced code blocks and Strikethrough.

Extended syntax elements that are not supported include: Footnotes, Definition Lists, Emoji shortcodes, Highlight, Subscript, and Superscript. Tasklists (checkbox lists) will be parsed as defined in the markdown, but cannot be toggled on and off in the Markdown object.

Building the Markdown Block

Markdown content can be constructed as a text block using the Begin text block and End text block commands, and using the Line: command to create each line of markdown content. For example:

Begin text block
Line:# A **Markdown** example
Line:
Line:An unordered List:
Line:- item 1
Line:- item 2
Line:- item 3
End text block
Get text block iMarkdown

If you are using square brackets in an Omnis text block to create certain elements in the markdown content (such as links, see below), you need to include two opening square brackets to stop Omnis trying to evaluate the contents. You can examine the getMarkdown method in the sample app in the Hub to see how markdown content can be built up and for examples of the supported syntax elements.

Blockquotes can be added by starting a line with “>”. Blockquotes are distinguished from normal text by indentation and by background color.

Horizontal ruling lines can be drawn using three or more asterisks (***), hyphens (---), or underscores (___).

Hyperlinks

In basic markdown, hyperlinks are denoted by the link text in square brackets followed by the URL in parentheses: [link-text](url.com), however, to be recognized in Omnis block text you must use two open square brackets to start the link text. For example, use the following to define a link: [[Omnis](https://www.omnis.net).

Links to local elements in the same page will open in the same browser tab or window, whereas external links will open in a new browser tab or window.

Code blocks

Code blocks can be added to Markdown content by enclosing multi-line text in three backticks ```Content``` (backtick can be found above the Tab key on a Windows keyboard, or next to the Shift key on a mac). For example:

Line:```
Line:{
Line: "firstName": "John",
Line: "lastName": "Smith",
Line: "age": 25,
Line: "code": "This is a short piece of code"
Line:}
Line:```

The display style used for code blocks is the default code highlighting on a dark background, which is specified in the highlight-theme.css file (the same styling rules are used in the Rich Text Editor control).

Inline code can be added to markdown content by enclosing text in single backticks.

Properties

The Markdown Object has the following properties to change the appearance of rendered markdown elements:

Property	Description
$headingcolor	The text color of all headings
$imagemaxheight	The maximum height of images: 0 means no maximum height
$imagemaxwidth	The maximum width of images: 0 means no maximum width
$inlinecodebackcolor	The background color of inline code
$inlinecodetextcolor	The text color of inline code
$linkcolor	The color of link text
$linkvisitedcolor	The color of visited links
$quotebackcolor	The background color of blockquotes
$quotetextcolor	The color of blockquote text
$rulecolor	The color of horizontal rules
$tablebordercolor	The color of table borders
$tablemaxwidth	The maximum width of tables: 0 means no maximum width
$tableminwidth	The minimum width of tables: 0 means no maximum width

In addition to the above properties, the Markdown Object has various standard properties that you can use to change the appearance of some elements, including: $textcolor, $backcolor, $fontsize, $vertpadding and $horzpadding (the padding properties set the padding around the whole markdown content block).

Events

The evLinkClick event is triggered when the user clicks on a link. The pLinkUrl parameter holds the url of the clicked link, and the pLinkText parameter holds the text associated with the link. The default event behavior can be overridden in your event method using Quit event handler (Discard event).
